フェムト秒レーザ
ORIGAMI XPSは、容易かつコスト効率の高い装置組み込みを実現するように設計されています。取り外し可能なハンドルを備え、完全なリモート制御機能を提供します。シンプルなスルーホール取り付け構造と高精度な機械的基準面により、容易なドロップイン設置を実現します。
一体化されたシステム設計により、クリーンな超短パルス幅、優れたビーム品質、そしてこれまでにない卓越したビームポインティング安定性を実現します。
本製品は、医療機器製造および超高精度マイクロマシニング用途において、新たなスタンダードとなるオールインワン型フェムト秒レーザです。
ORIGAMI XPSは、様々なガルバノスキャナと組み合わせて使用することができます。広く使用されている3種類のスキャナ制御ボードに対応したセットアップを構築しています。
信頼性の高い当社の周波数変換モジュールを追加することで、UV、グリーン、およびIRの最大3つの出力を得ることが可能です。
| ORIGAMI 10 XP | ORIGAMI 10 XPS | ORIGAMI 10 XPS Tunable pulse | |
| 中心波長 | 1030 nm | ||
| パルス幅 | < 370 fs | < 370 fs | < 370 fs ~ 5 ps |
| 平均光出力 | > 4 W | > 5 W | > 5 W |
| パルスエネルギー | 40 μJ | 70 μJ | 70 μJ |
| ピーク出力 | > 80 MW | > 150 MW | > 150 MW |
| スペクトル帯域幅 | < 7.5 nm | ||
| 繰り返し周波数 | シングルショット 〜 1 MHz | ||
| ビーム品質、TEM00 | M² < 1.2 | ||
| PER | > 22 dB (垂直方向) | ||
| 出力安定性 (12時間、一定温度) | < 1 % rms | ||
| 楕円率 | < 1.1 | ||
| パルス間安定性 | < 1 % rms | ||
| ポインティング安定性 (12時間、一定温度) | < 30 μrad rms | ||
| ポインティング安定性 (18 ℃ ~ 28 ℃) | < 15 μrad/℃ | ||
| ビーム出射方式 | 空間出力、コリメート | ||
| ORIGAMI 10 XP | ORIGAMI 10 XPS | ORIGAMI 10 XPS Tunable pulse | |
| ウォームアップ時間 (ウォームスタート) | < 10 分 | ||
| ウォームアップ時間 (コールドスタート) | < 30 分 | ||
| 動作温度 | 18 ℃ ~ 28 ℃ | ||
| 保存温度 | -20 ℃ ~ 55 ℃ | ||

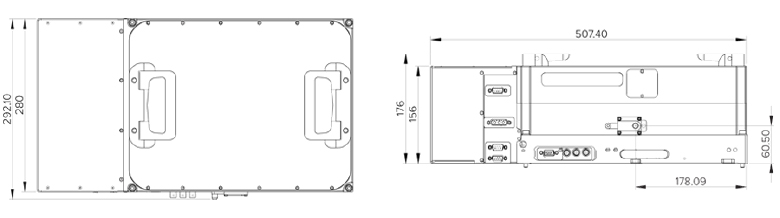

| レーザーヘッド寸法 ( W × H × L) | 508 mm × 176 mm × 292 mm | ||
| 電源ユニット寸法 ( W × H × L) | 165 mm × 85 mm × 314 mm | ||
| レーザヘッド質量 | 28 kg | ||
| 冷却方式 | 空冷または水冷 | ||
| ORIGAMI 10 XP | ORIGAMI 10 XPS | ORIGAMI 10 XPS Tunable pulse | |
| 電源 | 24 VDC / 20 Aまたは90 VAC ~ 264 VAC、47 Hz ~ 63 Hz | ||
| 消費電力 | < 500 W | ||
