単一周波数ファイバレーザ
Koheras ADJUSTIKシリーズ
特長
- 業界トップクラスの低位相ノイズ
- 超狭線幅
- 安定した単一周波数発振
- 広い波長調整範囲
- 使いやすいベンチトップシステム
- 堅牢かつメンテナンスフリー
製品詳細
低ノイズ用途に最適
Koheras ADJUSTIKシリーズは、ベンチトップ型システムであり、セットアップに時間をかけることなく、科学研究用のツールとして使用したい研究室向けに、迅速に導入可能です。
本シリーズは、当社のKoheras BASIKモジュールシード技術をベースとしており、出力パワーのアップグレードにも対応しています。システムには、波長、出力パワー、RIN抑制などのレーザパラメータをPC上で制御および読み出しができる、ユーザーフレンドリーな専用制御ソフトウェア (CONTROL)が付属しています。
ADJUSTIKレーザは、レーザノイズが重要となる計量やコヒーレントセンシングなど、あらゆる種類の低ノイズ用途に最適です。ADJUSTIK HP T20は、量子ビット操作、量子センシング、シンパセティック冷却などの量子用途向けに、特にバリウムの6S–5D遷移を想定して設計されています。
仕様
光学的特性
| Y10 | Y10 HP | E15 | E15 HP | X15 | X15 HP | T20 HP | |
| レーザ発振、本質的に単一周波数 | CW | ||||||
| 動作波長 | 1030 nm ～ 1120 nm | 1060 nm ～ 1075 nm | 1535 nm ～ 1580 nm | 1545 nm ～ 1565 nm | 1535 nm ～ 1580 nm | 1545 nm ～ 1565 nm | 1762.17 nm |
| 出力パワー | > 10 mW | 200 mW | 40 mW | 200mW / 2W | 30 mW | 200 mW / 2000 mW | 500 mW |
| 出力調整範囲 | – | 25 % ～ 100 % | 30 % ～ 100 % | 25 % / 10 % ～ 100 % | 30 % ～ 100 % | 25 % / 10 % ～ 100 % | 10 % ～ 100 % |
| 線幅*1 | < 20 kHz | < 0.1 kHz | < 10 kHz | ||||
| 最大位相ノイズ @1 Hz | – | -105 dB ((Rad/√Hz)/m) | – | ||||
| 最大位相ノイズ @10 Hz | – | -90 dB((Rad/√Hz)/m) | -125 dB((Rad/√Hz)/m) | -80 dB((Rad/√Hz)/m) | |||
| 最大位相ノイズ @100 Hz | – | -110 dB((Rad/√Hz)/m) | -130 dB((Rad/√Hz)/m) | -100 dB((Rad/√Hz)/m) | |||
| 最大位相ノイズ @1 kHz | – | -128 dB((Rad/√Hz)/m) | – | ||||
| 最大位相ノイズ @20 kHz | – | -130 dB((Rad/√Hz)/m) | – | -120 dB((Rad/√Hz)/m) | |||
| 最大位相ノイズ @1 Hz | – | 5.6 (µrad/√Hz)/m | – | ||||
| 最大位相ノイズ @10 Hz | – | 32 (µrad/√Hz)/m | 0.6 (µrad/√Hz)/m | 100 (µrad/√Hz)/m | |||
| 最大位相ノイズ @100 Hz | – | 3.2 (µrad/√Hz)/m | 0.3 (µrad/√Hz)/m | 10 (µrad/√Hz)/m | |||
| 最大位相ノイズ @1 kHz | – | 0.4 (µrad/√Hz)/m | – | ||||
| 最大位相ノイズ @20 kHz | – | 0.3 (µrad/√Hz)/m | – | 1 (µrad/√Hz)/m | |||
| 光学S/N比 (50 pm分解能) | > 65 (typ > 70) dB | > 60 dB | > 50 (typ. > 55) dB | > 45 dB | > 50 (typ. > 55) dB | > 45 dB | > 45 dB |
| 温度による最小調整範囲*2 | ± 240 pm | ± 350 pm | |||||
| 温度による総調整範囲 | 680 pm | 1000 pm | ≈900 (TBC)pm | ||||
| 高速波長変調範囲*3 | 10 GHz | 8 GHz | 0.5 GHz | > 6 GHz @10 Hz変調周波数 | |||
| 高速波長変調範囲*3 | < 20 kHz | ||||||
| PM出力 – PER | > 23 dB | > 17 dB | > 23 dB | > 20 dB | > 23 dB | > 20 dB | > 17 dB |
| ビーム品質 | M2 < 1.05 | M2 < 1.1 | |||||
*1 ローレンツ分布。
*2 室温での中心波長に対する相対値。レーザケース温度が約10 ℃ ～ 50 ℃の範囲外の場合、中心波長からのデチューニング範囲が減少する可能性があります。
*3 変調深度および周波数は、通常、出力パワーに応じてスルーレートによって制限されます。
機械的特性
| Y10 | Y10 HP | E15 | E15 HP | X15 | X15 HP | T20 HP | |
| 動作温度範囲*1 | +15 ℃ ～ +55 ℃ | ||||||
| 保存温度 | -20 ℃ ～ +60 ℃ | ||||||
| 湿度 (結露なきこと) | 0 %RH ～ 70 %RH | ||||||
| モニタ出力 | FC/APC バルクヘッド | ||||||
| 寸法 (W×H×L) | 483 mm × 50.1 mm × 382.1 mm (19” 1U) | ||||||
| 重量 | 6 kg | ||||||
*1 モジュール温度。
電気的特性
| Y10 | Y10 HP | E15 | E15 HP | X15 | X15 HP | T20 HP | |
| 電源要件 | 100 ～ 240 VAC, Hz, 50 ～ 60 VAC, Hz | ||||||
| デジタルインターフェース | USB 2.0, イーサネット 10/100 | ||||||
| 振幅および周波数変調 | DB9 (オス)、差動 2 × 5 | ||||||
| ファイバ出力タイプ | FC/APC | ||||||
| ファイバピグテール長 | 約1 m | ||||||
位相ノイズ例

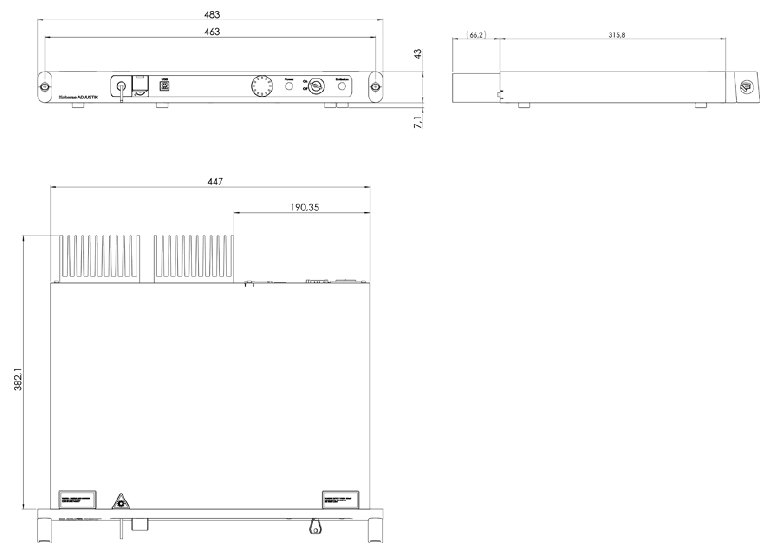

外形寸法図 (単位: mm)
