単一周波数ファイバレーザ
Koheras MIKROシリーズ
特長
- OEM向けのコンパクトサイズ
- 堅牢な単一周波数動作
- 低位相ノイズ、狭線幅
- 高い波長安定性
- 偏波保持および高速変調オプション
製品詳細
標準波長は1550 nmですが、MIKRO は1535 nm 〜 1580 nmの範囲で任意の出力波長を選択可能です。オプションで 1064 nm付近の波長にも対応します。本レーザは、温度制御により波長調整ができ、外部安定化などための高速波長変調と組み合わせることもできます。
レーザは偏波保持 (PM)出力と非PM出力のいずれにも対応しています。
容易な制御を実現するため、MIKROにはオプションとしてUSBインターフェースキットが用意されており、ユーザーフレンドリーな専用制御ソフトウェア (CONTROL)のGUIで制御することができます。
仕様
光学的特性
| MIKRO E15 | MIKRO A15 | |
| レーザ発振 | CW | |
| ビーム品質 | M² < 1.05 | |
| 線幅*1 | < 0.1 kHz | |
| 最大位相ノイズ @10 Hz | -90 dB ((Rad/√Hz)/m) | |
| 最大位相ノイズ @100 Hz | -110 dB ((Rad/√Hz)/m) | |
| 最大位相ノイズ @1 kHz | -120 dB((Rad/√Hz)/m) | -110 dB ((Rad/√Hz)/m) |
| 最大位相ノイズ @20 kHz | -130 dB((Rad/√Hz)/m) | |
| 最大周波数ノイズ @10 Hz | 1027.7 Hz/√Hz | |
| 最大周波数ノイズ @100 Hz | 102.8 Hz/√Hz | |
| 最大周波数ノイズ @1 kHz | 32.5 Hz/√Hz | 102.8 Hz/√Hz |
| 最大周波数ノイズ @20 kHz | 10.3 Hz/√Hz | |
| RINピーク | 約 0.7 MHz | |
| RINレベル (@peak) | <-100 dBc/Hz | <-90 dBc/Hz |
| RINレベル (10 MHz) | <-135 dBc/Hz | <-120 dBc/Hz |
| 光学S/N比 (50 pm分解能)*2 | > 50 dB (typ. > 55 dB) | > 48 dB |
| 温度による最小波長調整範囲*3 | ± 350 pm | |
| 温度による総調整範囲 | 1000 pm | |
| 高速波長変調範囲 | > 8 GHz | |
| 高速波長変調 | < 20 kHz | |
| PM出力 – PER | > 23 dB | > 20 dB |
*1 蓄積時間120 μs。
*2 非PMモデルの場合、>47 dB（代表値 >52 dB）。
*3 室温で中心波長に対する相対値。レーザケース温度が約10 ℃ ～ 50 ℃の範囲外の場合、中心波長からのデチューニング範囲が減少する可能性があります。
機械的特性
| MIKRO E15 | MIKRO A15 | |
| 寸法 (W×H×D) | 70 mm × 20 mm × 150 mm | |
| 質量 | 0.35 kg | |
| 動作温度範囲*1 | +15 ℃ ～ +60 ℃ | |
| 湿度 (結露なきこと) | 0 %RH ～ 70 %RH | |
*1 モジュール温度。
電気的特性
| MIKRO E15 | MIKRO A15 | |
| 電源要件 | 12 VDC | |
| 消費電力 | 標準4 W、最大10 W | |
| 通信インターフェース | RS-485 | |
| 光出力 | FC/APC (0.5 mピグテール) | |
位相ノイズ例

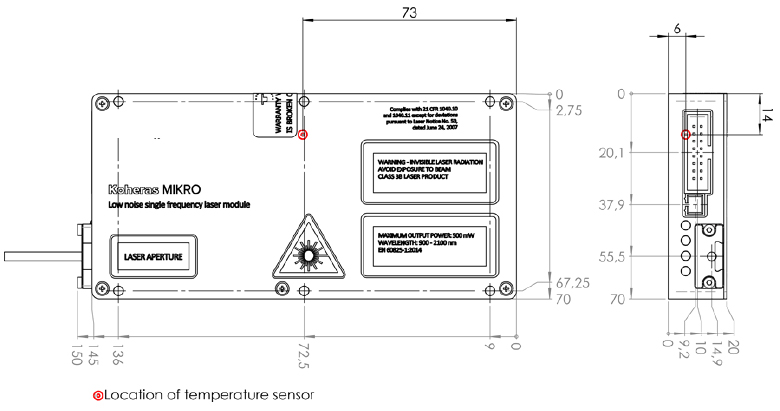

外形寸法図 (単位: mm)
