FLAT EXCIMER

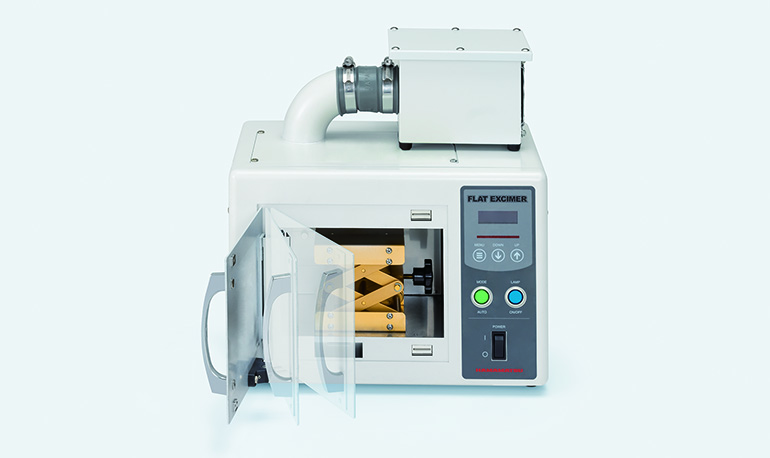

EX-mini
特長
- 小型軽量化で持ち運びが可能
- 照射ボックスと一体型のオールインワン光源
- オゾン分解ユニット E12685（オプション）
持ち運び可能なサイズ・重さを実現したことにより、設置場所や使用環境などに制限されることがありません。
照射ボックスなどの設計が不要なため、これ1台ですぐに使用することが可能です。
冷却機能とオゾン分解機能を有しており、EX-miniに搭載することで排気ダクトが不要となり、室内排気が可能となります。
内寸 (W × H × D) : 204 mm × 118 mm × 139 mm
(突起部は除く)
NOTE: サンプル台 (ジャッキなど) は付属しません。
仕様
| 項目 | 内容 / 値 | 単位 | ||
|---|---|---|---|---|
| 窓材質 | 石英ガラス | － | ||
| 照射窓サイズ | 86 × 40 | nm | ||
| ピーク波長 | 172 | nm | ||
| 紫外線照射強度 (*1) | Min. | 50 | mW/cm2 | |
| ランプ保証寿命 (*2) | 1000 | h | ||
| ランプ設計寿命 | 2000 | h | ||
| リプレイスランプ（別売） | L12681-02 | － | ||
| 窒素流量 | 10 ～ 30 | L/min | ||
| 入力電圧（DC） | 100 V ～ 240 V、単相 50 Hz / 60 Hz | － | ||
| 消費電力 | Max. | 150 | VA | |
| 冷却方式 | オゾン分解ユニット E12685もしくはダクトによる強制空冷 (*3) | － | ||
| 動作温度範囲 | +5 ℃ ～ +35 ℃ | － | ||
| 保存温度範囲 | -5 ℃ ～ +55 ℃（氷結なきこと） | － | ||
| 動作湿度範囲 | 30 % ～ 80 %（結露なきこと） | － | ||
| 保存湿度範囲 | 80 %以下（結露なきこと） | － | ||
| 外部制御 | 点灯制御、点灯信号、各種アラーム・エラー信号 | － | ||
| 適合規格 | EMC規格 | IEC 61326-1 Emission limits: CISPR 11 Group 2 Class A Immunity requirements: Table 2 |
－ | |
| 安全性規格 | IEC 61010-1/A1 | |||
| IEC 62471 Risk Group 2 | ||||
*1: 弊社製紫外線積算光量計 C9536, H9535-172にてランプ直近で測定した値です。
*2: 寿命の定義は紫外線照射強度が初期値の70 %に低下した時点、または不点灯になった時点としています。
*3: オプションのオゾン分解ユニット E12685は、冷却機能とオゾン分解機能を有しており、使用することで排気ダクトが不要となります。
排気ダクトを使用する場合は、ダクト吸引風量 0.25 m3/min ～ 0.35 m3/minにて排気してください。また、排気にはオゾンが含まれますので、必要に応じてオゾン分解フィルタを設置してください。
外形寸法図（単位：mm）
外部制御コネクタ（D-sub 15ピン）接続
| ピンNo. | 信号 | |
|---|---|---|
| 1 | マニュアル照射 |
入力 |
| 2 | マニュアル照射 点灯制御信号 (－) |
入力 |
| 3 | オート照射 点灯制御信号 (＋) |
入力 |
| 4 | オート照射 点灯制御信号 (－) |
入力 |
| 5 | 点灯信号 | 出力 |
| 6 | エラー信号 | 出力 |
| 7 | 無接続 | ー |
| 8 | 無接続 | ー |
| 9 | 出力電圧 (+24 V) | 出力 |
| 10 | 出力電圧 (+24 V) | 出力 |
| 11 | 出力電圧 (+24 V) | 出力 |
| 12 | GND. | ー |
| 13 | GND. | ー |
| 14 | GND. | ー |
| 15 | GND. | ー |
付属品
- ACケーブル（2 m）
- 外部ファン短絡コネクタ
