スポット光源 LC8
L9566
スポット光源は長寿命・高輝度水銀キセノンランプと、光ロスの少ない専用光学系の採用で、長寿命・高光出力な紫外線照射光源として主にFA（ファクトリー オートメーション）の分野で活躍しています。紫外線を利用するために熱影響に弱いマイクロ部品や光学部品などの微小部品の接着用途に最適です。
L9566シリーズ：【ライトガイド接続口：背面、ランプ交換口：操作パネル面】
L9588シリーズ：【ライトガイド接続口：操作パネル面、ランプ交換口：背面】
制御内容
| 制御内容 | 正面パネル操作 | 通信用コネクタ (RS-232C) |
外部制御端子 （D-subコネクタ） |
|
|---|---|---|---|---|
| 主電源のON / OFF | ◯ | － | － | |
| シャッタ駆動 | 開 / 閉 | ◯ | ◯ | ◯ |
| タイマによる自動 開 / 閉 *1 | ◯ | ◯ | ◯ | |
| 自動シャッタ時間の設定 | ◯ | ◯ | － | |
| 照射プログラム（メモリステップ）設定 | ◯ | ◯ | － | |
| 光量調整（UP / DOWN） | ◯ | ◯ | ◯ | |
| ランプ点灯インジケータ | ◯ | ◯（信号出力） | ◯（信号出力） | |
| ランプ安定インジケータ | ◯ | ◯（信号出力） | ◯（信号出力） | |
| シャッタオープンインジケータ | ◯ | ◯（信号出力） | ◯（信号出力） | |
| ランプ点灯時間積算計 | ◯ | ◯ | － | |
| オーバヒートアラーム | ◯ | ◯（信号出力） | ◯（信号出力） | |
| ランプ点灯時間アラーム | ◯ | ◯（信号出力） | ◯（信号出力） | |
| 省電力動作モードの切り替え *2 | － | － | － | |
*1: メモリステップのスタート / ストップにも該当します。
*2: 装置内部のスイッチで切り替えできます。
セレクションガイド
| 型名 | 発光波長 *1 | メンテナンス用ランプ *2 | 保証寿命 | |
|---|---|---|---|---|
| L9566-01A、L9588-01A | 【365 nmタイプ】 | 300 nm ～ 450 nm | L10852 | 4000 h (at 365 nm) |
| L9566-02A、L9588-02A | 【250 nm帯増強タイプ】 | 240 nm ～ 400 nm | L10852 | 2000 h (at 436 nm) |
| L9566-03、L9588-03 | 【可視光タイプ】 | 400 nm ～ 700 nm | L14753 | 2000 h (at 436 nm) |
| L9566-04、L9588-04 | 【全反射タイプ】 | 300 nm ～ 800 nm | L14753 | 2000 h (at 436 nm) |
| L9566-06A、L9588-06A | 【365 nm広帯タイプ】 | 240 nm ～ 550 nm | L10852 | 4000 h (at 365 nm) |
*1: 主な発光波長です。各種フィルタ（別売）を装着することも可能です。
*2: L10852は200 W高安定水銀キセノンランプ、L14753は150 W高安定キセノンランプ（低オゾンタイプ）です。
仕様
| 項目 | L9566 | L9588 |
|---|---|---|
| ライトガイド接続口 | 背面 | 操作パネル面 |
| ランプ交換口 | 操作パネル面 | 背面 |
| 紫外線照射強度 (Typ.) *1 | 4500 mW/cm2（at 365 nm, -01Aタイプ） | |
| 発光波長 | セレクションガイド参照 | |
| メンテナンス用ランプ | セレクションガイド参照 | |
| 保証寿命 | セレクションガイド参照 | |
| 入力電圧 (AC) | 100 V ～ 240 V（100 V/200 V 自動切り替え）、単相 47 Hz ～ 63 Hz | |
| 消費電力 (Typ.) | 280 VA | |
| 質量 | 約 6.4 kg | |
| 動作温度範囲 | +5 ℃ ～ +35 ℃ | |
| 動作湿度範囲 | 80 %以下（結露なきこと） | |
| 保存温度範囲 | -10 ℃ ～ +70 ℃ | |
| 保存湿度範囲 | 80 %以下（結露なきこと） | |
*1: ライトガイド A10014-35-0110（別売）に集光レンズ E5147-04（別売）を取り付け、レンズ出射端より10 mm離れたところでの中心紫外線強度(at 365 nm)を弊社UVパワーメータ C6080-365にて測定した代表値です。

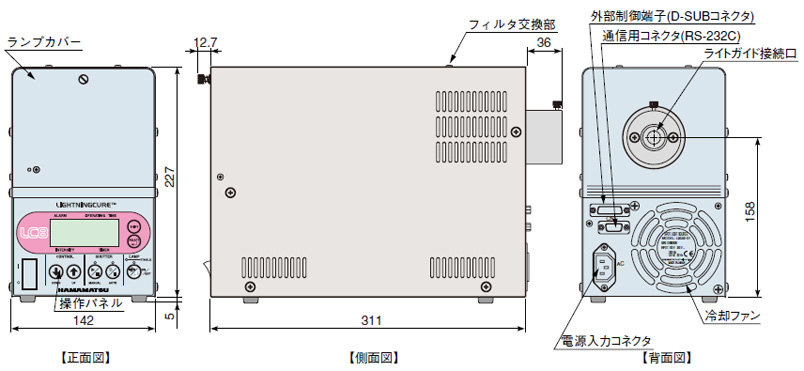

外形寸法図（単位：mm）
