光イオン化用重水素ランプ
L7293_L13301
10.78 eVの高エネルギーな光を照射可能な光イオン化用光源です。本光源による光イオン化は他の手法に比べソフトなイオン化が可能です。従来の光イオン化では高価で取り扱いの難しいレーザや、光出力の低いPIDランプが使用されてきましたが、高エネルギーな真空紫外光を照射できる重水素ランプにより安全・安価・容易に光イオン化システムを構築可能です。また、小型で長寿命といった特長も有しています。

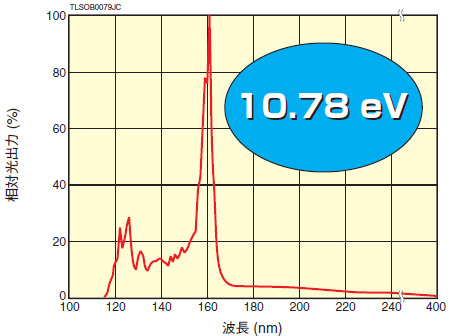

放射スペクトル分布（MgF2窓タイプ）
用途
●光イオン化
●質量分析装置
●ガス分析装置
特長
●高エネルギー： 10.78 eV
●ソフトイオン化可能
●長寿命
●他イオン化方式と比べローコスト、安全
●組込・取扱い容易
●小型

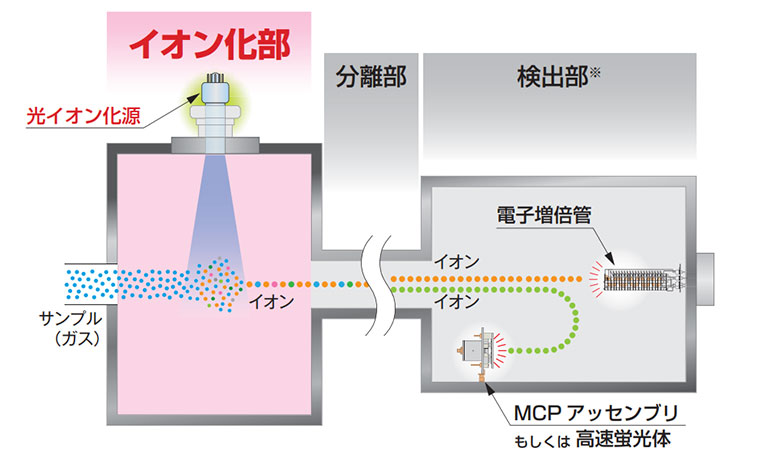

用途イメージ
※ MCPをはじめ質量分析用の検出器もご用意しております。
詳細は別途お問い合わせください。
仕様
| 項目 | L7293 | L13301 |
|---|---|---|
| 主な特長 | 長寿命 | 小型 |
| 光出力（L13301を１とした時の相対出力） | 10 | 1 |
| ハウジング* |
お客様にてご準備ください | |
| 真空フランジ* | 別途お問い合わせください | お客様にてご準備ください |
| 電源 | 別売 (ページ下部参照) | |
*ハウジング・真空フランジの設計に関し不明な点がございましたら、お気軽にお問い合わせください。
| 項目 | L7293 | L13301 | 単位 | |
|---|---|---|---|---|
| 発光波長 | 115 ～ 400 | nm | ||
| 窓材質 | MgF2 | － | ||
| 消費電力 (Max.) | 30 | 8.5 | W | |
| アパーチャサイズ (発光点) | φ1.0 | mm | ||
| 保証寿命 Ⓐ | 2000 | 1000 | h | |
| 出力安定性 (at 230 nm) | ドリフト (Max.) | ±0.3 | ±0.25 | %/h |
| フラツキ (p-p) (Typ.) | 0.005 | % | ||
| 質量 | 41 | 11 | g | |
| 保存温度範囲 | 0 ～ +60 | ℃ | ||
| 保存湿度範囲 | 85% 以下（結露なきこと) | － | ||
Ⓐ 寿命の定義は、波長 230nm での光出力が初期値の 50% に低下した時点、もしくはフラツキが 0.05% を超えた時点としています。

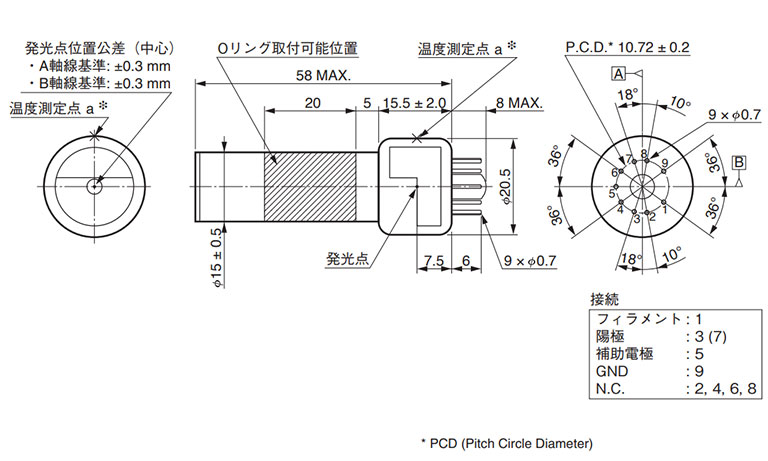

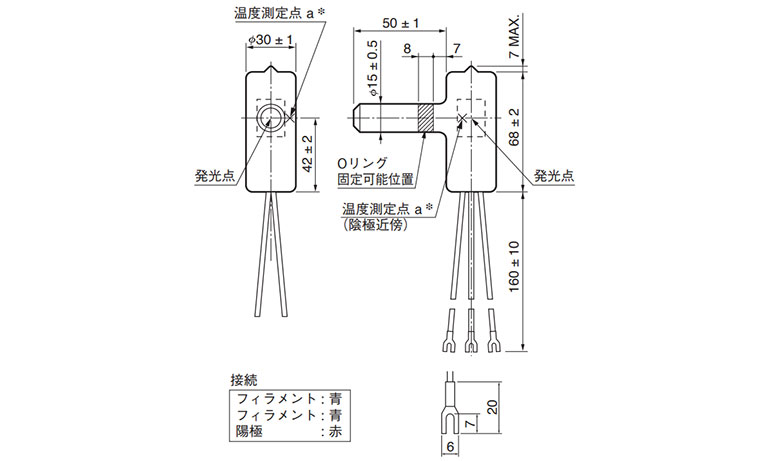

外形寸法図（単位：mm）
※ 最適な動作温度は 245 ℃ ～ 290 ℃ (L7293)と最大 240 ℃ (L13301)です。
測定に関して不明な点はご相談ください。
ランプ取付例
光イオン化用重水素ランプを真空装置に取り付ける際、下記のような取り付け方法が可能です。段つなぎ封止部、MgF2窓部は物理的に弱いため、設計時にはこの部位に負荷をかけないようご注意ください。また、取り扱う際は手 袋などを着用し、ランプに直接素手で触れないようにしてください。
重水素ランプは人体に有害な紫外線を放射し、大気中で点灯する場合はオゾンが発生します。外部への紫外線漏れ対策や、オゾン発生時の換気は確実に行ってください。使用に関してご不明な点がございましたらお気軽にお問い合わ せください。

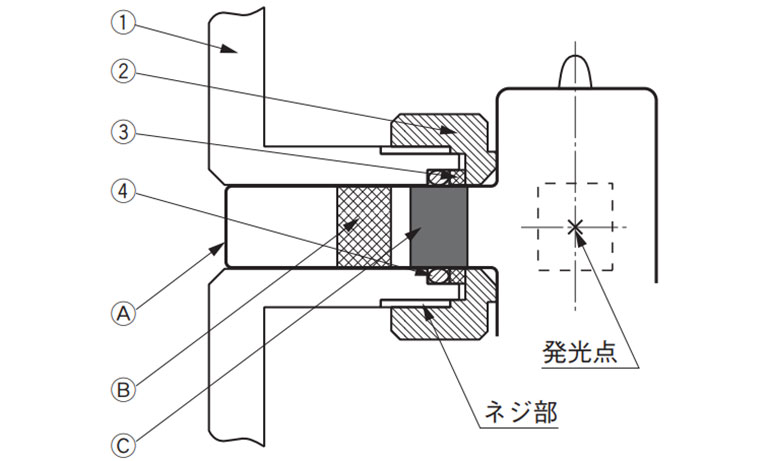

(L7293, L7293-50)
①真空フランジ
②締め付けネジ
③Oリング JIS B2401
呼び番号 V15
④スペーサ
ⒶMgF2窓
Ⓑ段つなぎ部
ⒸOリングシール可能部

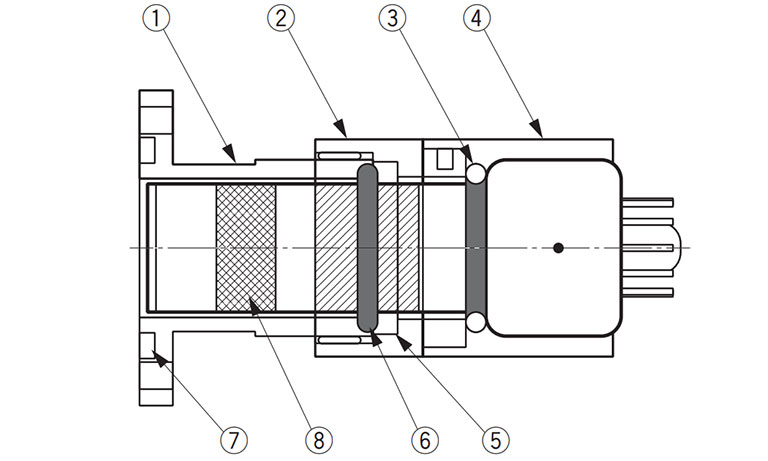

(L13301)
①真空フランジ (HX-VF02)
②締め付けネジ (HX-GP01)
③Oリング P15 (ストッパ)
④ランプハウス (HX-LH01)
⑤Oリングブロック (HX-OC01)
⑥Oリング P15 (真空シール用)
⑦装置取り付け用Oリング溝
(P20使用可能)
⑧段つなぎ部

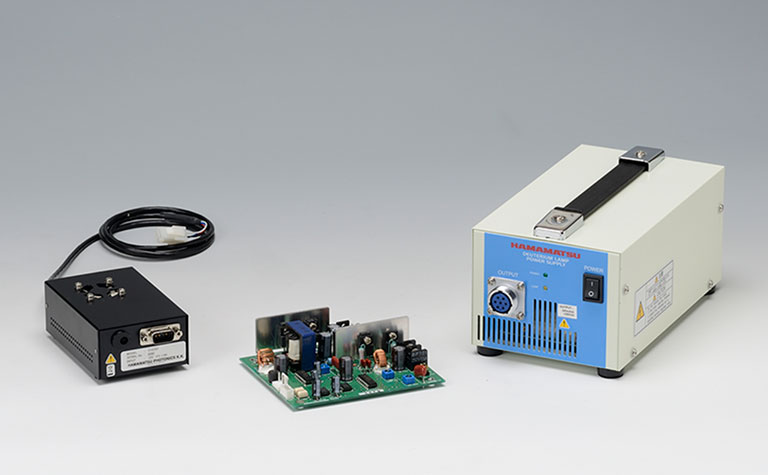

ランプ用電源（別売）
弊社製光イオン化用重水素ランプに最適な電源です。重水素ランプは使用時間に応じて電極・ガスが消耗するため、ライフエンドに近づくと点灯しにくくなりますが、弊社製の電源ではランプに適した点灯方式を採用しているため、ライフエンドまで確実な点灯を維持することが可能です。また、C10707とM9596-2510に関しては貸出用のデモ機を用意しています。ご興味のある方はお気軽にお問い合わせください。
仕様
（30分ウォームアップ後、室温(25 ℃ ±1 ℃)にて測定）
| 項目 | C10707 | M9596-2510 | C9598-2510 | 単位 | ||
|---|---|---|---|---|---|---|
| 入力 | 入力電圧 | AC 100 V ～ 240 V (付属ACアダプタ使用時) |
DC 24 V ±2.4 V | AC 100 V ～ 240 V (100 V / 200 V 自動切替) 単相 50 Hz / 60 Hz |
－ | |
| 入力電流 (Max.) | 0.4 | 2 | 0.9 | A | ||
| 出力 | 出力電圧 (DC) | 動作時 (Typ.) | 135 | 80 | 80 | V |
| 無負荷時 (Min.) | 250 | 200 | 200 | V | ||
| 出力電流 (DC) | 50 ±5 | 300 ±30 | 300 ±30 | mA | ||
| ウォームアップ時間 | 25 ±5 | 約 20 | 約 20 | 秒 | ||
| トリガ電圧 | 約 230 | 約 600 | 約 600 | V peak | ||
| 外形寸法 (W x H x D) | 70 x 42.5 x 112.5 | 100 x 35 x 118 | 117 x 107 x 200 | mm | ||
| 冷却方法 | － | 強制空冷 (0.3 m3 / min) | － | － | ||
| 動作周囲温度 | 0 ～ +40 | ℃ | ||||
| 保存温度 | -10 ～ +60 | ℃ | ||||
| 動作周囲・保存湿度 | 80 以下（結露しないこと) | % | ||||
| 質量 | 約 0.25 | 約 0.18 | 約 2.1 | kg | ||
| 適応規格 | EN (CEマーキング) | － | 〇 | 〇 | － | |
| UL (ファイルNo. E249677) | － | 〇 | － | － | ||
| 対応ランプ型名 | L13301 | L7293 | L7293 | － | ||
