キュベットブロック
A11971
キュベットブロックA11971は、光路長が10 mmのキュベット専用小型暗箱ケースです。他のオプティカルブロックとの組み合わせにより、容易に試料測定ができます。
台座は必要に応じて取り外し可能です。
仕様
| 型名 | 有効光路径 | 適応キュベットサイズ | 質量 | |
|---|---|---|---|---|
| 光路長 | 外形寸法 | |||
| A11971 | 8 mm | 10 mm | □12.5 mm × 56 mm (H) | 約206 g （台座含む） |
付属：ブロックキャップ 2個、六角レンチ S2.5

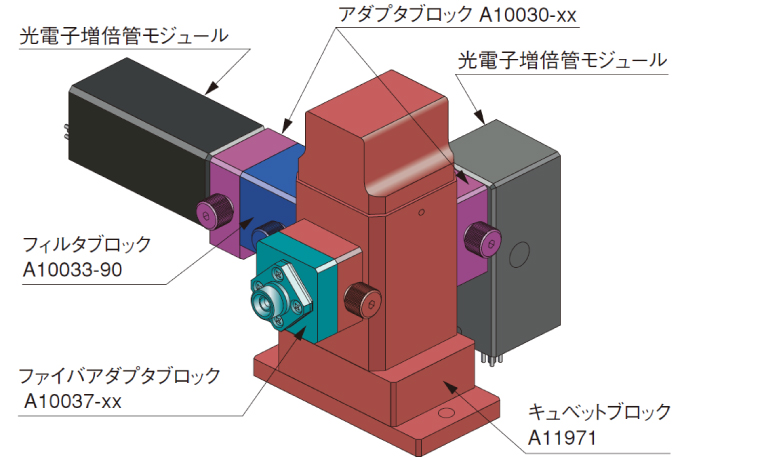

接続例: 光ファイバを用いた吸光、側方蛍光検出
光ファイバからの出射光を、ファイバアダプタブロックA10037に内蔵されているレンズで平行にして、ホルダ内の試料に照射します。前方の光センサモジュールでは吸光を、側方の光電子増倍管モジュールでは蛍光を測定します。

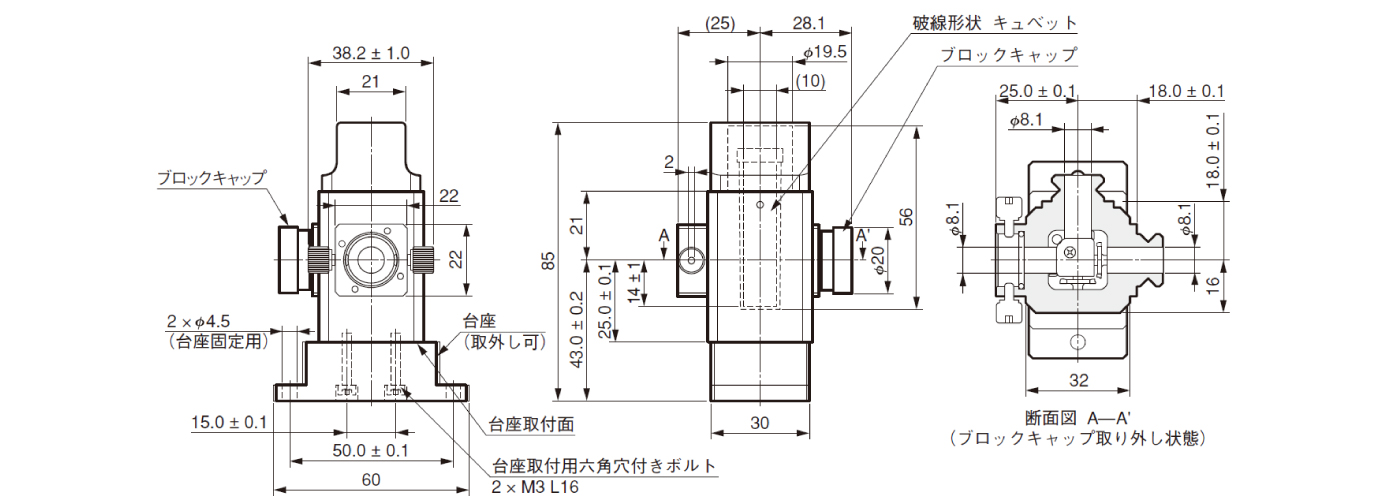

外形寸法図（単位: mm）
