イメージインテンシファイアユニット
C16031-311
| 入力レンズマウント | Fマウント |
|---|---|
| 入力面サイズ | φ25 mm |
| 光電面 | マルチアルカリ |
| MCP段数 | 1 |

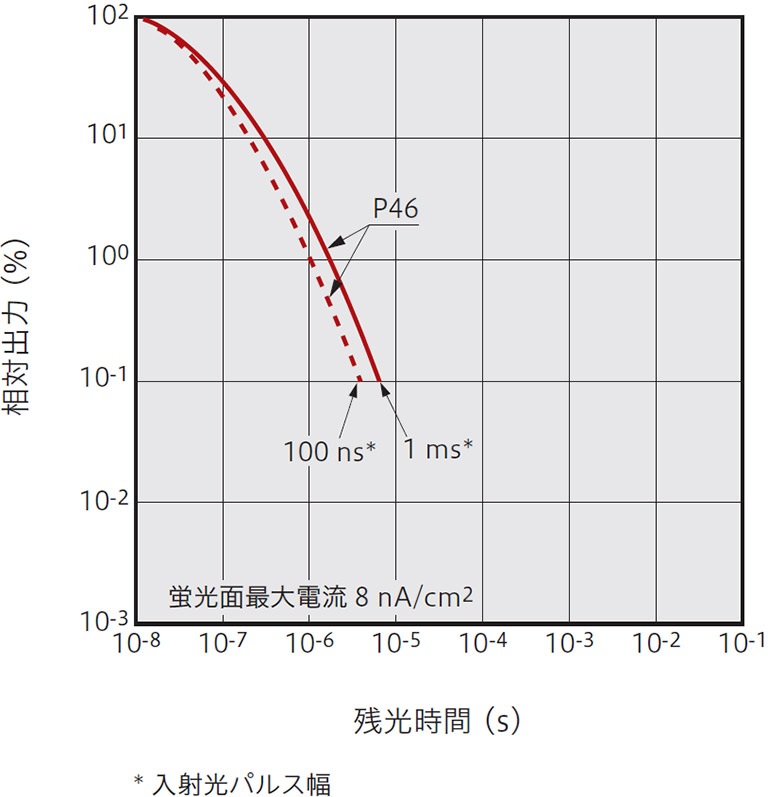

| 出力蛍光面 / 出力窓 | P46 / FOP |
| 感度波長 (Short) | 185 nm |
| 感度波長 (Long) | 900 nm |
| ルーメン感度 (Typ.) | 230 μA/lm |

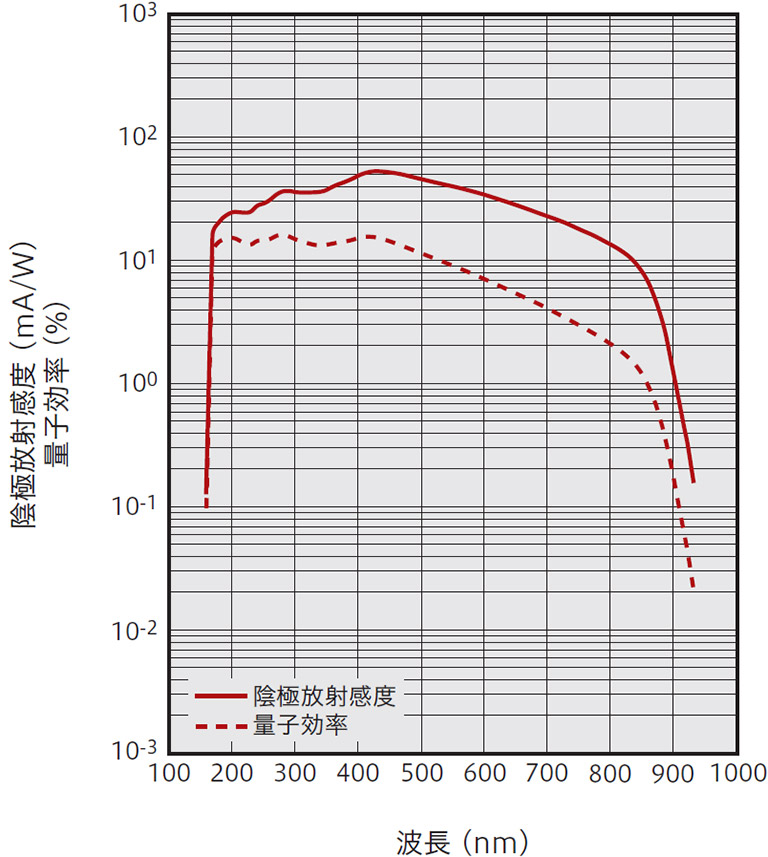

| 放射感度 | 53 mA/W |
| 量子効率 | 15 % |

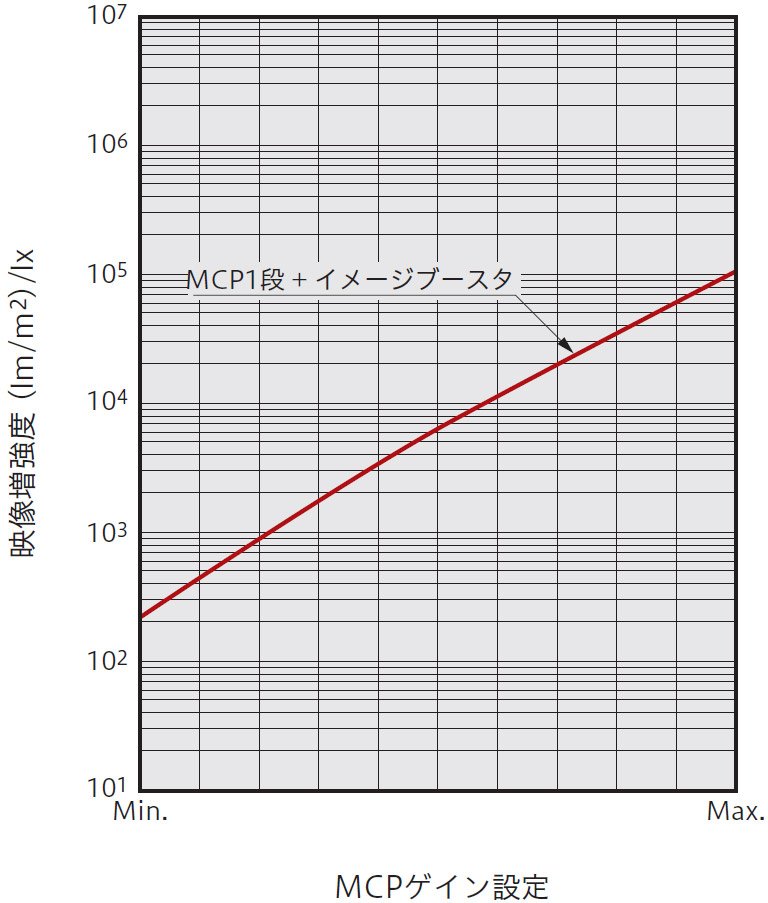

| 映像増強度 | 1.0 × 105 (lm/m2)/lx |
| 等価背景入力(EBI) (Typ.) | 2 x 10-9 lm/cm2 |
| 中心限界解像度 (Typ.) | 38 Lp/mm |
| 映像倍率 | 0.67 |

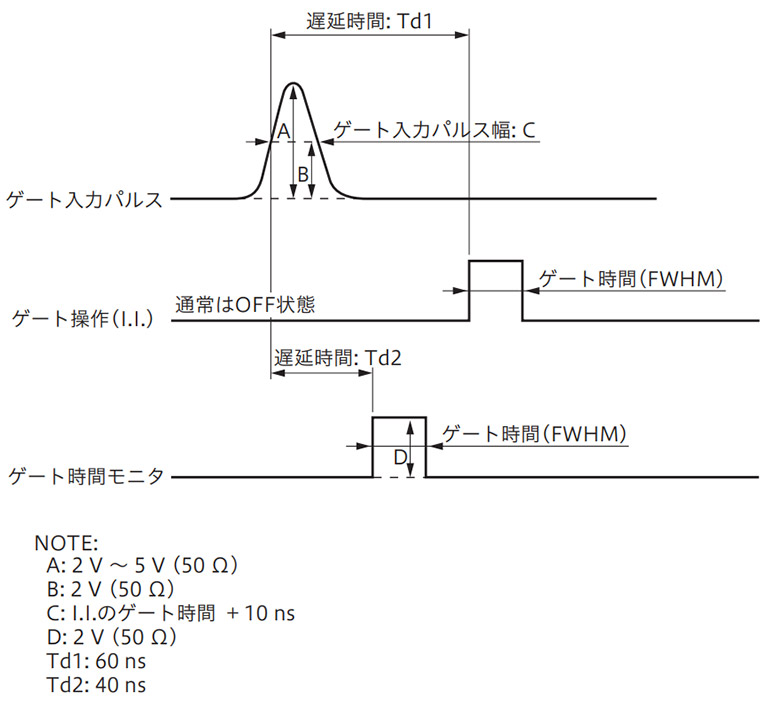

| ゲート最小ON時間 | 10 ns |
| ゲート最大繰り返し周波数 | 200 kHz |
| 電源電圧(ACアダプタ使用) | AC 100 V ～ 240 V |
| 動作周囲温度 | 0 ℃ ～ +40 ℃ |
| 動作周囲湿度 | 70 % 以下 |

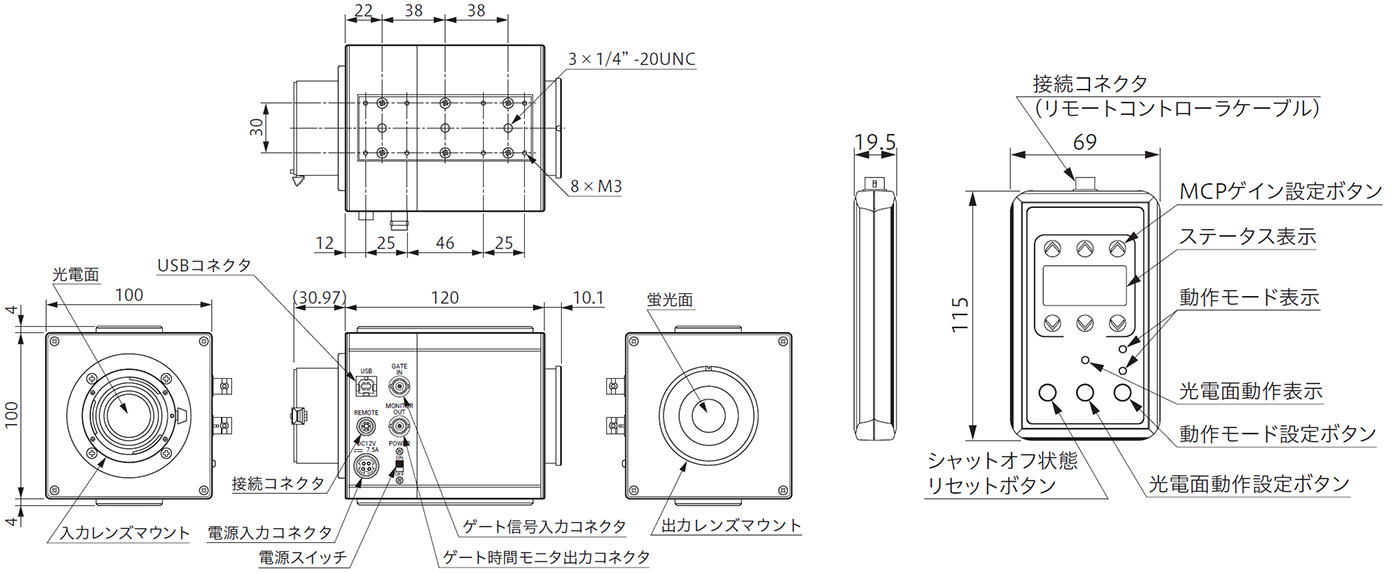

外形寸法図
