|感度波長 (Short)||230 nm|
|感度波長 (Long)||870 nm|
|感度波長 (Peak)||400 nm|

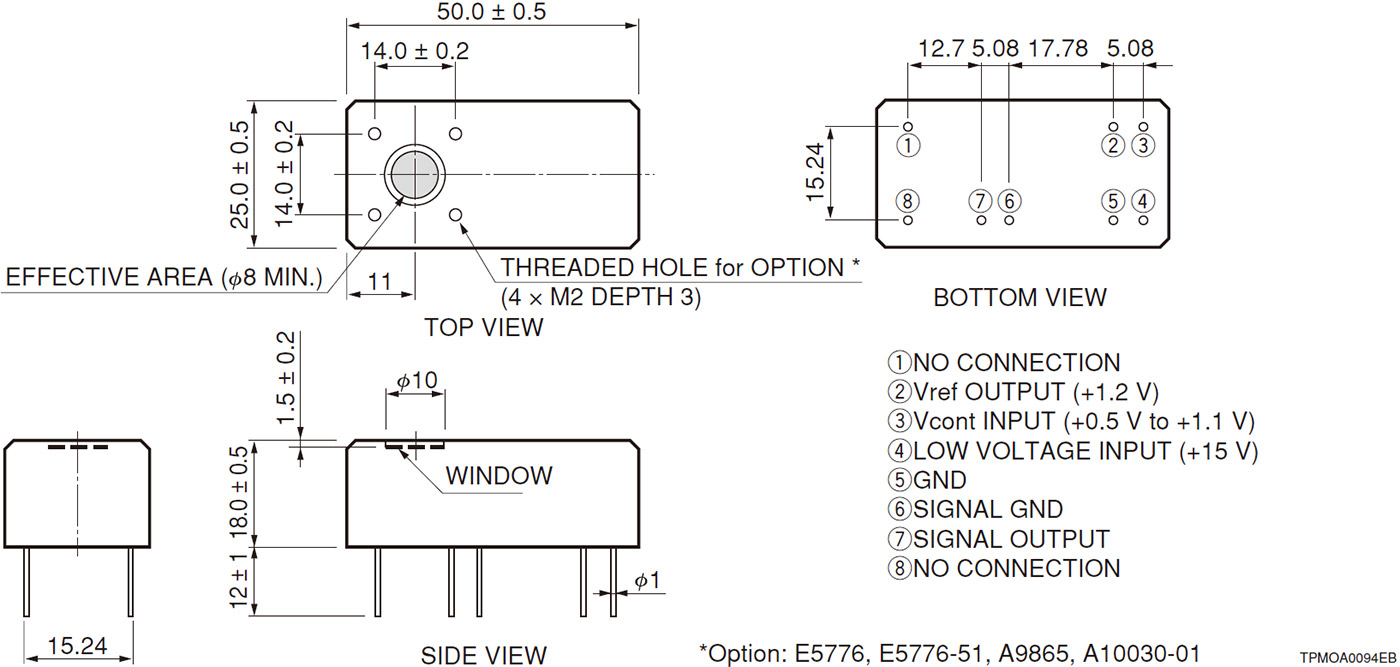

|外形寸法 (W x H x D)||50.0 x 25.0 x 18.0 mm|
|最大コントロール電圧||+1.1（入力インピーダンス30 kΩ） V|
|推奨コントロール電圧調整範囲||+0.5～+1.1（入力インピーダンス30 kΩ） V|
|[陰極特性] ルーメン感度 Min.||100 μA/lm|
|[陰極特性] ルーメン感度 Typ.||200 μA/lm|
|[陰極特性] 赤感度比 Typ.||0.2|
|[陰極特性] 放射感度 Typ.||77 mA/W|
|[陽極特性] ルーメン感度 Min.||100 A/lm|
|[陽極特性] ルーメン感度 Typ.||400 A/lm|
|[陽極特性] 放射感度 Typ.||1.5 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||1 nA|
|[陽極特性] 暗電流(30分後) Max.||10 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.57 ns|
|リップルノイズ （peak to peak） Max.||0.6 mV|
|セトリングタイム Max.||0.2 s|
