H9305シリーズは、φ13 mm（1/2")サイドオン型光電子増倍管と高圧電源回路を内蔵した電流出力型光電子増倍管モジュールです。φ13 mmサイドオン型光電子増倍管は、光電面が反射型のため、600 nm以上の波長領域で量子効率が高く、また10e(7)までのゲインが得られ時間特性も速いため、高速で計測する場合や微弱光測定に高いSN比が得られます。また、高圧電源回路にコッククロフト・ウォルトン回路を採用しているため、低消費電力です。入出力にケーブルを採用しており、機器組み込みに便利です。
|受光面サイズ||3.7 x 13.0 mm|
|感度波長 (Short)||185 nm|
|感度波長 (Long)||900 nm|
|感度波長 (Peak)||450 nm|

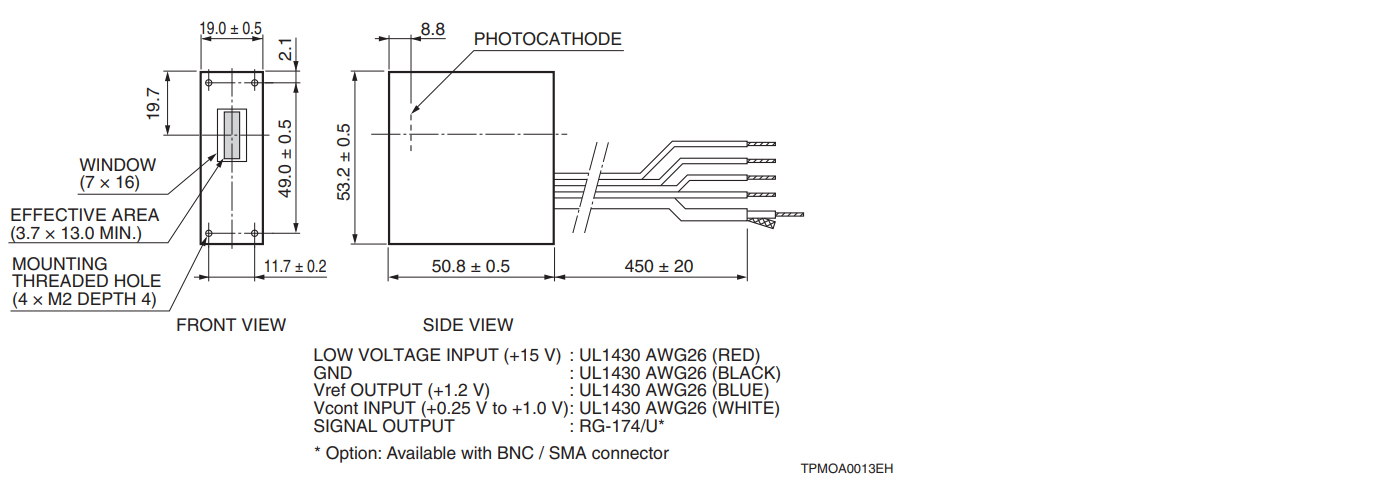

|外形寸法 (W x H x D)||19.0 x 53.2 x 50.8 mm|
|[陰極特性] ルーメン感度 Min.||350 μA/lm|
|[陰極特性] ルーメン感度 Typ.||500 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||-|
|[陰極特性] 赤感度比 Typ.||0.4|
|[陰極特性] 放射感度 Typ.||105 mA/W|
|[陽極特性] ルーメン感度 Min.||1000 A/lm|
|[陽極特性] ルーメン感度 Typ.||2000 A/lm|
|[陽極特性] 放射感度 Typ.||4.2 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||2 nA|
|[陽極特性] 暗電流(30分後) Max.||10 nA|
|[時間特性] 上昇時間 (Tr) Typ.||1.4 ns|
|リップルノイズ （peak to peak） Max.||0.5 mV|
|セトリングタイム Max.||10 s|
