|感度波長 (Short)||185 nm|
|感度波長 (Long)||700 nm|
|感度波長 (Peak)||400 nm|

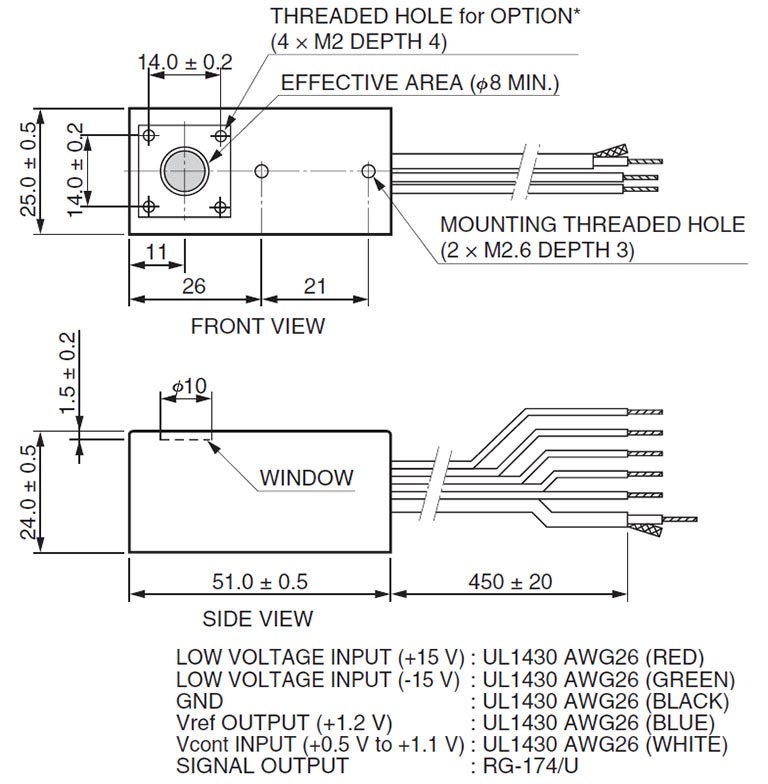

|外形寸法 (W x H x D)||51.0 x 24.0 x 25.0 mm|
|最大入力電流||+20 / -8 mA|
|最大出力信号電圧||+10 （負荷抵抗 10kΩ） V|
|最大コントロール電圧||+1.1（入力インピーダンス30 kΩ） V|
|推奨コントロール電圧調整範囲||+0.5～+1.1（入力インピーダンス30 kΩ） V|
|[陰極特性] ルーメン感度 Min.||80 μA/lm|
|[陰極特性] ルーメン感度 Typ.||105 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||13.5|
|[陰極特性] 放射感度 Typ.||110 mA/W|
|[陽極特性] ルーメン感度 Min.||8.0 x 106 V/lm|
|[陽極特性] ルーメン感度 Typ.||2.1 x 107 V/lm|
|[陽極特性] 放射感度 Typ.||22 V/nW|
|[陽極特性] 暗中での電圧出力(30分後) Typ.||0.1 mV|
|[陽極特性] 暗中での電圧出力(30分後) Max.||1 mV|
|出力オフセット電圧 Typ.||±1 mV|
|リップルノイズ （peak to peak） Max.||1 mV|
|セトリングタイム Max.||0.2 s|
