Siフォトダイオード S2387シリーズの後継品 S12915シリーズ
可視 ～ 赤外域の一般測光用SiフォトダイオードS12915シリーズをリリースしました。
従来から広く使用されてきたS2387シリーズと価格・形状・ピン配置はそのままに、特性を改善し、高感度・低暗電流・高耐湿性を実現しました。
これまでS2387シリーズを採用しているお客様にも、S12915シリーズを推奨しています。

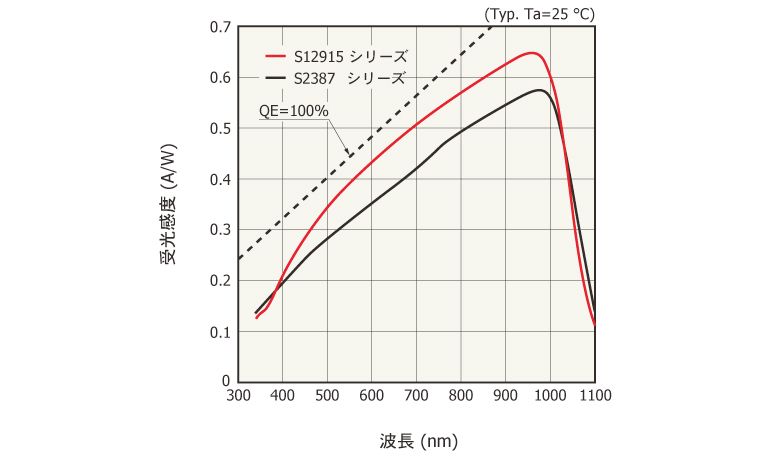

分光感度特性

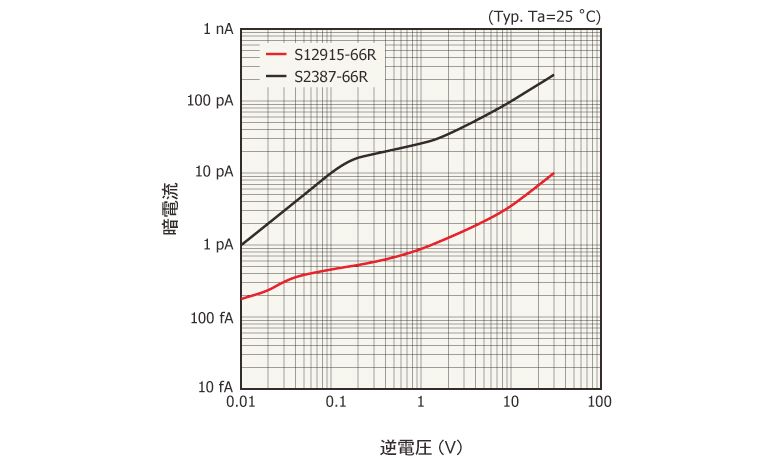

暗電流ー逆電圧（代表例）
*S12915の製品ページに、S2387との各種比較データがございます。
ラインアップ
| 型名 | 受光面サイズ (mm) | 感度波長範囲 (nm) |
|---|---|---|
| 1.1 × 5.9 | 340 ～ 1100 | |
| 2.4 × 2.4 | 340 ～ 1100 | |
| 5.8 × 5.8 | 340 ～ 1100 | |
| 10 × 10 | 340 ～ 1100 |
