超短パルスファイバレーザ
aeroPULSE FS50は、要求水準の高い24時間365日稼働のOEM用途や学術用途向けに開発されており、高いユニット間の一貫性と稼働率、低い所有コスト、そして容易な装置組み込みを実現します。
この高性能かつ堅牢なOEMファイバレーザは、最先端のモードロック技術を採用しており、優れた長期安定性、卓越したパルス間安定性、低ノイズ、高いビームポインティング安定性を兼ね備えた超短フェムト秒パルスを提供します。
本レーザはパルスオンデマンド機能と汎用性の高いバーストモードを備えており、スキャナやステージとの同期を可能にすることで、高度な製造技術に対応します。非機械的なパルス幅調整方式により、プリチャープや群速度遅延の調整時にも安定したビームポインティングを保証し、実験中の精密な制御を可能にします。
aeroPULSE FS50は、薄膜切断、ガラス切断、ステントをはじめとする医療機器、ICパッケージ切断、スクライビング、OPAポンピング、材料加工など、様々な用途向けに設計されています。
プログラム可能なアンプバースト動作の導入により、多くの用途において非バースト処理と比較して、より高いアブレーションレートまたは加工深さを実現できます。この新機能により、プロセス全体の最適化が可能になります。
標準仕様として、波長1030 nmにおいて最大50 Wの出力を提供します。パルス幅の調整機能と幅広い繰り返し周波数を備えたaeroPULSE FS50は、柔軟性に優れたコスト効率の高いフェムト秒レーザです。
着脱可能な第二高調波発生 (SHG)モジュールにより、波長515 nm (20 μJ)と1030 nm (40 μJ)の切り替えが可能になります。波長はソフトウェアで選択できます。
独自のoptoCAGE™技術を採用することにより、アライメント不要の究極の信頼性を実現しています。aeroPULSE FS50は24時間365日の連続稼働でも高い安定性を保証し、装置組み込みに最適です。
システムはRS-232インターフェースを介してリモート制御が可能で、主要パラメータの詳細なオンボードデータロギング機能を搭載しています。
| aeroPULSE FS50 | aeroPULSE FS50-05 | |
| 中心波長 | 1030 ± 5 nm | 515 ± 2 nm |
| 出力 | > 50 W | > 25 W |
| パルス幅 | < 450 fs ~ 3000 fs | < 400 fs |
| パルスエネルギー | > 40 μJ (最大1.25 MHz) | > 20 μJ (最大1.25 MHz) |
| 繰り返し周波数 | 0 MHz ~ 50 MHz | |
| アナログアッテネータ帯域幅 | < 2 MHz | |
| デジタルゲート帯域幅 | < 2 MHz | |
| ビーム径 | 2.0 ± 0.5 mm | |
| 基本空間モード | M2 ≤ 1.3 | |
| ビーム非対称性 / 楕円率 | < 15 % | |
| 出力安定性 (50時間)、RMS | < 0.5 % | < 1 % |
| ポインティング安定性 (8時間) | < 50 μrad | |
| 偏光 | 直線偏光 (PER > 20 dB) | |
| aeroPULSE FS50 | aeroPULSE FS50-05 | |
| 動作温度 | +15 ℃ ~ +35 ℃ | |
| 保存温度 | -20 ℃ ~ +60 ℃ | |

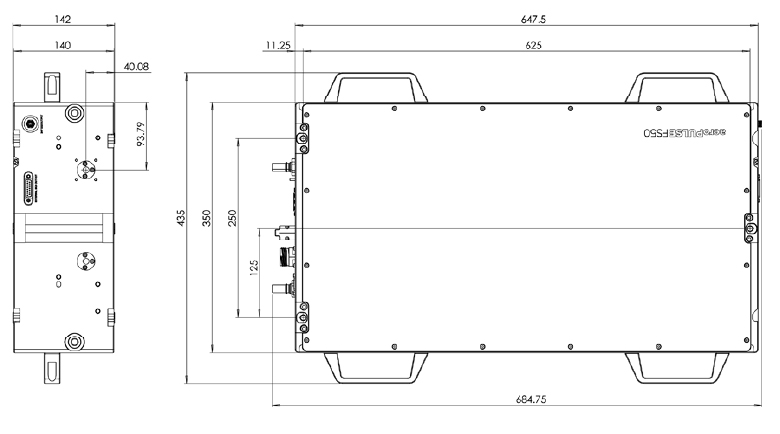

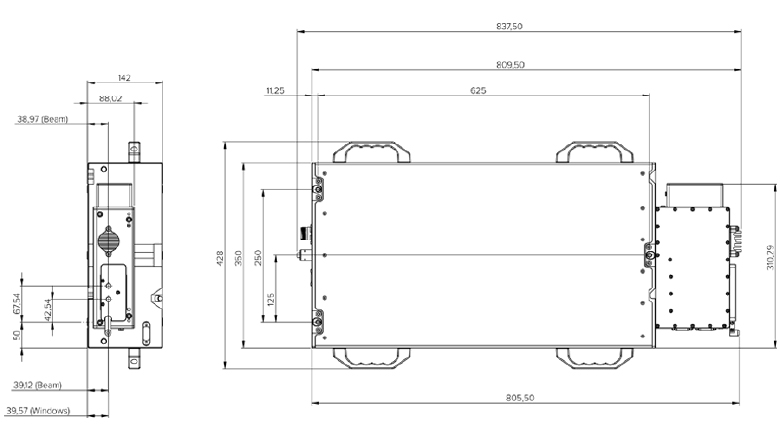

| レーザヘッド寸法 (W×H×L) | 647.5 mm × 142 mm × 350 mm | 809.5 mm × 142 mm × 350 mm |
| レーザヘッド重量 | 35 kg | 39 kg |

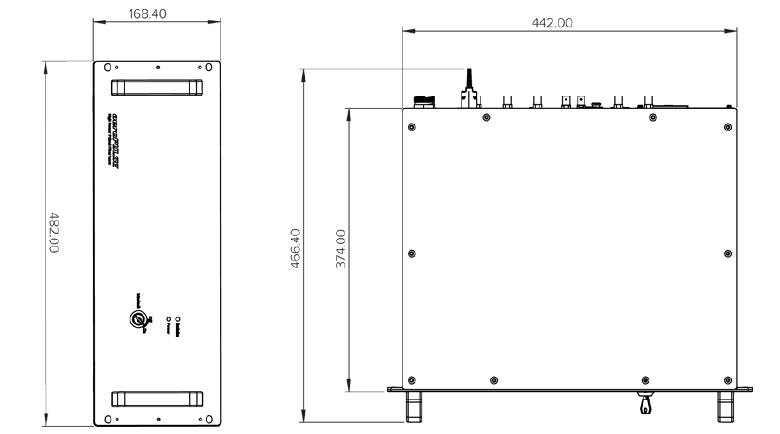

| 制御ユニット寸法 (W×H×L) | 442 mm × 168.5 mm × 374 mm | |
| 制御ユニット重量 | 18.5 kg | |
| ケーブル長 | 4 m | |
| チラー寸法 (W×H×L) | 482 mm × 310 mm × 550 mm | |
| チラー重量 | 40 kg | |
| 冷却方式 | 水冷式 | |
| aeroPULSE FS50 | aeroPULSE FS50-05 | |
| コンピュータインターフェース | USB 2.0 / RS-232 / Ethernet | |
| 動作電圧 | 100 VAC ~ 240 VAC、50 Hz / 60 Hz | |
| 消費電力 | < 600 W | |
