NanoZoomer S60v2 バーチャルスライドスキャナ
NanoZoomer S60v2は、明視野画像だけでなく蛍光画像の取得にも対応したモデルです。
ダブルサイズスライドに対応しているため、より大きなサイズの組織試料をバーチャルスライド化することが可能です。
C16600-01は研究用機器です。
自社製高感度カメラに加え、フィルタ切り替え機構を用いた落射光学系を採用し、最大6波長の多重蛍光スキャンを実現しました。1波長ごとに画像ファイルが出力され、波長ごとの表示、複数波長重ねての表示ができます。

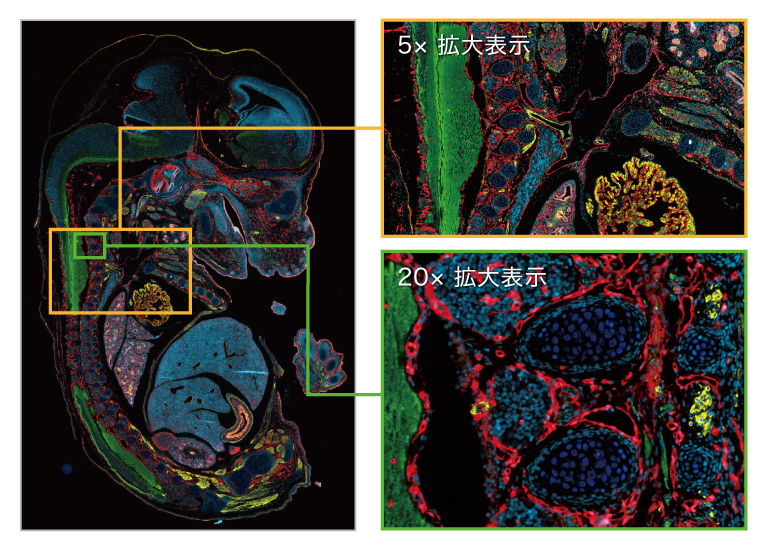

多重染色マウス蛍光標本(6色)
20×モード スキャン時間: 約16分
スキャン領域: 7 mm × 12 mm
蛍光色素: DAPI /Aqua / Green / Gold / Red / Far Red
露光時間: 80 ms / 32 ms / 112 ms / 224 ms / 224 ms / 112 ms
スケーリング: 各8×

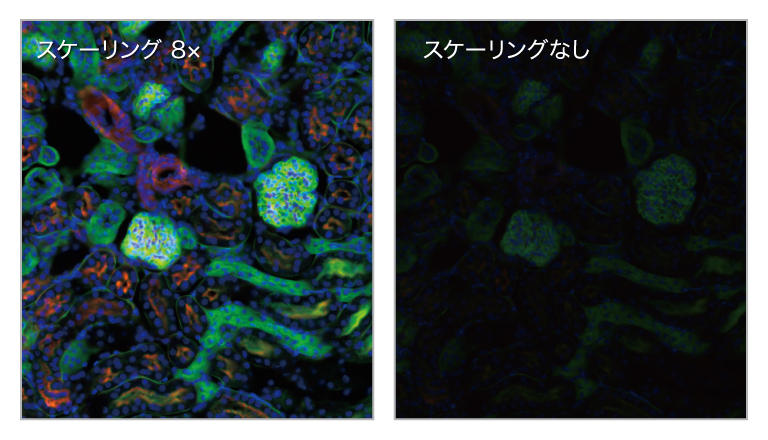

スキャン時に蛍光輝度値に対してスケーリング処理することで短い露光時間で明るい蛍光画像を取得することができます。露光時間を最短で1/8の時間に短くできるため、スキャン時間の短縮、蛍光の退色防止が可能になります。
40×モード スキャン領域: 10 mm × 10 mm
蛍光フィルタ:DAPI / FITC / TRITC用
※ スキャン時間は実測値です。
※ スライド搬送からスキャン完了までの時間です。
マウス腎臓蛍光標本
40×モード スキャン時間: 約9分
スキャン領域: 7 mm × 13 mm(画像は一部視野)
蛍光色素: DAPI / Alexa 488 / Alexa 568
露光時間: 10 ms / 5 ms / 5 ms

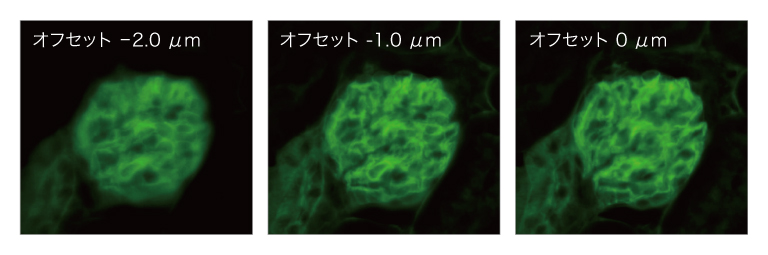

フォーカスオフセット機能でフォーカス面を波長ごとに補正可能です。染色対象物ごとにフォーカスのオフセット値を設定することで、すべての波長でフォーカスがあった鮮明な画像を取得できます。
※15 mm × 15 mmの範囲を5点フォーカスでスキャンした場合
製品名 | NanoZoomer S60v2 バーチャルスライドスキャナ | |
---|---|---|
型名 | C16600-01 | |
スキャン時間※1 | 20倍モード | 約60秒(15 mm × 15 mm) |
40倍モード | 約75秒(15 mm × 15 mm) | |
対物レンズ | 20× N.A.0.75(20倍モード、40倍モード搭載) | |
対象試料 | シングルサイズスライド |
|
カセットローダ | シングルサイズスライド:60枚(20枚×3カセット) |
|
スキャン分解能 | 20倍モード | 約0.46 μm/pixel |
40倍モード | 約0.23 μm/pixel | |
フォーカス方式 | プレフォーカスマップ | |
Zスタック機能 | 有(最大99層、間隔0.1 μm~) | |
画像圧縮方式 | 圧縮画像(JPEG)、非圧縮画像(8 bit) | |
蛍光対応 | オプション | |
バーコードリーダ | 1Dバーコード読み取り | Code 39、Code 128、Interleaved 2 of 5、 |
2Dバーコード読み取り※2 | DataMatrix (ECC200) |
|
電源 | AC100 V~AC240 V | |
消費電力 | 約120 VA |
※1 明視野におけるスキャン時間です。
※2 2次元バーコード読み取りにはオプションのソフトウエアが必要となります。
