NDP.view2 画像閲覧ソフトウエア

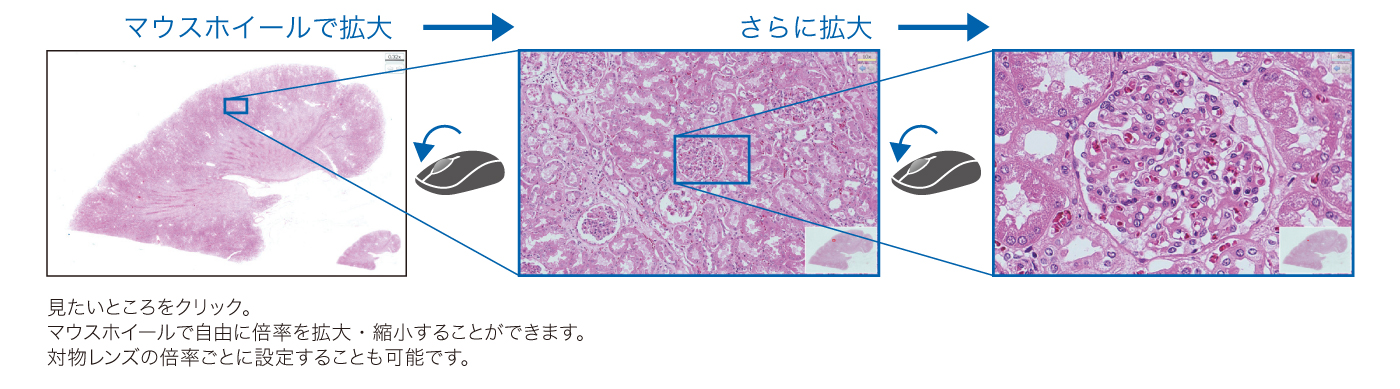

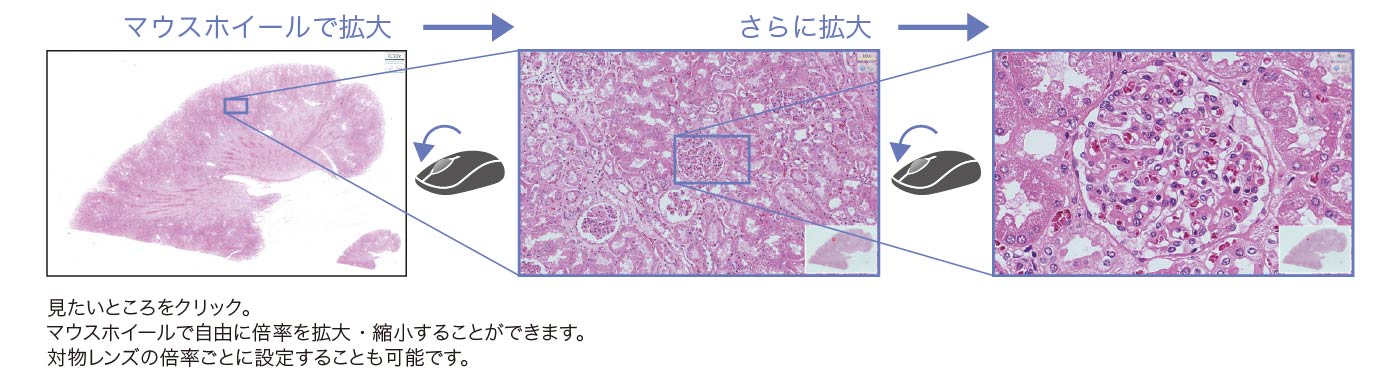

マウス操作後の表示スピードを大幅に改善。 快適なバーチャルスライド観察を実現しました。
使い勝手の良さを限りなく追求し、思いどおりに 動かせる簡単操作を実現しました。
ユーザーインターフェースの改良により、より直感的な操作性を実現しました。
ユーザーからのご要望に応え、新機能を搭載し、従来の機能をより使いやすく改良しました。
Windows | Mac OS | |
---|---|---|
OS | Windows 8.1、Windows 10、Windows 11 32、64 bit |
macOS 10.15、11.2、12 |
CPU | Core シリーズ以上 | インテルマルチコアプロセッサ |
メモリ | 2 GB以上 | |
ハードディスク空き容量 | 100 MB以上 | |
グラフィックスカード | DirectX11以降をサポートしたグラフィックカード(必須) | OpenGL 2.0対応システム |
ディスプレイ | XGA(1024×768)以上 |
NDP.view2(U12388-01)は、以下のリンクから無償でダウンロードできます。
対応OS:Windows 8.1、Windows 10、Windows 11(32、64 bit)
対応OS:macOS 10.15、11.2、12
詳しい機能説明は、取扱説明書をお読みください。
Mac OS 10.8以降をご使用の方へ[0.4 MB/PDF]
本ソフトウエアは、全てのコンピュータでの動作を保証することはできません。コンピュータの環境によっては動作させることができないことも想定されますので予めご了承ください。
対応OS:Windows 8.1、Windows 10(32、64 bit)
対応OS:macOS 10.14、10.15、11.2
対応OS:Windows 8.1、Windows 10(32、64 bit)
対応OS:macOS 10.13~10.15
対応OS:Windows 7、Windows 8.1、Windows 10(32、64 bit)
対応OS:macOS 10.13~10.15
2020年04月15日:
初期のWindows 7およびDirectX 11の環境において、ソフトウエアの起動が出来ない事象が報告されています。その場合、最新のWindows Updateを適用することで改善できます。
Windows Updateを適用出来ない場合は、以下の旧バージョンをお使いください。ご不便をおかけしますがよろしくお願いいたします。
2018年11月15日:
一部のWindows端末で、起動時にエラー(Direct3DError)となる報告を頂いています。その場合は以下の旧バージョンをお使いください。ご不便をおかけしますがよろしくお願いいたします。
対応OS:Windows 7、Windows 8.1(32、64 bit)
対応OS:OS X 10.9~10.11
他社のスキャナで取得した画像でも、NanoZoomerで取得した画像同様に そのまま閲覧可能です。これまで取得してきたデータも無駄になりません。

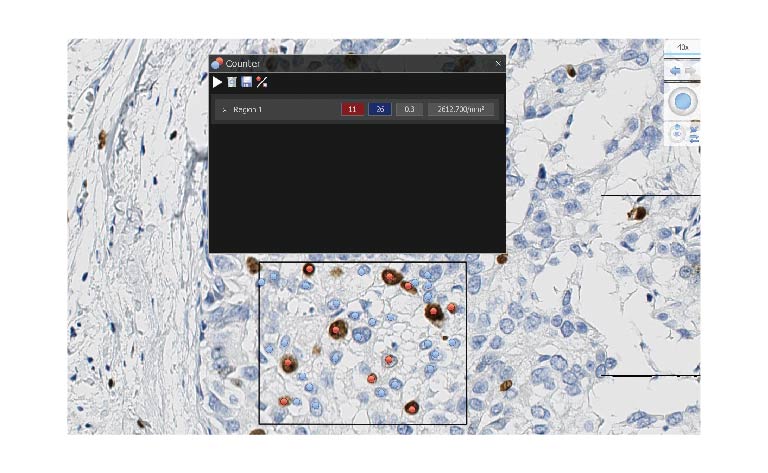

マウスクリックにより、数をカウントすることができます。アノテーションにより 領域を設定することで、領域ごとのカウントを区別することが可能です。カウ ントした結果は、csvファイルに保存することができます。
トラックマップ上で、観察済の領域が一目でわかります。また、観察時の 倍率条件を色で識別表示し、保存することができます。

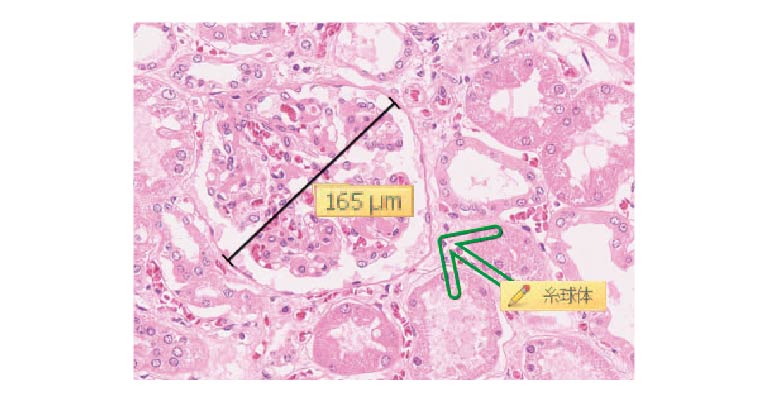

アノテーション画像にコメントを記載して、レポートとしてPDF出力すること が可能です。観察の記録管理に非常に有効な機能です。
指定の範囲内を顕微鏡の電動ステージのように、自動的に視野を移動して 観察できる機能です。画面が移動するスピードや、観察倍率なども事前に設 定が可能です。

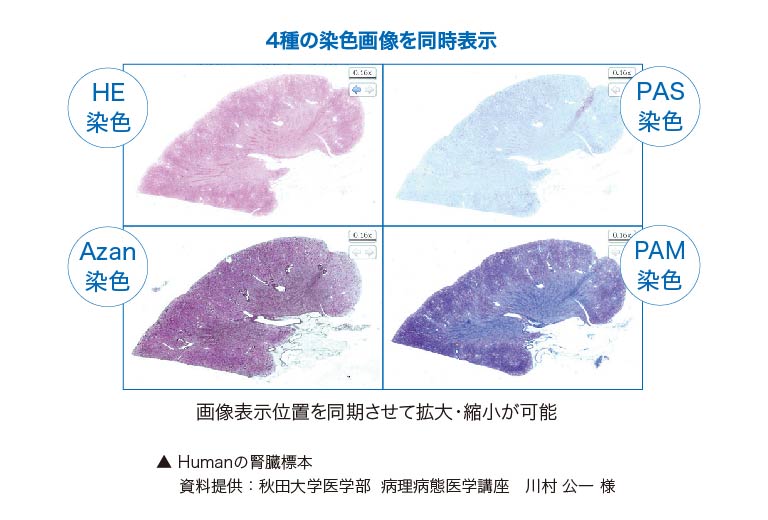

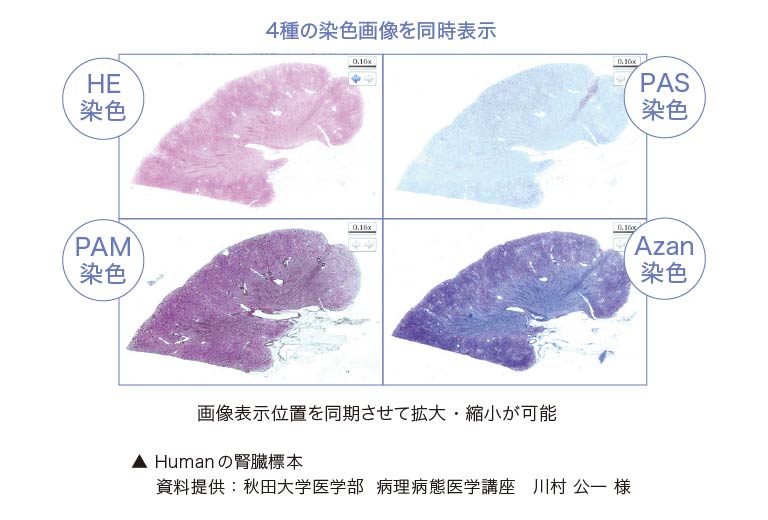

1画面上に複数のサンプルを並べて表示できます。 顕微鏡ステージに複数のスライドを乗せ、まとめて観察するイメージです。
あらかじめTMAに合わせてコアの位置を手動設定しておくことで、素早くコ アごとに画像を切り替えて表示することができます。また、コアごとの位置情 報やスコアリングを記録することができ、そのままcsvファイルとしてエクス ポートすることも可能です。

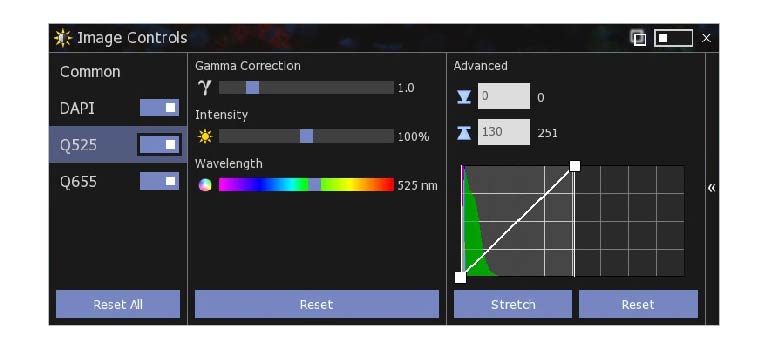

Look Up Table(LUT)の表示が可能です。入力及び出力輝度の特性を簡単 に変更でき、ヒストグラム、ラインプロファイルの表示も可能です。
