イッテルビウムファイバ増幅モジュール
aeroGAIN-RODシリーズ
特長
- 回折限界のビーム品質
- 高ピークパワーに対する高い損傷耐性
- コンパクトな形状
- 高NA励起クラッド
- 1030 nmに最適化
- PMおよび非PM増幅に対応
製品詳細
優れたシングルモード増幅
aeroGAIN-RODは、従来マルチモードシステムで対応していた出力領域において、シングルモードでの増幅を実現します。シングルモード増幅には、マルチモードシステムと比較して以下の利点があります。
・高い出力安定性
・優れたビーム品質
・ファイバの強い曲げによるモード制御が不要
優れたモード品質と容易な結合特性により、aeroGAIN‑RODは高出力アンプの増幅媒体として適しています。アルミニウム筐体により、OEM用途や科学実験室でのセットアップにおいて、取り扱いや設置が容易に行えます。クイックカップリングを備えた一体型水冷機構を採用し、効率的な熱管理と長期安定動作を実現しています。励起光は、高い信頼性、高い損傷閾値、および高NA (開口数)を備えたエアクラッド技術を用いて導光されます。本モジュールには、高出力対応のARコート付きエンドキャップを標準装備しています。
仕様
光学的特性
| AEROGAIN-ROD 2.1 | AEROGAIN-ROD 3.1 | AEROGAIN-ROD 3.2 | |
| コア径 | ≈ 85 μm | ||
| 推奨中心波長 | ≈ 1030 nm | ||
| 励起クラッドNA (FWHM @950 nm) | ≥ 0.50 | ||
| ゲインファイバ長 | 804 mm ± 3 mm | 604 mm ± 3 mm | |
| クラッド吸収 @915 nm | 5 dB ± 0.7 dB | 5.7 dB ± 0.7 dB | 4.3 dB ± 0.6 dB |
| クラッド吸収 @976 nm | ≈ 15 dB (参考値) | ||
| PER *1 | ≥ 15 dB | ||
| 光学効率 *1 | ≥ 60 % | ≥ 40 % | |
| ビーム品質 *1 | M2 ≤ 1.3 | M2 ≤ 1.2 | |
| モードフィールド径 1/e² [µm] *2 | 65 μm ± 10 % | ||
| 平均光出力 | ≤ 100 W | ≤ 250 W | ≤ 150 W |
| 励起クラッド径 | 260 ± 15 μm | ||
*1 公称動作条件下における値: シード光レベル5 W @1030 nm、976 nm励起、信号光出力≥ 100 W
*2 MFDは熱負荷によって減少し、動作条件に依存します。典型的な減少量は、信号光出力に対して0.1 ％/Wのオーダーです。
機械的特性
| AEROGAIN-ROD 2.1 | AEROGAIN-ROD 3.1 | AEROGAIN-ROD 3.2 | |
| 寸法 (W × L × H) | 35 mm × 817 mm × 35.2 mm | ||
| 質量 | 2.5 kg | 1.9 kg | |
| エンドキャップ長 | 5 mm | ||
| エンドキャップ径 | 6 mm | ||
| エンドキャップコーティング反射率 @1030 nm | ≤ 0.2 % | ||
| エンドキャップコーティング反射率 @976 nm | ≤ 0.3 % | ||
| エンドキャップ角度 (入力側) | ≤ 0.5 ° | ||
| エンドキャップ角度 (出力側) | 2 ± 0.7 ° | ||
| 光軸高さ | 25 mm | ||
水冷特性
| AEROGAIN-ROD 2.1 | AEROGAIN-ROD 3.1 | AEROGAIN-ROD 3.2 | |
| 水冷接続 | 8 mm × 1/4” BSPP | ||
| 推奨冷却水流量 *1 | > 1 L/min | ||
| 推奨冷却水温度 *1 | 25 ℃ | ||
| 動作温度 | +20 ℃ ～ +30 ℃ (周囲温度) | ||
| 保存温度 | -20 ℃ ～ +60 ℃ (周囲温度) | ||
*1 アルミニウム製冷却回路を保護するため、防錆剤を添加した脱イオン水の使用を推奨します。必要な冷却水流量および冷却水温度は、実際の光学系のパラメータによって異なります。
外形寸法図 (単位: mm)

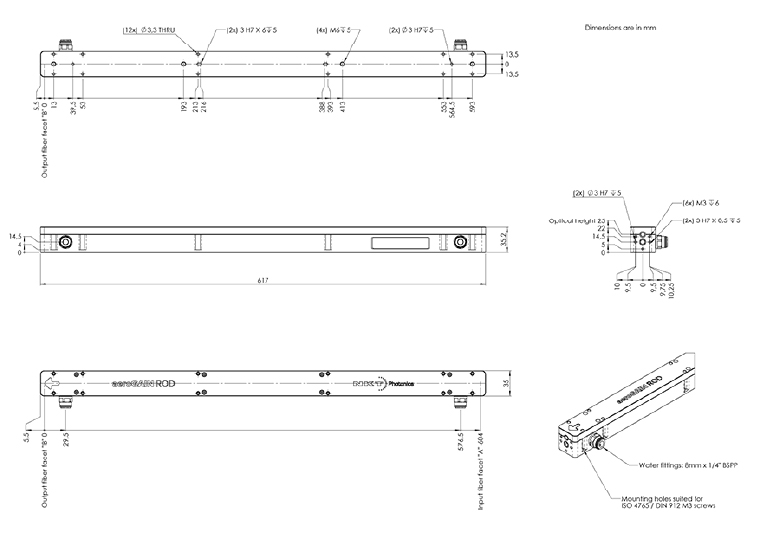

AEROGAIN-ROD 2.1 / 3.1

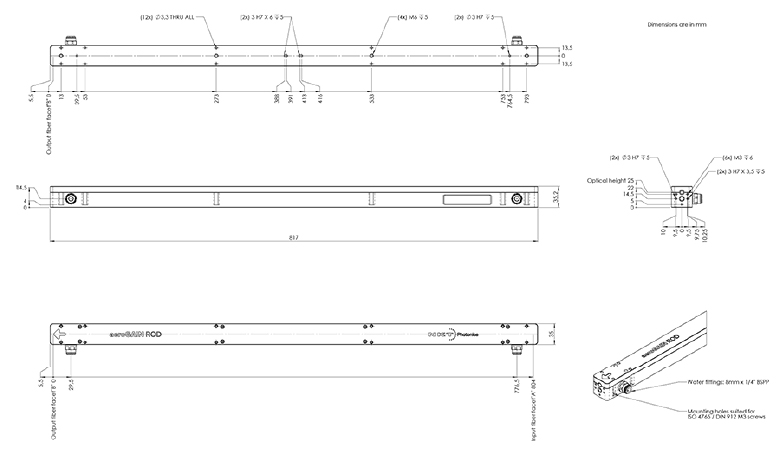

AEROGAIN-ROD 3.2
