MCP（マイクロチャンネルプレート）
F2226-24
/e_mcp-assemblies_pp02_xx.jpg/_jcr_content/renditions/thumb-e_mcp-assemblies_pp02_xx.jpg)
MCPは、ガラスキャピラリを束ねて薄い板状に仕上げた二次元電子増倍器です。F2226-24は、2枚のMCPを内蔵した有効径Φ77 mmのアッセンブリタイプのMCPです。
仕様
| 項目 | F2226-24S | F2226-24P | 単位 | |
|---|---|---|---|---|
| MCP段数 | 2 | ー | ||
| 有効エリア | Φ77 | mm | ||
| 信号読み出し系 | シングルアノード | 蛍光面 | ー | |
| チャンネル径 | 25 | µm | ||
| ゲイン*1 | Min. | 1 × 106 | ー | |
| パルス波高分解能*1 | Max. | 120 | ％ | |
| ダークカウント*1 | Max. | 3 | S-1・cm2 | |
| MCP供給電圧*2 | 2.0 | kV | ||
| MCP-OUT-アノード間供給電圧*2 | 0.5 | 3.0 ～ 4.0 | kV | |
*1: 供給電圧1.0 kV/MCP, 真空度1.3 × 10-4 Pa, 周囲温度+25 ℃
*2: 真空度1.3 × 10-4 Pa

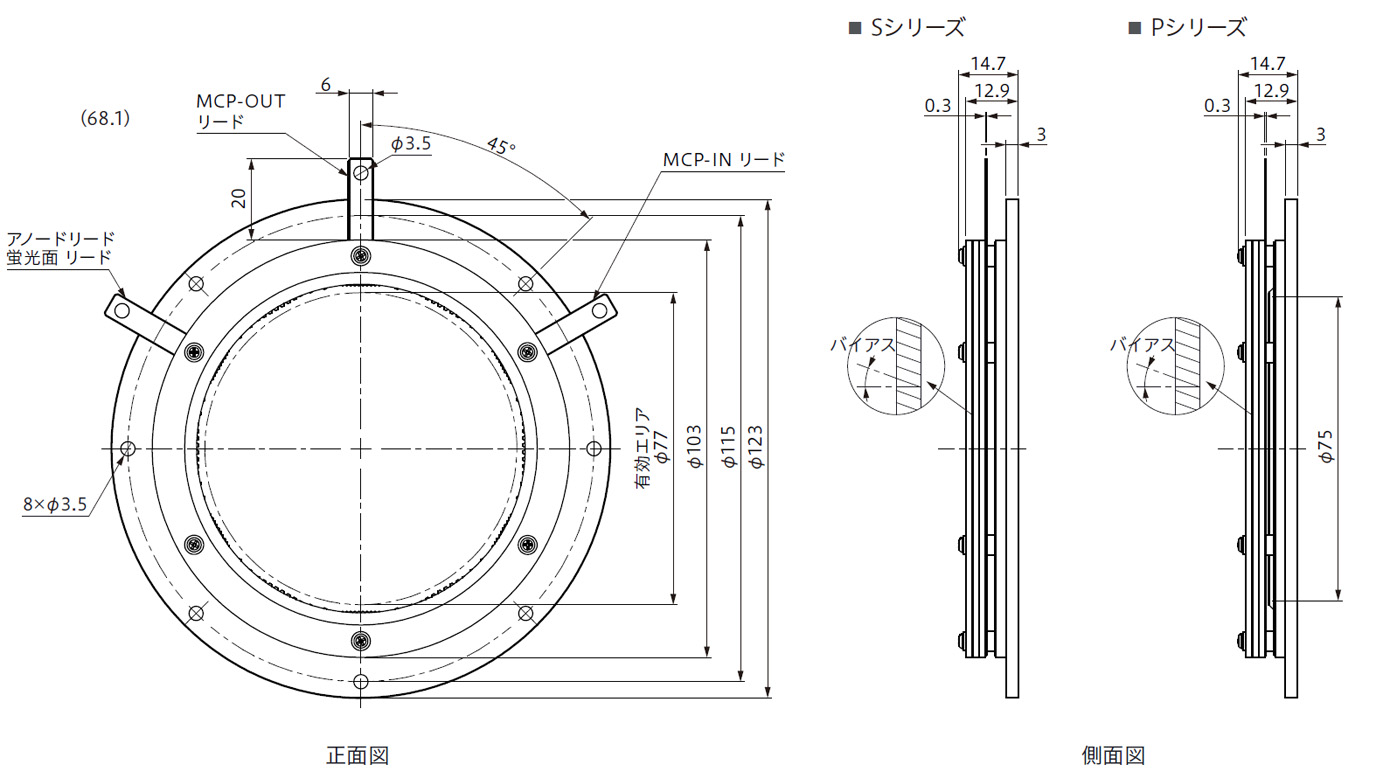

外形寸法図（単位：mm）
