|受光面サイズ||2.4 × 2.8 mm|
|逆電圧 max.||30 V|

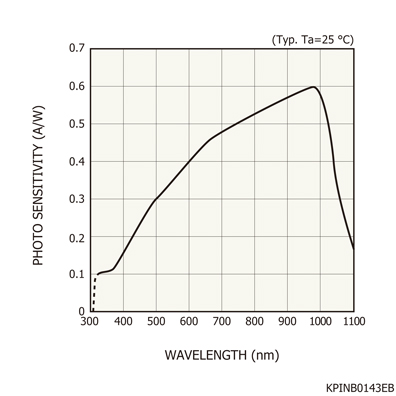

|最大感度波長 typ.||960 nm|
|受光感度 typ.||0.52 A/W|
|暗電流 max.||10000 pA|
|遮断周波数 typ.||30 MHz|
|端子間容量 typ.||10 pF|
|雑音等価電力 typ.||9.4×10-15 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=780 nm, 暗電流: VR=20 V, 遮断周波数: VR=20 V, 端子間容量: VR=20 V, f=1 MHz, 雑音等価電力: VR=20 V, λ=λp|
