|受光面サイズ||5.8 × 5.8 mm|
|逆電圧 max.||5 V|

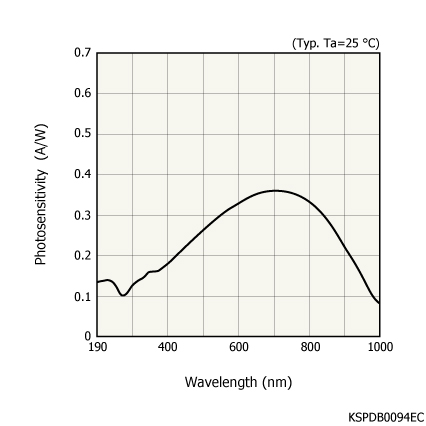

|最大感度波長 typ.||720 nm|
|受光感度 typ.||0.36 A/W|
|暗電流 max.||20 pA|
|上昇時間 typ.||2 μs|
|端子間容量 typ.||950 pF|
|雑音等価電力 typ.||5×10-15 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=720 nm, 暗電流: VR=10 mV, 端子間容量: VR=0 V, f=10 kHz|
