Si PINフォトダイオード
S12271
紫外～近赤外域用、大面積高速PINフォトダイオード
S12271は、φ4.1 mmという広い受光面サイズをもち、高速応答を実現したSi PINフォトダイオードです。受光窓に石英ガラスを使用しているため、紫外域まで高い感度をもち、光パワーメータなどの用途に適しています。
■特長
・石英ガラス窓
・高紫外感度
・大受光面サイズ: φ4.1 mm
・高速応答: 60 MHz (VR=100 V)
| 受光面サイズ | φ4.1 mm |
|---|---|
| 素子数 | 1 |
| パッケージ | メタル |
| パッケージカテゴリ | TO-8 |
| 冷却 | 非冷却 |
| 逆電圧 max. | 120 V |
| 感度波長範囲 | 190～1100 nm |
| 最大感度波長 typ. | 960 nm |
| 受光感度 typ. | 0.5 A/W |
| 暗電流 max. | 30000 pA |
| 遮断周波数 typ. | 60 MHz |
| 端子間容量 typ. | 10 pF |
| 雑音等価電力 typ. | 1.5×10-14 W/Hz1/2 |
| 測定条件 | 指定のない場合はTyp. Ta=25 ℃, 受光感度:λ=960 nm, 暗電流: VR=100 V, 遮断周波数: VR=100 V, 端子間容量: VR=100 V, f=1 MHz, 雑音等価電力: VR=100 V, λ=λp |

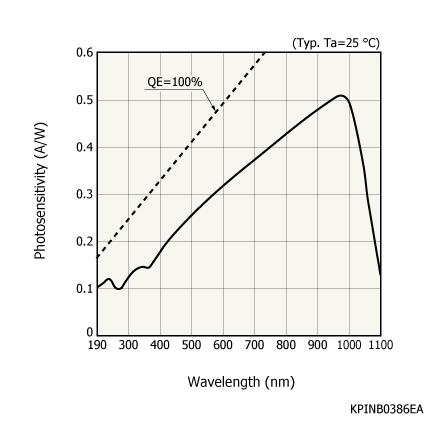

分光感度特性
外形寸法図 (単位: mm)
関連ドキュメント
