Si PINフォトダイオード S8650のエポキシ樹脂でコーティングされた表面は、平坦に (平坦度: ±5 μm)加工されています。 そのためシンチレータを接着する際、泡の混入が起こりにくく、非常に高いカップリング特性が実現されます。 なお、その他のセラミックパッケージ製品の平坦加工にも特注で応じられますので、お気軽にご用命ください。
|受光面サイズ||10 × 10 mm|
|逆電圧 max.||100 V|

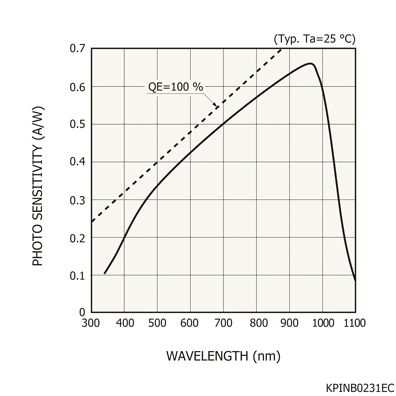

|最大感度波長 typ.||960 nm|
|受光感度 typ.||0.66 A/W|
|暗電流 max.||6000 pA|
|遮断周波数 typ.||40 MHz|
|端子間容量 typ.||40 pF|
|雑音等価電力 typ.||3.8×10-14 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=70 V, 遮断周波数: VR=70 V, 端子間容量: VR=70 V, ｆ=1 MHZ, 雑音等価電力: VR=70 V, λ=λp|
