フローコントロールユニット
C16877-01, C17077-01/-02
フローコントロールユニットは定圧制御で空気の加圧/減圧が可能で、マイクロ流路の送液等に最適な小型空圧ポンプユニットです。弊社オプティカルブロックや光電子増倍管モジュールと組み合わせることにより、液体サンプルに対してさまざまな微弱光計測を可能にします。
特長
- 空圧ポンプ内蔵（外部圧力源不要）
- 優れた圧力精度（低脈動）： ±5 %
- 圧力分解能： 0.1 kPa
- 吐出（吸引）応答： 0.5 s以下
- 専用コントローラによる容易な操作性（PCレス）（C16877-01）
- PCへUSB接続し、プログラム操作が可能（C16877-01）
用途
- フロー分析
- ナノ／マイクロ粒子の合成
- セルソータ、フローサイトメトリ
- 化学合成（マイクロ反応場）
圧力特性 *¹
| 項目 | C17077-01 | C17077-02 | 単位 |
|---|---|---|---|
| タイプ | 加圧 | 減圧 *² | - |
| 吐出加圧範囲（吸引減圧範囲） | +3 ～ +50 | -3 ～ -30 | kPa |
| 吐出加圧精度（吸引減圧精度） | ±5 | % | |
| 圧力分解能 | 0.1 | kPa | |
| 吐出応答 *³（吸引応答） | 0.5 Max. | s | |
*1 計測条件：特性評価圧力計とフローモジュールの間のチューブは外径1/16 in、内径Φ200 μm、長さ300 mm
計測環境：環境温度18 ℃ ～ 28 ℃、気圧950 hPa ～ 1020 hPa
*2 減圧タイプは装置内へ試料の誤吸入を防止するため配管にはトラップを中継してください。
*3 出力をON ⇔ OFFさせた時の吐出（吸引）応答性
※出力停止時、配管チューブ内の圧力は大気圧に開放されます。
配管接続
| 項目 | C17077-01 |
|---|---|
| 配管接続口 | 1/4-28 UNF（フランジレスフィッティング） |
| 配管接続口フィルタ*⁴ | メンブレンフィルタ 孔径： 3 μm |
| 接続チューブ外径 | Φ1/16 in（1.6 mm）、Φ1/8 in（3.2 mm） |
| 媒体 | 空気（フローモジュール設置雰囲気） |
| 変換アダプタ（付属品） | 変換アダプタを用いることで1/4-28 UNFをΦ4 mmの円筒に変換できます。 市販リザーバー等との接続に必要な際にご使用ください。 |
*4 標準で市販品のメンブレンフィルタを搭載。交換可能です。

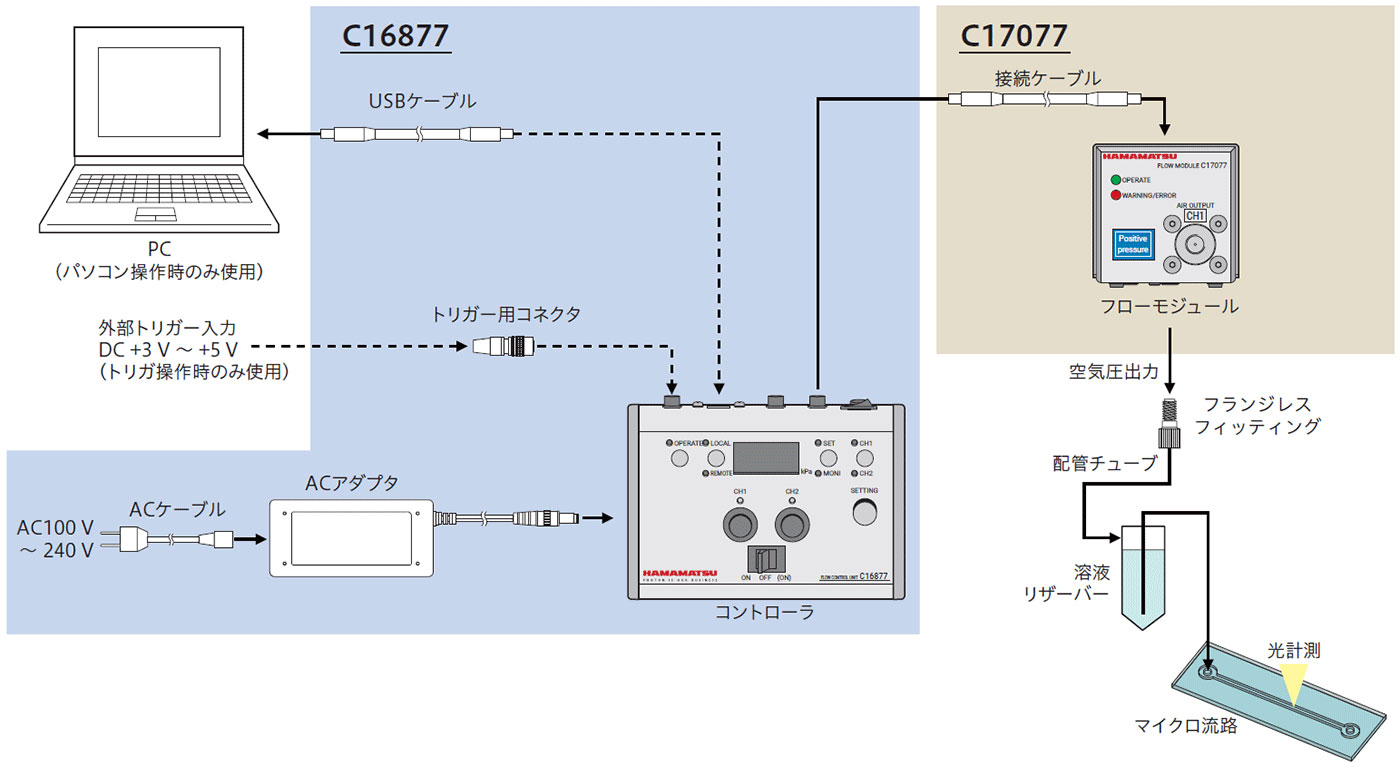

構成品
外形寸法図（単位：mm）

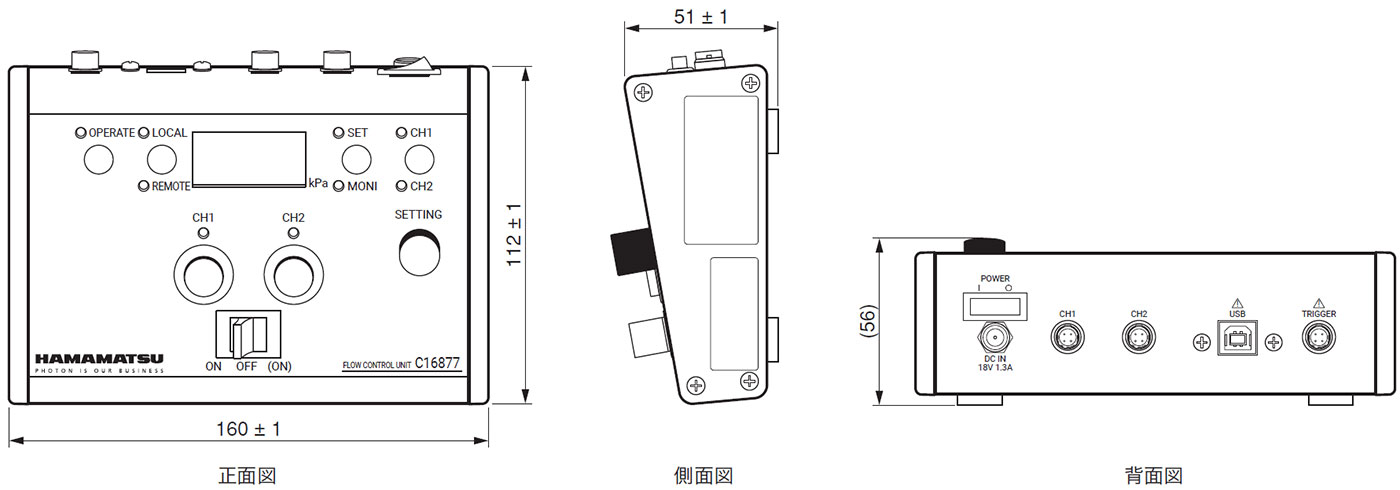

コントローラ C16877-01

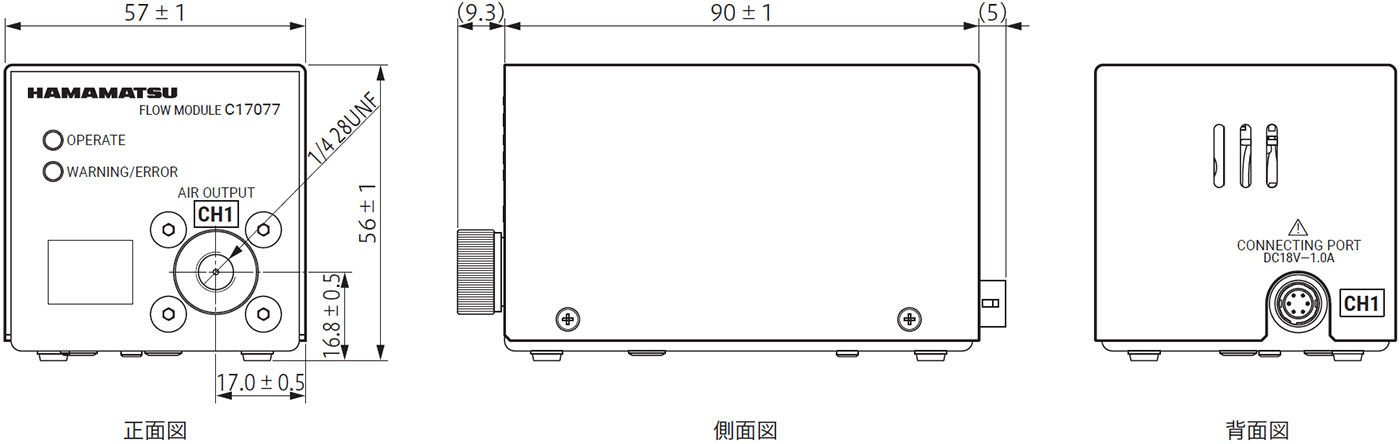

フローモジュール C17077-01/-02
