|感度波長 (Short)||230 nm|
|感度波長 (Long)||700 nm|
|感度波長 (Peak)||400 nm|

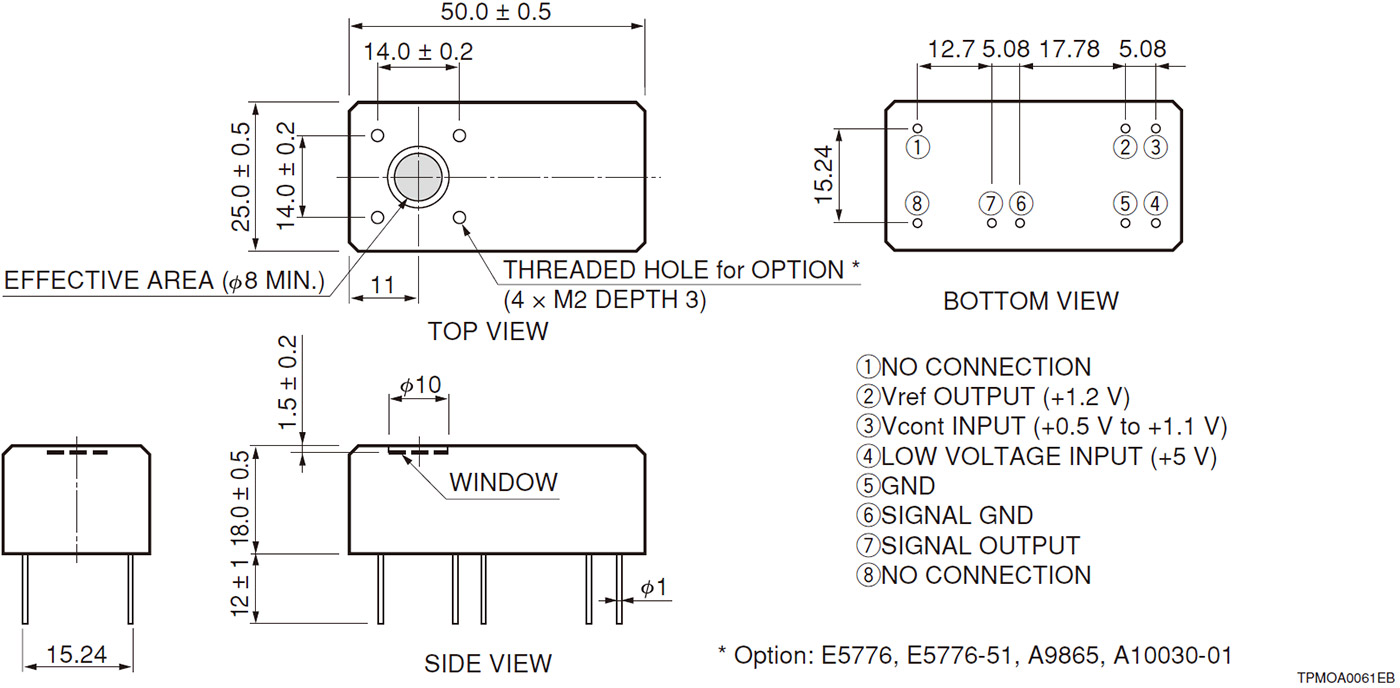

|外形寸法 (W x H x D)||50.0 x 25.0 x 18.0 mm|
|[陰極特性] ルーメン感度 Min.||80 μA/lm|
|[陰極特性] ルーメン感度 Typ.||105 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||13.5|
|[陰極特性] 放射感度 Typ.||110 mA/W|
|[陽極特性] ルーメン感度 Min.||80 A/lm|
|[陽極特性] ルーメン感度 Typ.||210 A/lm|
|[陽極特性] 放射感度 Typ.||2.2 x 105 A/W|
|[陽極特性] Pタイプダークカウント Typ.||50 s-1|
|[陽極特性] Pタイプダークカウント Max.||100 s-1|
|[時間特性] 上昇時間 (Tr) Typ.||0.57 ns|
|リップルノイズ （peak to peak） Max.||0.1 mV|
|セトリングタイム Max.||10 s|
