|感度波長 (Short)||230 nm|
|感度波長 (Long)||920 nm|
|感度波長 (Peak)||630 nm|

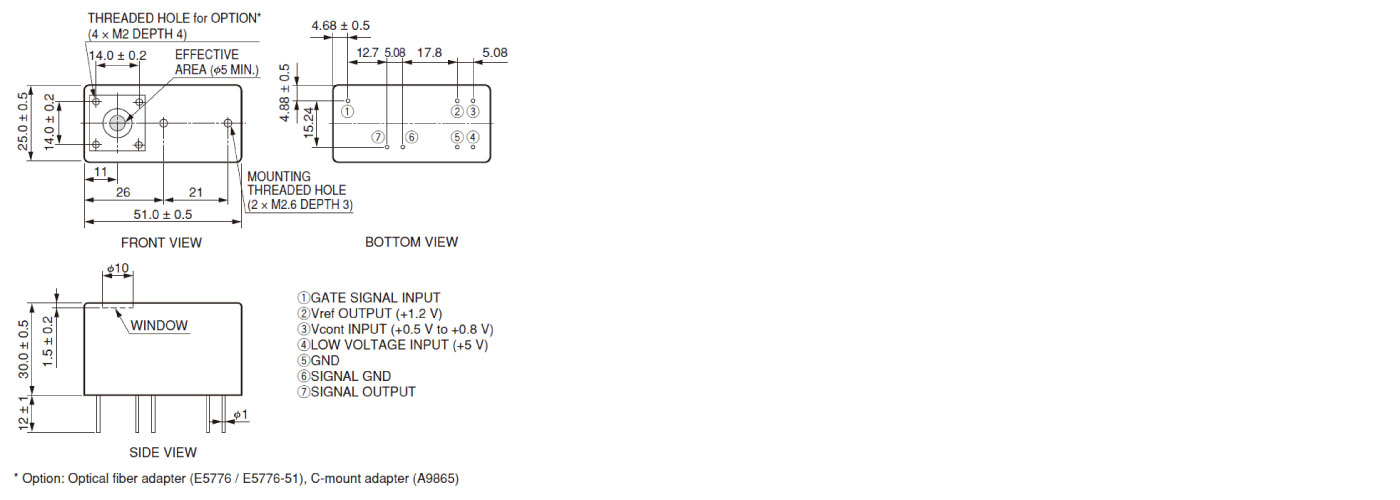

|外形寸法 (W x H x D)||51.0 x 30.0 x 25.0 mm|
|[陰極特性] ルーメン感度 Min.||350 μA/lm|
|[陰極特性] ルーメン感度 Typ.||500 μA/lm|
|[陰極特性] 赤感度比 Typ.||0.45|
|[陰極特性] 放射感度 Typ.||78 mA/W|
|[陽極特性] ルーメン感度 Min.||350 A/lm|
|[陽極特性] ルーメン感度 Typ.||1000 A/lm|
|[陽極特性] 放射感度 Typ.||1.5 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||10 nA|
|[陽極特性] 暗電流(30分後) Max.||100 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.57 ns|
|リップルノイズ （peak to peak） Max.||0.6 mV|
|セトリングタイム Max.||10 s|
