フォトンカウンティングヘッド
H10682-110W
H10682-110Wは、メタルパッケージ光電子増倍管と高速フォトンカウンティング回路、高圧電源を内蔵した小型フォトンカウンティングヘッドです。+5 Vを入力するだけでフォトンカウンティング計測が行えます。薄型でありながら高い集光効率を実現する新設計の集光レンズを取り付けています。
仕様
| 受光面形状 | 円形 |
|---|---|
| 受光面サイズ | φ21 mm |
| 感度波長 (Short) | 380 nm |
| 感度波長 (Long) | 700 nm |
| 感度波長 (Peak) | 400 nm |
| 外形寸法 (W x H x D) | 24.0 mm x 37.0 mm x 47.0 mm |
| 入力電圧 | +4.75 V ～ +5.25 V |
| 最大入力電圧 | 6 V |
| 最大入力電流 | 40 mA |
| 計数感度 at 400 nm Typ. | 3.8 x 105 s-1・pW-1 |
| 計数感度 at 500 nm Typ. | 3.0 x 105 s-1・pW-1 |
| 計数感度 at 600 nm Typ. | 8.8 x 104 s-1・pW-1 |
| 計数感度 at 700 nm Typ. | 6.0 x 103 s-1・pW-1 |
| カウントリニアリティ | 5.0 x 106 s-1 |
| ダークカウント Typ. | 50 s-1 |
| ダークカウント Max. | 100 s-1 |
| パルスペア分解能 | 20 ns |
| 出力パルス幅 | 10 ns |
| 出力パルス波高 Min. | 2 V |
| 出力パルス波高 Typ. | 2.2 V |
| 推奨負荷抵抗 | 50 Ω |
| 信号出力論理 | 正論理 |
| 動作周囲温度 | +5 ℃ ～ +40 ℃ |
| 保存温度 | -20 ℃ ～ +50 ℃ |
| 質量 | 50 g |

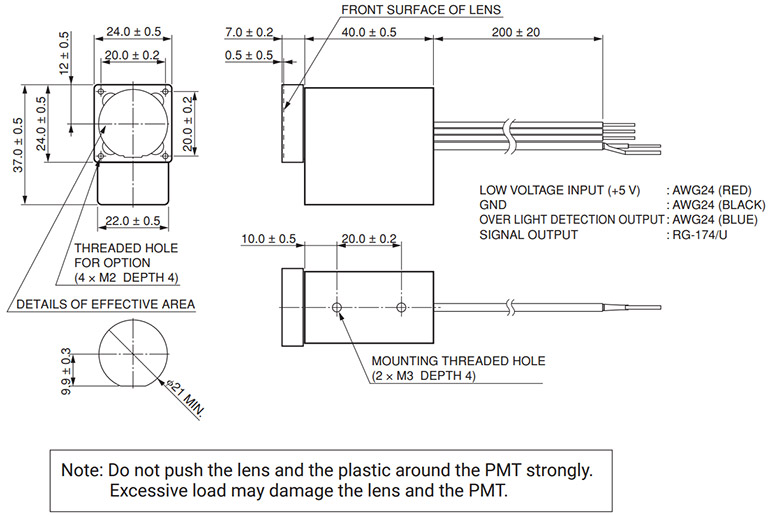

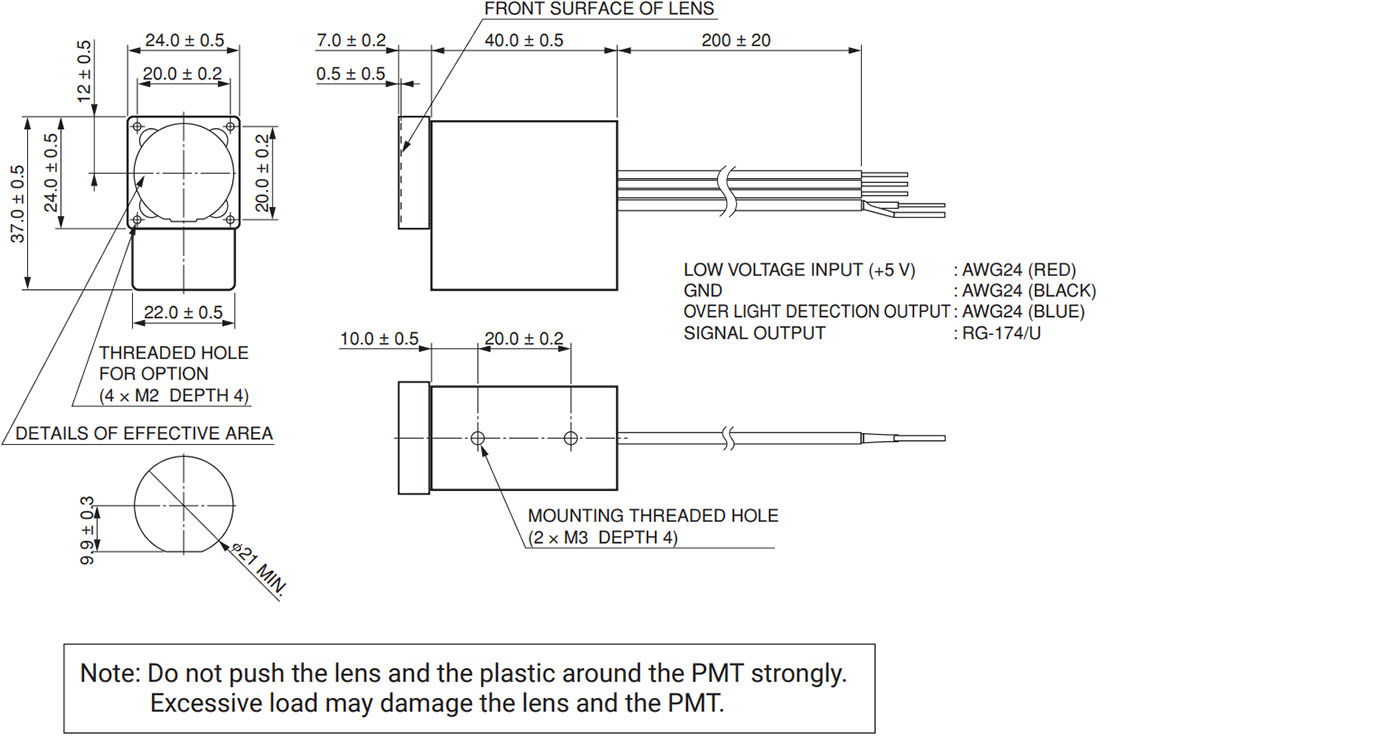

外形寸法図 (単位: mm)
