|感度波長 (Short)||230 nm|
|感度波長 (Long)||870 nm|
|感度波長 (Peak)||400 nm|

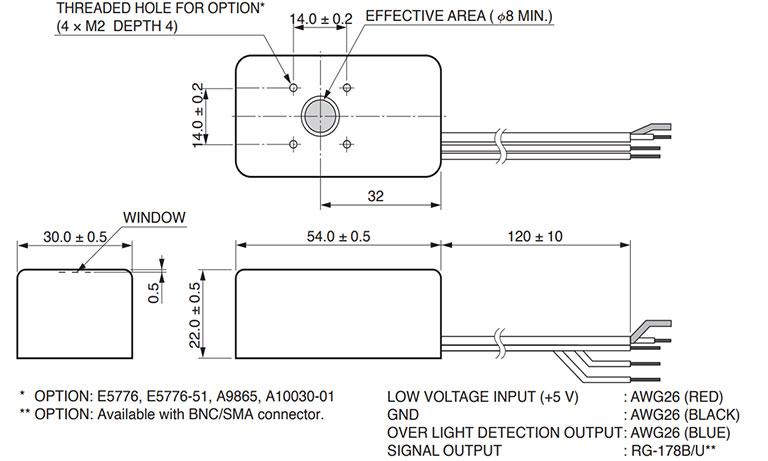

|外形寸法 (W x H x D)||30.0 mm x 22.0 mm x 54.0 mm|
|入力電圧||+4.75 V ～ +5.25 V|
|計数感度 at 300 nm Typ.||2.7 x 105 s-1・pW-1|
|計数感度 at 400 nm Typ.||3.6 x 105 s-1・pW-1|
|計数感度 at 500 nm Typ.||2.8 x 105 s-1・pW-1|
|計数感度 at 600 nm Typ.||2.0 x 105 s-1・pW-1|
|計数感度 at 700 nm Typ.||1.2 x 105 s-1・pW-1|
|計数感度 at 800 nm Typ.||3.0 x 104 s-1・pW-1|
|カウントリニアリティ||5.0 x 106 s-1|
|ダークカウント Typ.||600 s-1|
|ダークカウント Max.||1000 s-1|
|出力パルス波高 Min.||2 V|
|出力パルス波高 Typ.||2.2 V|
|動作周囲温度||+5 ℃ ～ +40 ℃|
|保存温度||-20 ℃ ～ +50 ℃|
