紫外線積算光量計
C9536/H9958 SERIES
紫外光の絶対値光量を測定するための光パワーメータです。紫外波長領域の広範囲で応答度がフラットであるため、測定光源の発光波長分布に依存することなく、感度範囲内の光量を測定することができます。一般に市販されているUVパワーメータとは異なり、これ1台で紫外域のさまざまな光源の光量測定が発光波長ごとの補正をすることなく簡単にできます。 高出力UV-LED光源の光量測定には、C9536-02とH9958-02の組合わせが適しています。 また、光触媒用光源の光量測定用パワーメータとして、C9536-01とH9958の組合せは光触媒JIS R 1709で推奨されています。
特長
- 国家計量標準トレーサブルによる絶対値光量管理 (校正証明書添付)
- 広い範囲の紫外波長域でフラットな分光応答特性
- 高感度 (1 μW/cm2 ～) (H9958, H9958-01)
- 高出力UV-LEDに対応 (H9958-02)
- 光触媒用光パワーメータとして最適 (H9958)
測定光源例
- ブラックライト
- UV LED
- 紫外線(UV-A)
- 水銀キセノンランプ
- 高圧水銀ランプ
- 重水素ランプ
仕様
コントローラ : C9536-01/C9536-02
| 項目 | 内容 / 値 | |
|---|---|---|
| 測定モード | 連続 | サンプリングレート1秒の連続測定モード |
| 積算 | 一定時間の積算結果を表示するモード (1秒間隔で1秒～5分まで設定可) | |
| ワンショット(C9536-01のみ) | STARTスイッチを押すごとに、1回測定するモード | |
| ピークホールド(C9536-02のみ) | 連続測定時のピーク値を保持するモード | |
| 外部インターフェース | RS-232C | |
| 電源 | 内蔵バッテリおよびACアダプタ | |
| 外形寸法(W×H×D) | 75mm × 110mm × 20mm | |
| 動作周囲温度 / 湿度 | 0 ℃ ～ +40 ℃ / 80 %RH以下 （結露なきこと） | |
| 保存温度 / 湿度 | -20 ℃ ～ +50 ℃ / 80 %RH以下 （結露なきこと） | |
| 質量 | 約285 g | |
付属品：RS-232Cケーブル(2 m)、アナログ出力ケーブル(2 m)、ACアダプタ、ACケーブル
外部通信インターフェースを用いて当製品を制御する際は、お客様自身でソフトウェアを自作してください。
センサヘッド : H9958シリーズ
| 項目 | 内容 / 値 | ||
|---|---|---|---|
| 対応コントローラ | C9536-01 | C9536-02 | |
| センサヘッド型名 | H9958 | H9958-01 | H9958-02 |
| 感度波長範囲 | 310 nm ～ 380 nm | 300 nm ～ 410 nm | |
| 有効受光面サイズ | φ10 mm | φ1 mm | |
| 測定範囲 | 1 μW/cm2 ～ 100 mW/cm2 | 100 μW/cm2 ～ 10 W/cm2 | |
| 外形寸法 (W × H × D) | 55 mm × 75mm × 18 mm | ||
| 動作周囲温度 / 湿度 | 0 ℃ ～ +45 ℃ / 80 %RH以下 （結露なきこと） | 0 ℃ ～ +60 ℃ / 80 %RH以下 （結露なきこと） | |
| 保存温度 / 湿度 | -20 ℃ ～ +50 ℃ / 80 %RH以下 （結露なきこと） | -20 ℃ ～ +60 ℃ / 80 %RH以下 （結露なきこと） | |
| 質量 | 約195 g | ||
特性図

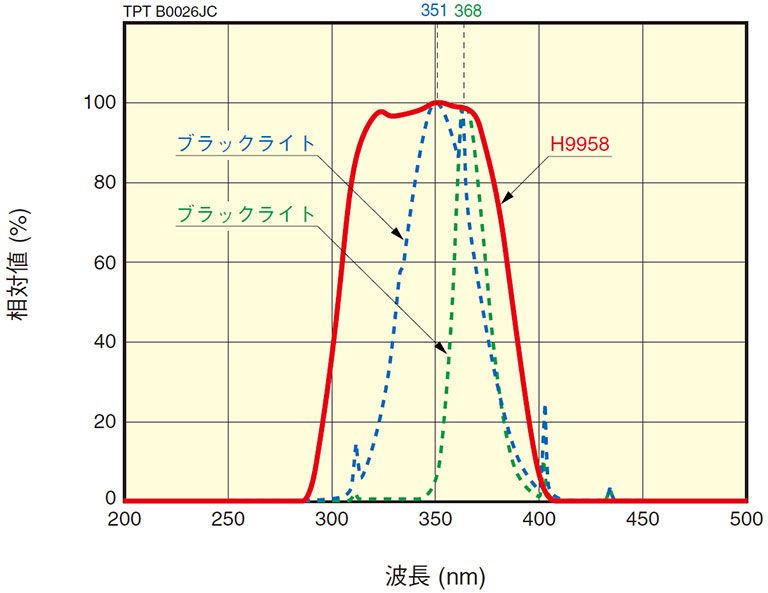

検出部の相対分光応答度特性（代表値）
(H9958 : 310 nm ～ 380 nm)*
* 感度波長範囲外の領域において、若干の応答度があります。

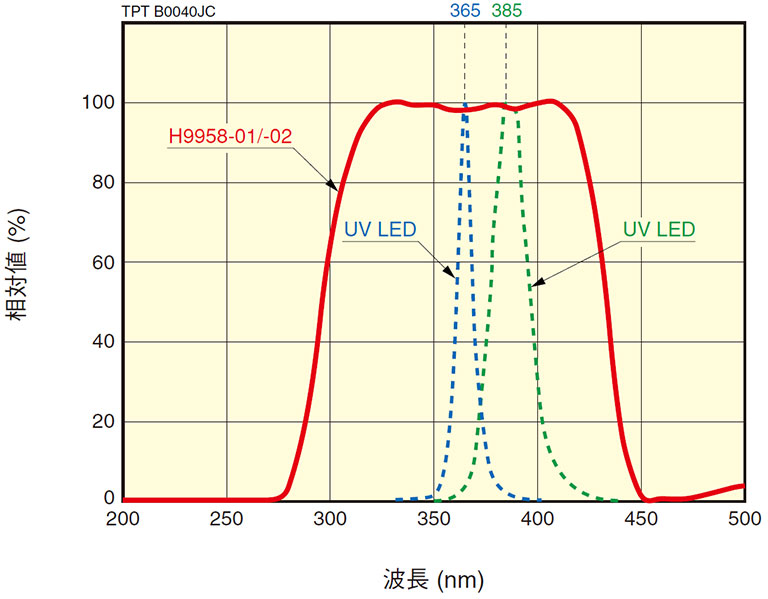

検出部の相対分光応答度特性（代表値）
(H9958-01/-02 : 300 nm ～ 410 nm)*
* 感度波長範囲外の領域において、若干の応答度があります。

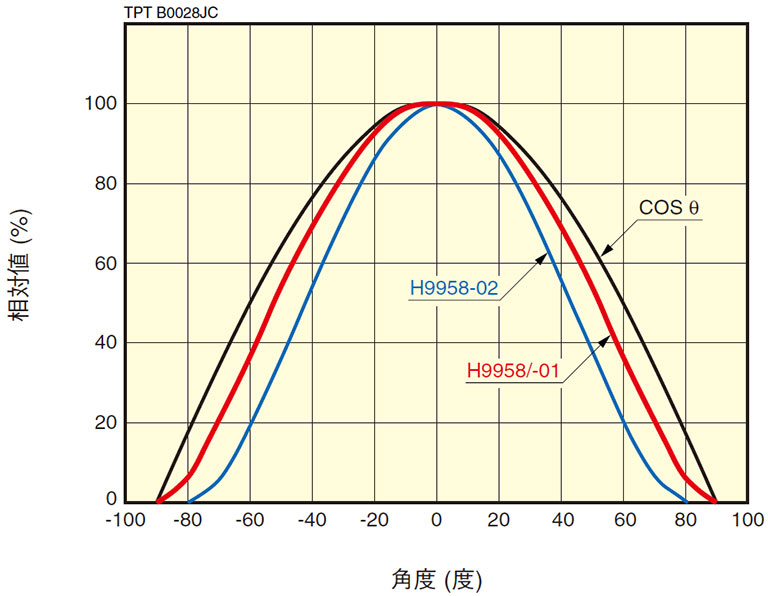

検出部の斜入射光特性（代表値）

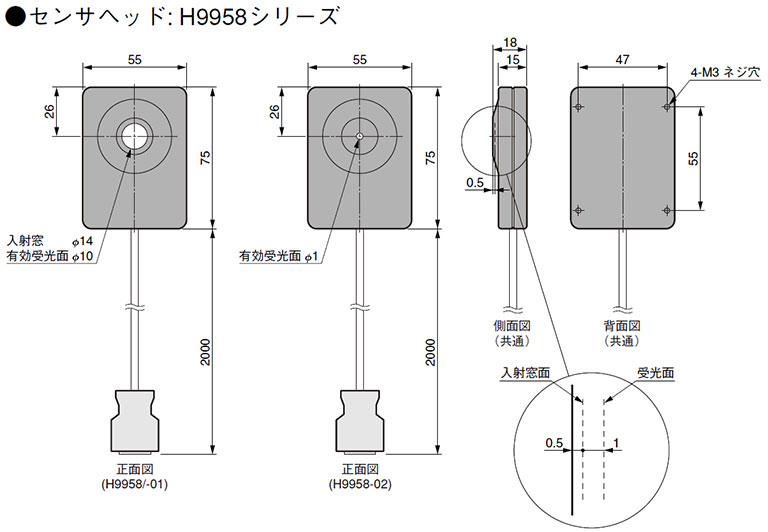

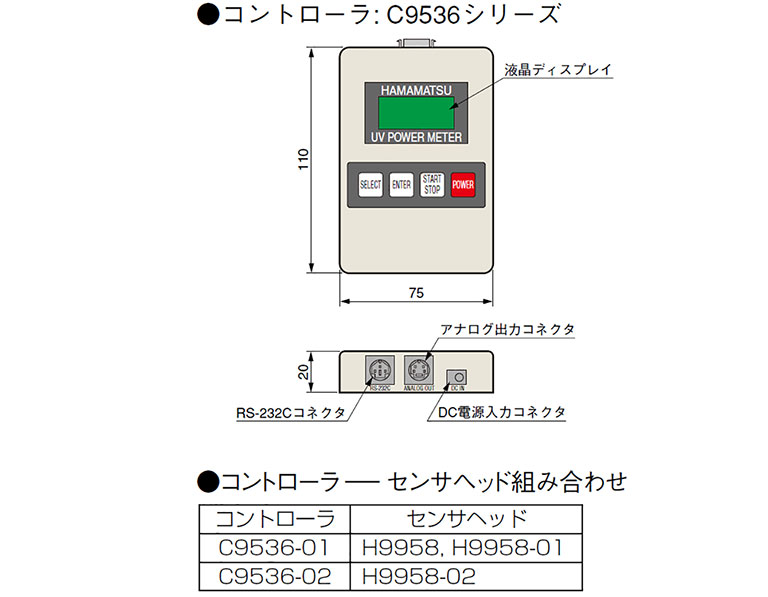

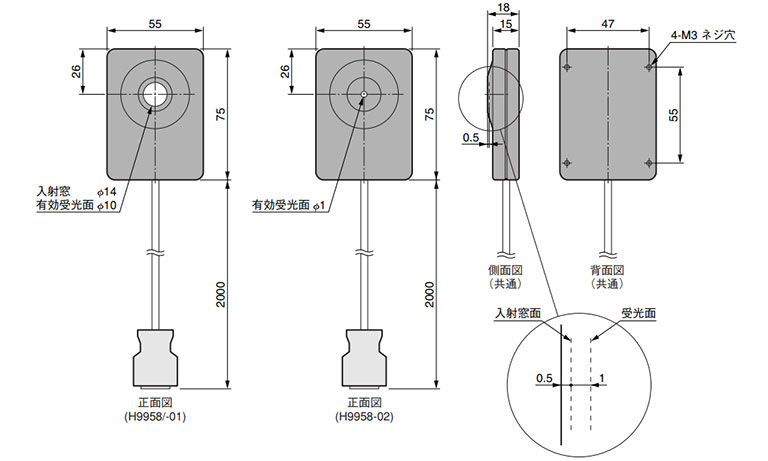

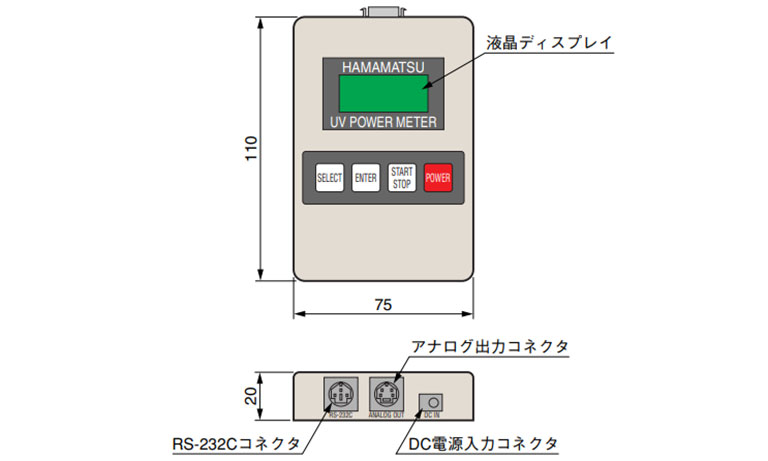

外形寸法図（単位：mm）
| コントローラ | センサヘッド |
|---|---|
| C9536-01 | H9958, H9958-01 |
| C9536-02 | H9958-02 |
