高速ラインレート (50 klines/s)の近赤外イメージセンサ

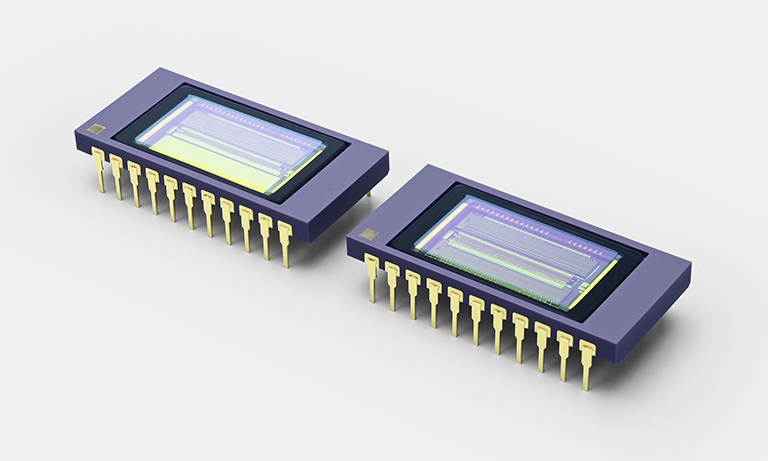

InGaAsリニアイメージセンサ G17225シリーズ
- 浜松ホトニクス株式会社 固体事業部
G17225シリーズは、異物検査用に設計されたInGaAsリニアイメージセンサです。
各画素からの信号は電荷蓄積モードで読み出されるため、広い波長範囲で高い感度と安定した動作が得られます。
外部電圧を変更することで、4種類の変換効率 (CE: conversion efficiency)の中から、用途に適した値を選択できます。
特長
- 高速ラインレート: 50 klines/s max.
- 高速データレート: 20 MHz max.
- 4種類の変換効率から選択可能
- 温度センサを内蔵
- 常温動作
応用例
- 異物検査
- 農産物検査
- SD-OCT
分光感度特性
仕様
| 型名 | G17225-512DE | G17225-1024DK | G17225-1024DG | |
|---|---|---|---|---|
| イメージサイズ (mm) | 12.8 × 0.025 | 12.8 × 0.0125 | 12.8 × 0.25 | |
| 画素サイズ (H × V) (μm) | 25 × 25 | 12.5 × 12.5 | 12.5 × 250 | |
| 画素ピッチ (μm) | 25 | 12.5 | ||
| 有効画素数 | 512 | 1024 | ||
| 感度波長範囲 typ. (μm) | 0.9 ～ 1.7 | |||
| 最大感度波長 typ. (μm) | 1.45 | 1.55 | 1.65 | |
| 変換効率 typ. (μV/e-) | Cf=1.25 pF | 0.128 | ||
| Cf=0.13 pF | 1.23 | |||
| Cf=0.040 pF | 4.0 | |||
| Cf=0.016 pF | 10.0 | |||
