L10660-01は、1.45 μmにピーク発光波長をもつ高出力の赤外LEDです。InGaAsフォトダイオードと組み合わせた用途 に適しています。

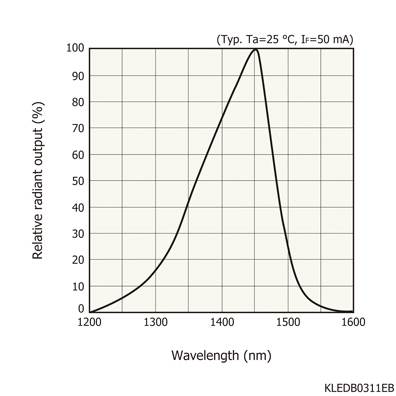

・ピーク発光波長: 1.45 μm
|ピーク発光波長 min.||1400 nm|
|ピーク発光波長 typ.||1450 nm|
|ピーク発光波長 max.||1500 nm|
|スペクトル半値幅 typ.||120 nm|
|放射束 typ.||2.8 mW|
|順電圧 typ.||1 V|
|遮断周波数 typ.||15 MHz|
|測定条件||指定のない場合はTyp. Ta=25 ℃|
