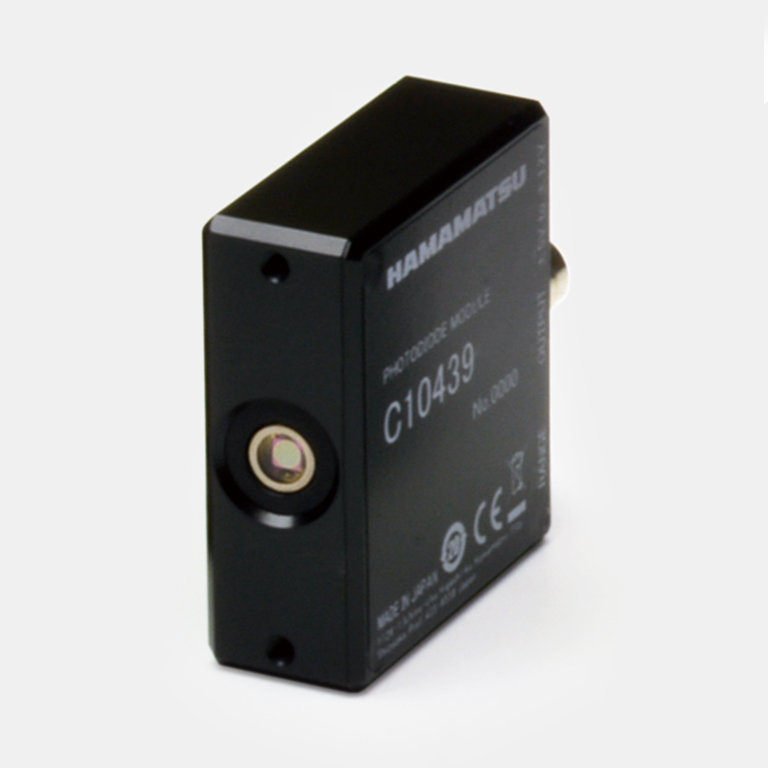

フォトダイオードモジュール C10439シリーズは、フォトダイオードとI/Vアンプを一体化した高精度な光検出器です。 アナログ電圧出力のため、電圧計などで簡単に信号を観測することができます。また本製品には、High/Low 2レンジ切り 替え機能が付いています。検出する光量に応じて適切なレンジ選択を行うことで、高精度な出力を得ることができます。
・ High/Low 2レンジ切り替え機能付き
・光学マウント用ロッド (M4) に固定可能
|受光面サイズ||2.4 × 2.4 (Si), φ1 (InGaAs) mm|
|最大感度波長||940 (Si), 2300 (InGaAs) nm|
|変換インピーダンス||Lowレンジ: 1 × 106
Highレンジ: 1 × 105 V/A
Highレンジ: 10000 Hz
|電源電圧||±5 ～ ±12 V|
|測定条件||指定のない場合はTa=25 ℃, Vs=±12 V|
