|最大感度波長 typ.||1.75 μm|

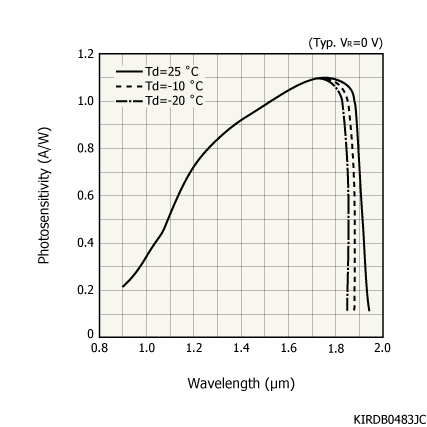

|受光感度 typ.||1.1 A/W|
|暗電流 max.||50 nA|
|遮断周波数 typ.||1.9 MHz|
|端子間容量 typ.||1700 pF|
|雑音等価電力 typ.||3.5×10-14 W/Hz1/2|
|測定条件||指定のない場合はTyp. Tc=-20 ℃, 受光感度: λ=λp, 暗電流: VR=0.5 V, 遮断周波数: VR=0 V, RL=50 Ω, 端子間容量: VR=0 V, f=1 MHz|
