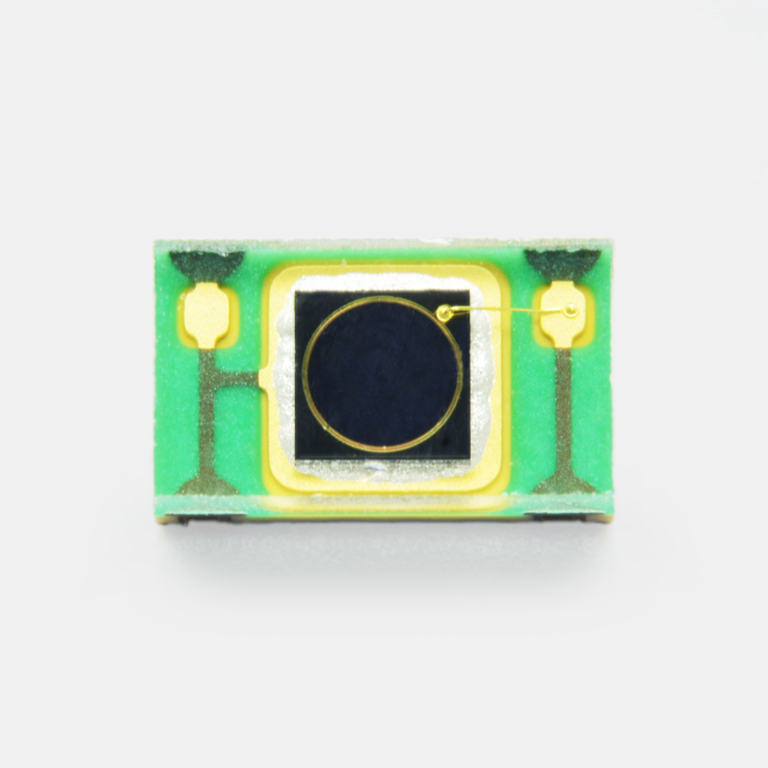

G13176-003Pは、表面実装型COBパッケージの小型・近赤外線検出素子です。従来品のメタルパッケージタイプ(G12180-003A)に比べて、大幅に小型化を実現しました。感度波長は0.9～1.7 μmで（最大感度波長 1.55 μm）、高感度・低ノイズを実現しています。光通信に加え、分析・計測などに利用することができます。小型パッケージのため、ハンディタイプの装置やモバイル機器への搭載に適しています。樹脂を変更することにより従来品 (G11777-003P)に比べてリフロー耐性が向上しています。
|最大感度波長 typ.||1.55 μm|
|受光感度 typ.||1 A/W|
|暗電流 max.||0.8 nA|
|遮断周波数 typ.||600 MHz|
|端子間容量 typ.||5 pF|
|雑音等価電力 typ.||5×10-15 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=5 V, 遮断周波数: VR=5 V, RL=50 Ω, 端子間容量: VR=5 V, f=1 MHz|
