|受光面サイズ||5.9 × 1.1 mm|
|逆電圧 max.||5 V|
|最大感度波長 typ.||960 nm|

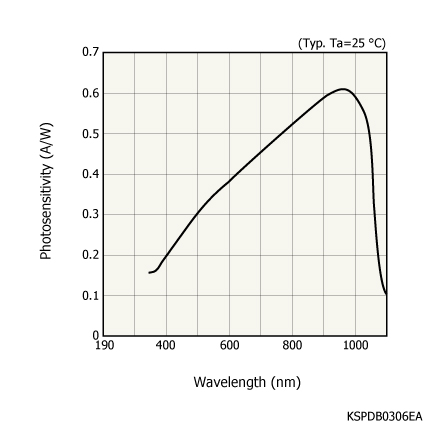

|受光感度 typ.||0.62 A/W|
|暗電流 max.||50 pA|
|上昇時間 typ.||0.2 μs|
|端子間容量 typ.||65 pF|
|雑音等価電力 typ.||8.4×10-15 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=960 nm, 暗電流: VR=10 mV, 端子間容量: VR=0 V, f=10 kHz|
