|受光面サイズ||2.77 × 2.77 mm|
|逆電圧 max.||20 V|
|最大感度波長 typ.||960 nm|

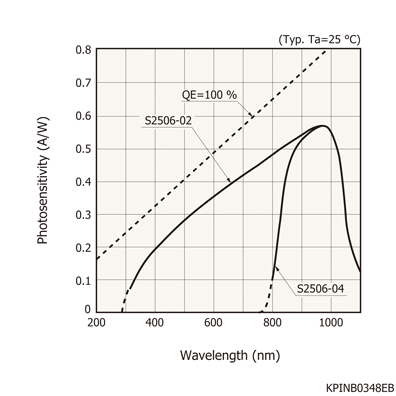

|受光感度 typ.||0.56 A/W|
|暗電流 max.||10000 pA|
|遮断周波数 typ.||25 MHz|
|端子間容量 typ.||15 pF|
|雑音等価電力 typ.||1×10-14 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=780 nm, 暗電流: VR=12 V, 遮断周波数: VR=12 V, 端子間容量: VR=12 V, f=1 MHz, 雑音等価電力: VR=12 V|
