Si PINフォトダイオード
S8729-04
SIP型プラスチックパッケージ
S8729-04は、大面積汎用Si PINフォトダイオードです。従来品に比べ、パッケージを小型化 (パッケージ容積比75 %減)しています。
■特長
・小型プラスチックパッケージ: 4 × 4.8 × 1.8tmm
・2ピンSIPリード型 (リード長: 4.9 mm)
・高感度、高速応答
・赤外域用 (λ=760～1100 nm)
・受光面サイズ: 2 × 3.3 mm
| 受光面サイズ | 2 × 3.3 mm |
|---|---|
| 素子数 | 1 |
| パッケージ | プラスチック |
| 冷却 | 非冷却 |
| 逆電圧 max. | 20 V |
| 感度波長範囲 | 760～1100 nm |
| 最大感度波長 typ. | 960 nm |
| 受光感度 typ. | 0.68 A/W |
| 暗電流 max. | 2000 pA |
| 遮断周波数 typ. | 25 MHz |
| 端子間容量 typ. | 16 pF |
| 雑音等価電力 typ. | 1.2×10-14 W/Hz1/2 |
| 測定条件 | 指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=960 nm, 暗電流: VR=5 V, 遮断周波数: VR=5 V, 端子間容量: VR=5 V, f=1 MHz, 雑音等価電力: λ=λp |

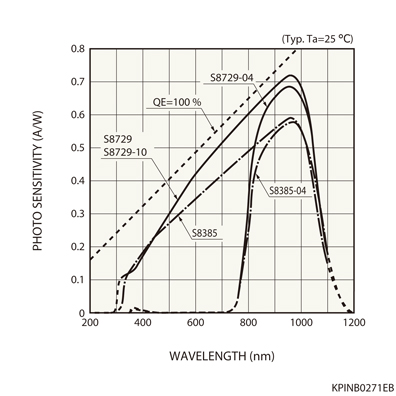

分光感度特性
外形寸法図 (単位: mm)
関連ドキュメント
