低バイアス電圧 (VR=2 V)で1 GHzを超える高速応答を実現したフォトダイオードです。低容量 (1 pF以下)のため、高速トランスインピーダンスアンプとの組み合わせに適しています。
|逆電圧 max.||20 V|

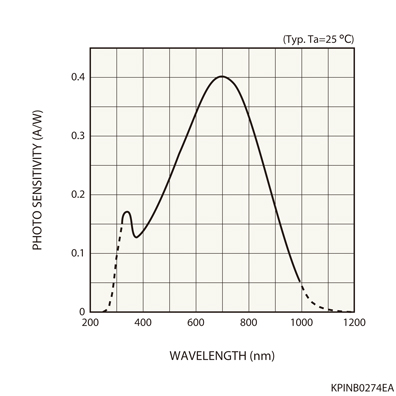

|最大感度波長 typ.||700 nm|
|受光感度 typ.||0.25 A/W|
|暗電流 max.||100 pA|
|遮断周波数 typ.||2000 MHz|
|端子間容量 typ.||0.5 pF|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=850 nm, 暗電流: VR=2 V, 遮断周波数: VR=2 V, 端子間容量: VR=2 V, f=1 MHz|
