Si PINフォトダイオード
S9195
紫色レーザ用フォトダイオード
S9195は、紫色レーザの発光波長域における感度を向上させたSi PINフォトダイオードです。大面積ながら高速応答も実現し ています。
■特長
・高感度: 0.28 A/W Typ. (λ=405 nm)
・高速応答: 50 MHz Typ. (VR=10 V)
・受光面サイズ: 5.0 × 5.0 mm
・TO-8メタルパッケージ
| 受光面サイズ | 5 × 5 mm |
|---|---|
| 素子数 | 1 |
| パッケージ | メタル |
| パッケージカテゴリ | TO-8 |
| 冷却 | 非冷却 |
| 逆電圧 max. | 20 V |
| 感度波長範囲 | 320～1000 nm |
| 最大感度波長 typ. | 840 nm |
| 受光感度 typ. | 0.28 A/W |
| 暗電流 max. | 5000 pA |
| 遮断周波数 typ. | 50 MHz |
| 端子間容量 typ. | 60 pF |
| 雑音等価電力 typ. | 2.5×10-14 W/Hz1/2 |
| 測定条件 | 指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=405 nm, 暗電流: VR=10 V, 遮断周波数: VR=10 V, λ=405 nm, 端子間容量: VR=10 V, f=1 MHz, 雑音等価電力: VR=10 V, λ=λp |

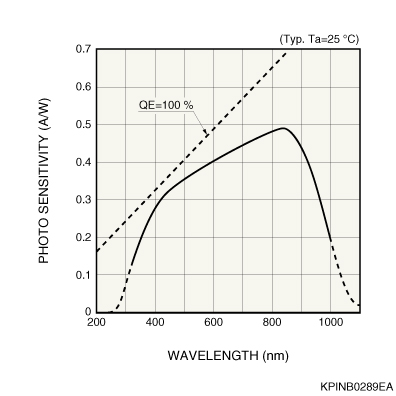

分光感度特性
外形寸法図 (単位: mm)
