微弱発光計数装置
微弱発光計数装置は測定系のセットアップに要する手間を省き、シングルフォトンカウンティング方式による微弱発光計測を手軽に行うことができる装置です。測定対象物とコンピュータをご用意いただければ、USBインターフェースによるプラグ・アンド・プレイにより簡単に計測を開始できます。
また、構成品(別売)を組み替えていただくことにより、さまざまな計測に対応可能です。
項目 | 内容・値 | 単位 | |
---|---|---|---|
検出方法 | フォトンカウンティング方式 | - | |
感度波長範囲 | 300 ~ 650 | nm | |
光電面サイズ | φ22 | mm | |
最大計数率 | 3 × 106 | s-1 | |
カウンタゲート時間 | 0.001 ~ 10(1, 2, 5 Stepで可変) | s | |
ダークカウント (Typ. at +20 ℃) | 50 | s-1 | |
カウンタ容量 | 32 bit/ゲート | - | |
トリガ部 | トリガ信号入力方式 | 外部トリガ、ソフトウエアトリガ | - |
トリガ信号レベル | TTL正論理 / 負論理 (切り替え) | - | |
トリガ信号パルス幅 | 100 ns以上 | - | |
入力電圧 (DC) | +7(付属ACアダプタから供給) | V | |
付属ACアダプタ入力電圧 (AC) | 100 V ~ 240 V(100 V系/200 V系自動切替)、単相50 Hz/60 Hz | - | |
動作周囲温度 | +5 ~ +40 | ℃ | |
動作周囲湿度 | 80以下(結露なきこと) | % | |
保存温度 | 0 ~ +50 | ℃ | |
保存湿度 | 85以下(結露なきこと) | % | |
対応OS | Windows® 10 Pro / 11 Pro | - | |
インターフェース | USB 1.1 | - |
付属品:●CD-ROM(取扱説明書、ドライバ、DLL、制御用ソフトウエア) ●USBケーブル(2.0 m) ●ACアダプタ ●外部トリガ用ケーブル(1.5 m)

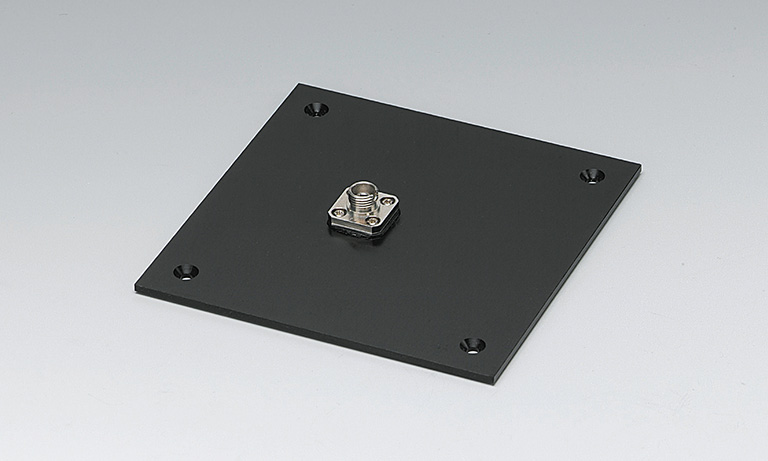

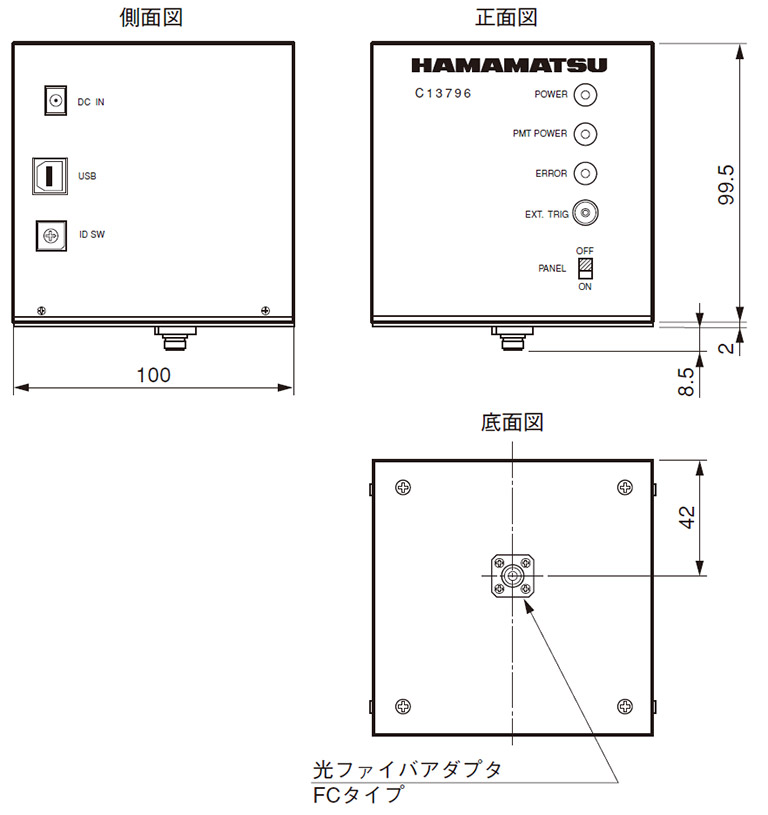

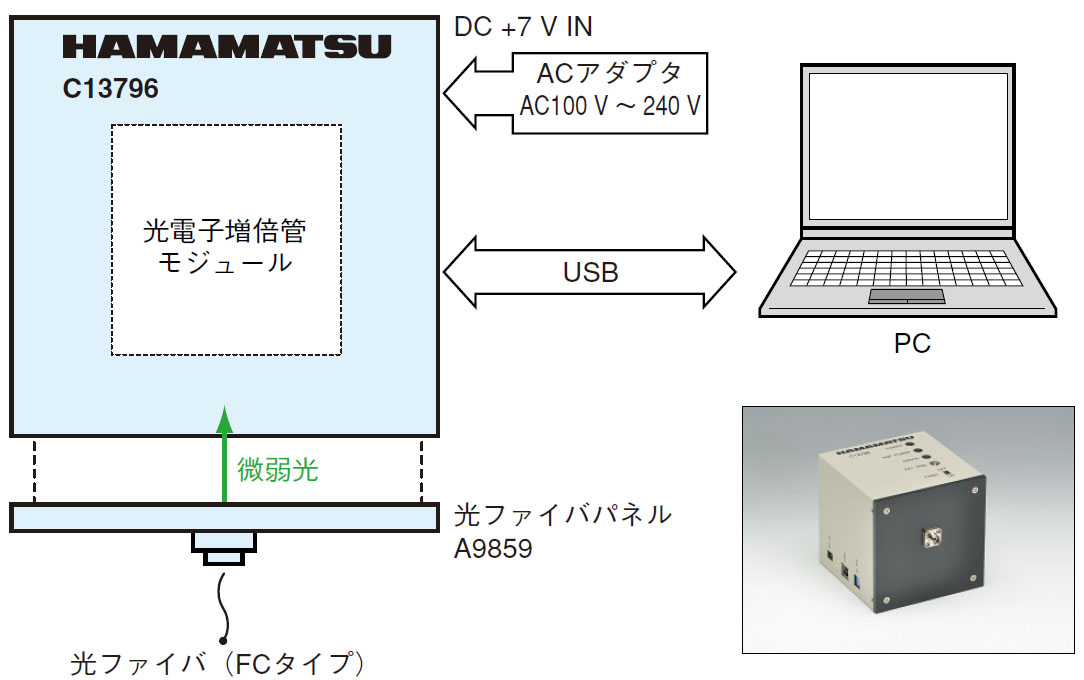

項目 | 内容・値 | 単位 |
---|---|---|
光ファイバ用アダプタ | FCタイプ | - |
光電面距離 | 15.0(ファイバ端より) | mm |
質量 | 約1.1 | kg |

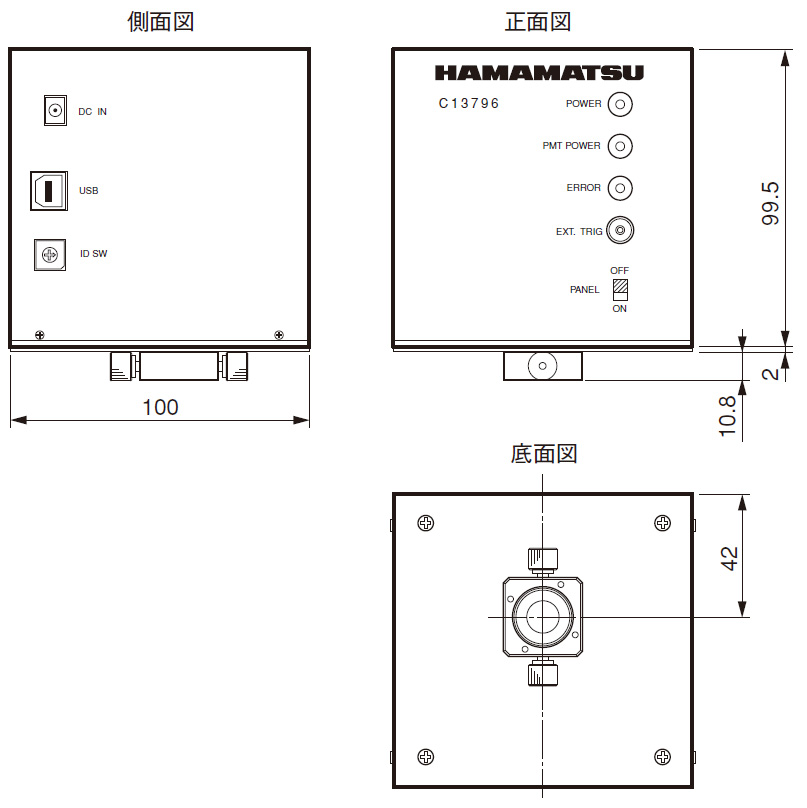

項目 | 内容・値 | 単位 |
---|---|---|
適合オプティカルブロック | V溝タイプ | - |
光電面距離 | 17.3 | mm |
質量 | 約1.1 | kg |

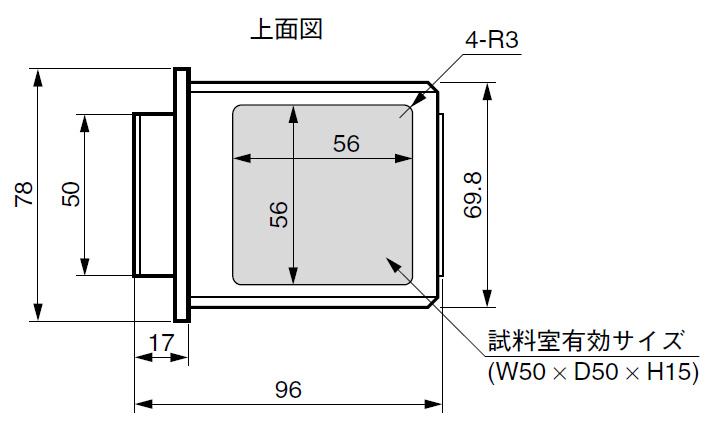

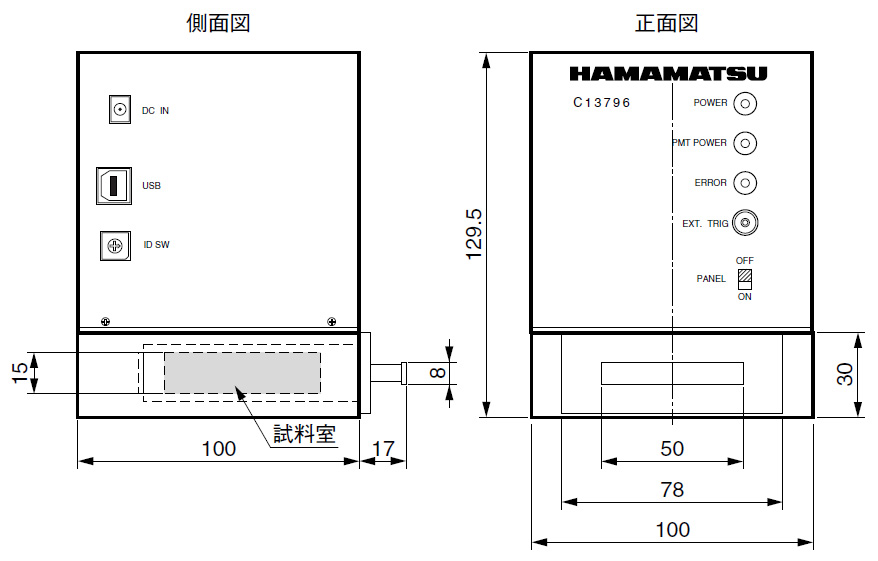

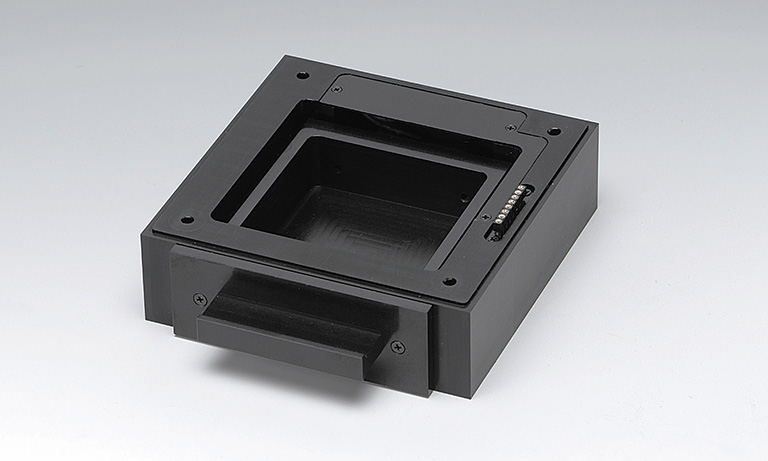

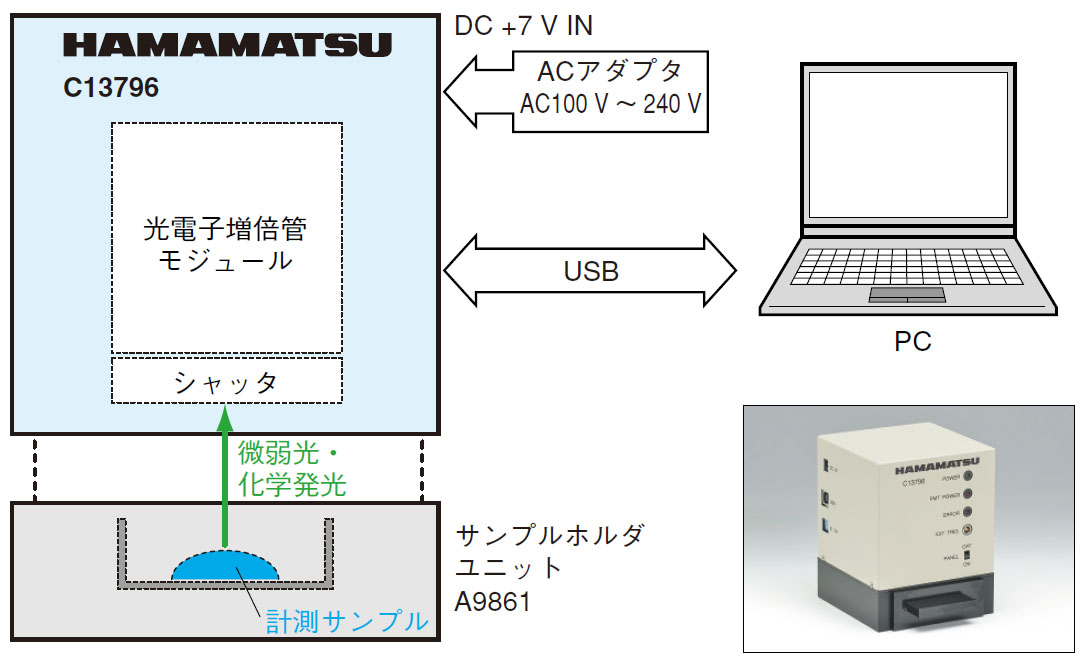

項目 | 内容・値 | 単位 |
---|---|---|
試料室有効サイズ (W × D × H) | 50 × 50 × 15 | mm |
光電面距離 | 26.5(試料室底部より) | mm |
質量 | 約1.4 | kg |

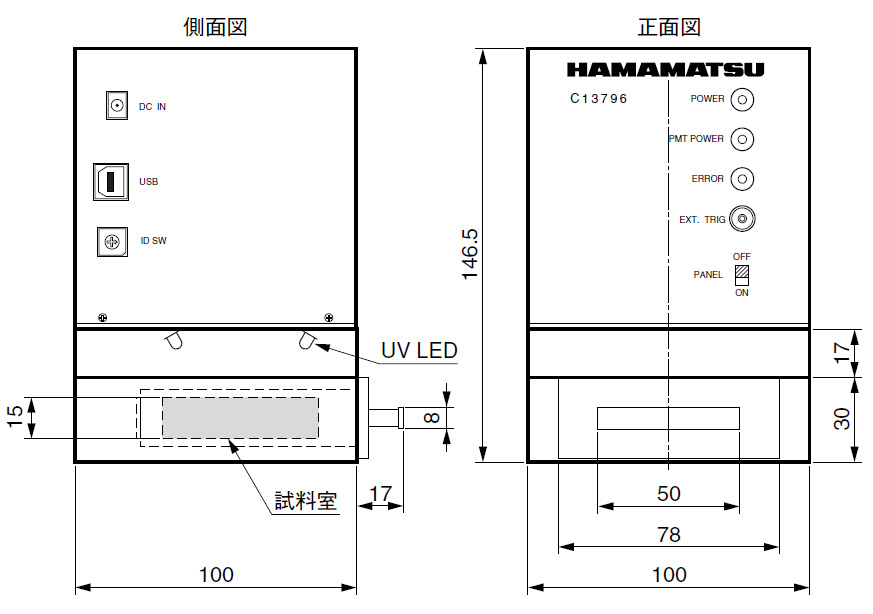

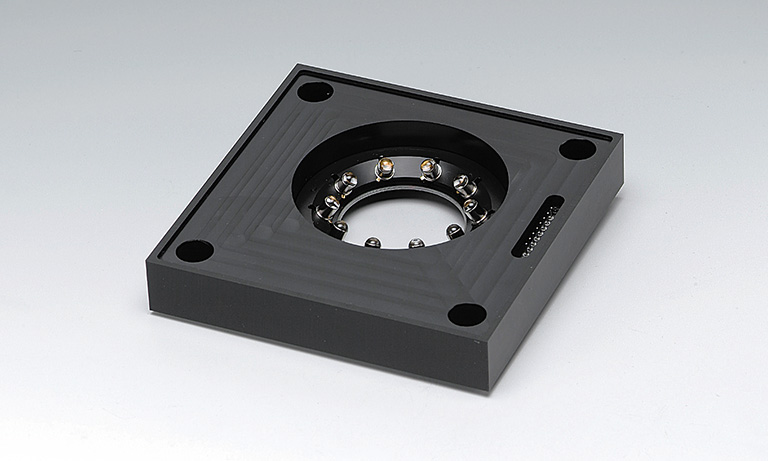

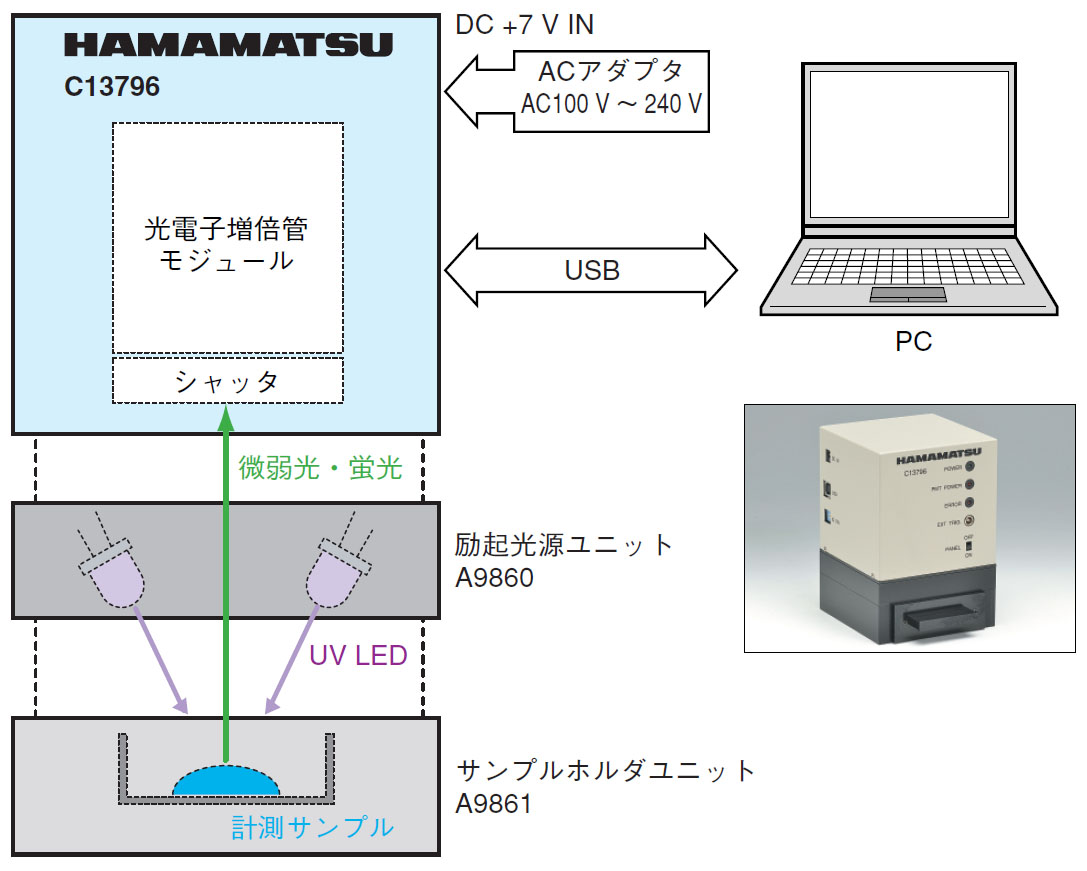

項目 | 内容・値 | 単位 | |
---|---|---|---|
励起光源 (UV LED) | 波長・出力 | 375 nm・10 mW/cm2 | - |
照射時間 | 0.1 ~ 3600 | s | |
照射エリア | φ10(試料室中央部) | mm | |
試料室有効サイズ (W × D × H) | 50 × 50 × 15 | mm | |
光電面距離 | 43.5(試料室底部より) | mm | |
質量 | 約1.6 | kg |

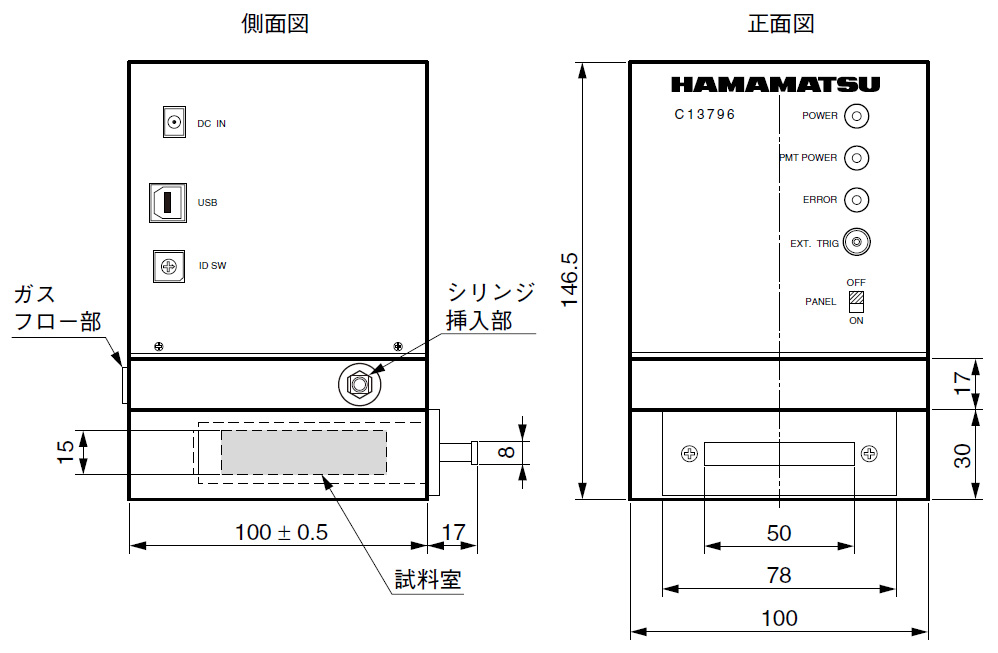

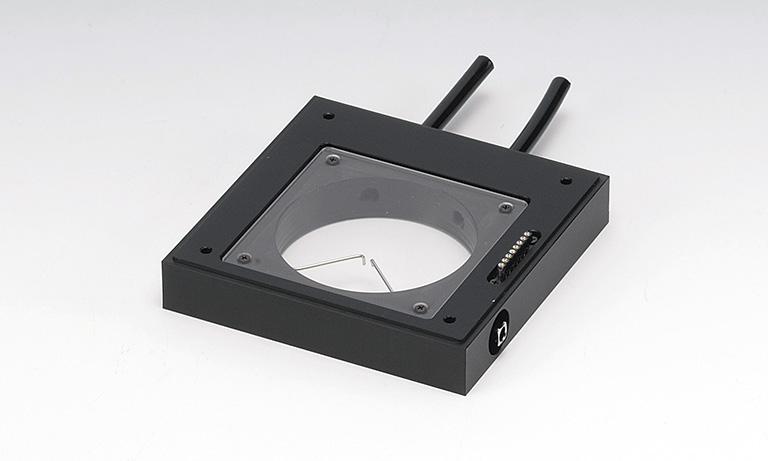

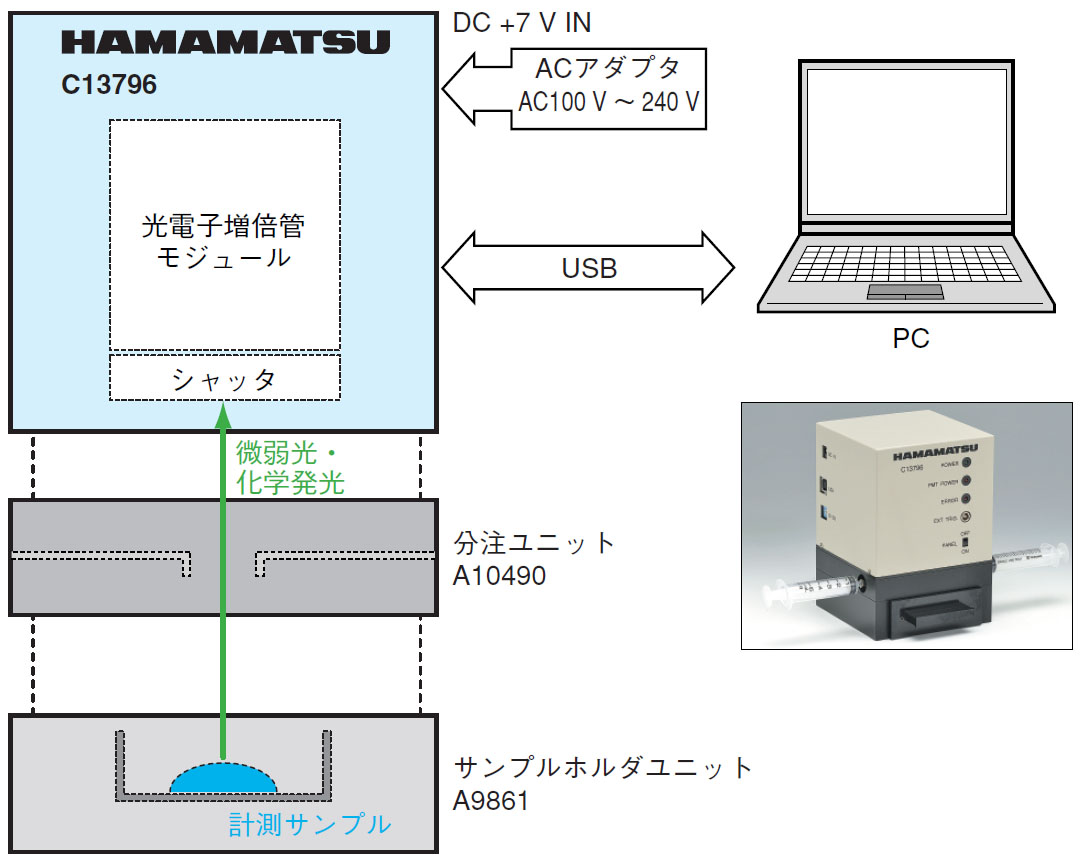

項目 | 内容・値 | 単位 |
---|---|---|
対応シリンジ容量 | 5(テルモシリンジ®) *1 | ml |
ニードルサイズ | 外径 φ1 mm、内径 φ0.6 mm | - |
推奨ガスフローチューブ | 外径 φ6 mm(遮光のため黒色チューブをお勧めします) | - |
光電面距離 | 43.5 | mm |
質量 | 約1.6 | kg |
NOTE: *1 お客様にてご用意ください。

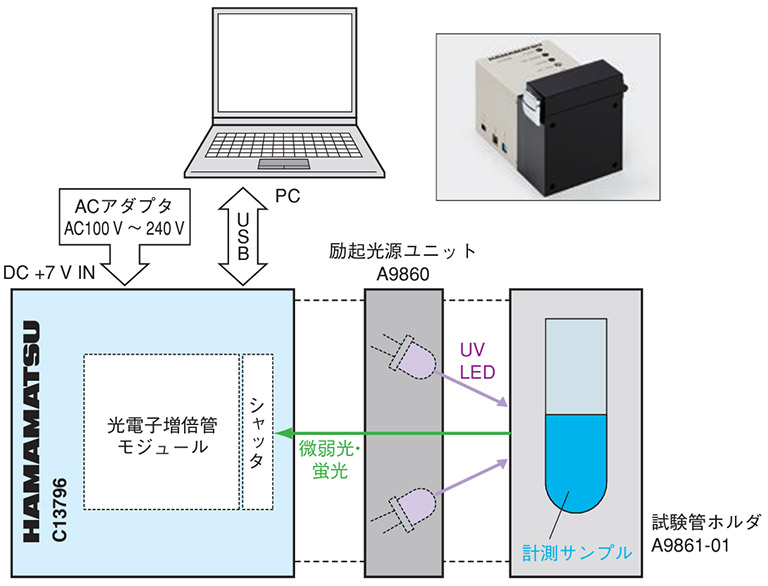

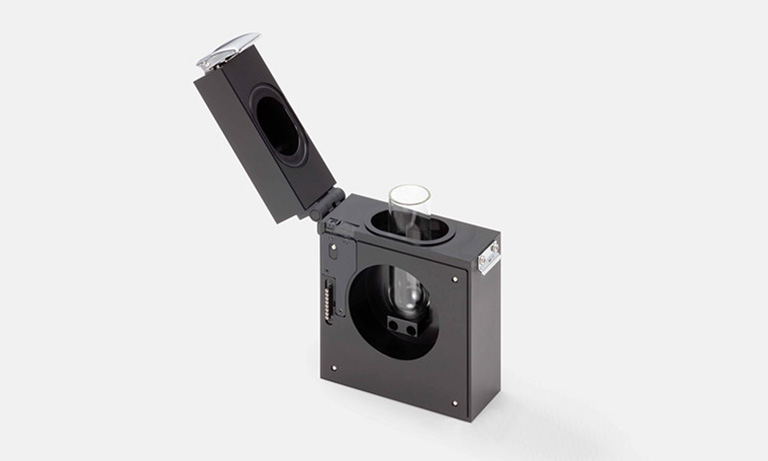

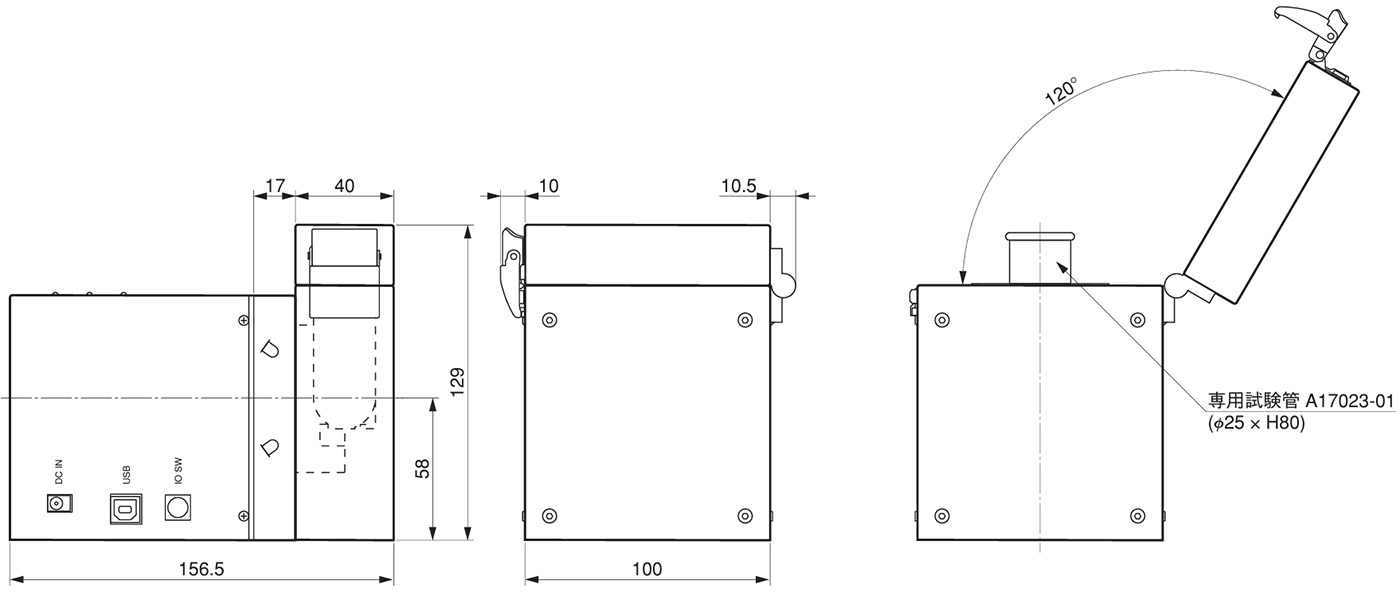

項目 | 内容・値 | 単位 | |
---|---|---|---|
励起光源 (UV LED) | 波長・出力 | 375 nm・10 mW/cm² | - |
照射時間 | 0.1 ~ 3600 | s | |
照射エリア | φ10 (試験管中心部) | mm | |
収納可能試験管サイズ | φ25.4 x 80 (H) | mm | |
最大開き角 | 120 | ° | |
光電面距離 | 41.5 (試験管中心部) | mm | |
質量 | 約1.8 | kg |

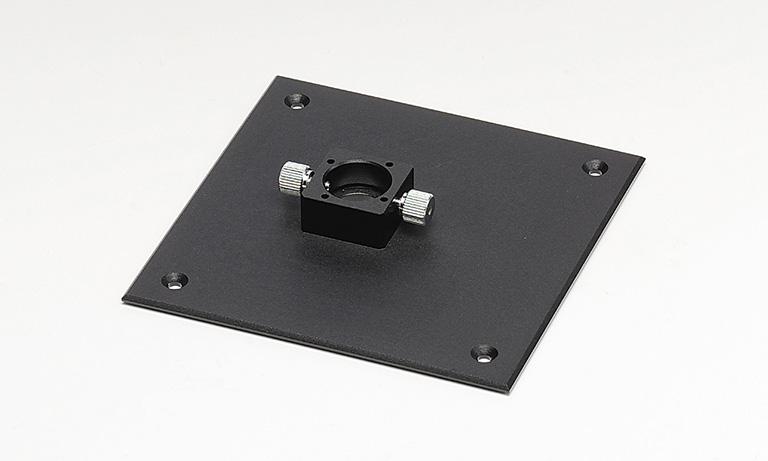

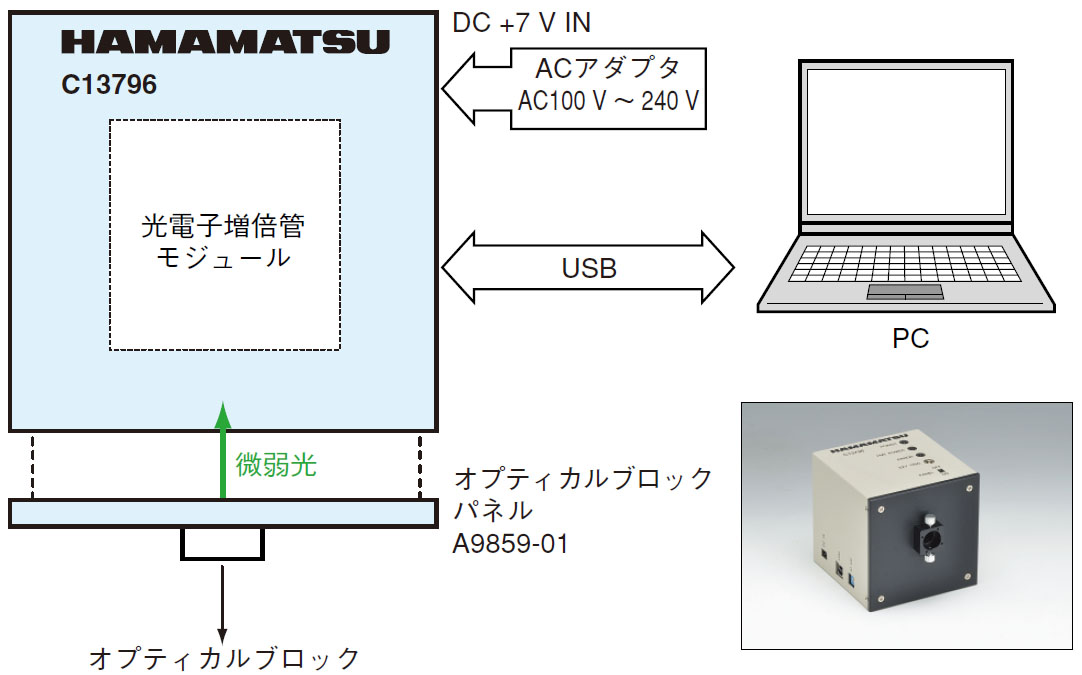

※ オプティカルブロックパネルは、各種オプティカルブロックとの組み合わせが可能です。 オプティカルブロックとは微弱光計測を考慮して設計された、バンドパスフィルタなどの光学部品を組み込むことができるブロックです。光学部品を簡単に配置でき、遮光性に優れ、各ブロックを自由に組み合わせることが可能です。 詳細はオプティカルブロックのウェブサイトをご参照ください。
オプティカルブロック ウェブサイト
