|感度波長 (Short)||230 nm|
|感度波長 (Long)||700 nm|
|感度波長 (Peak)||400 nm|

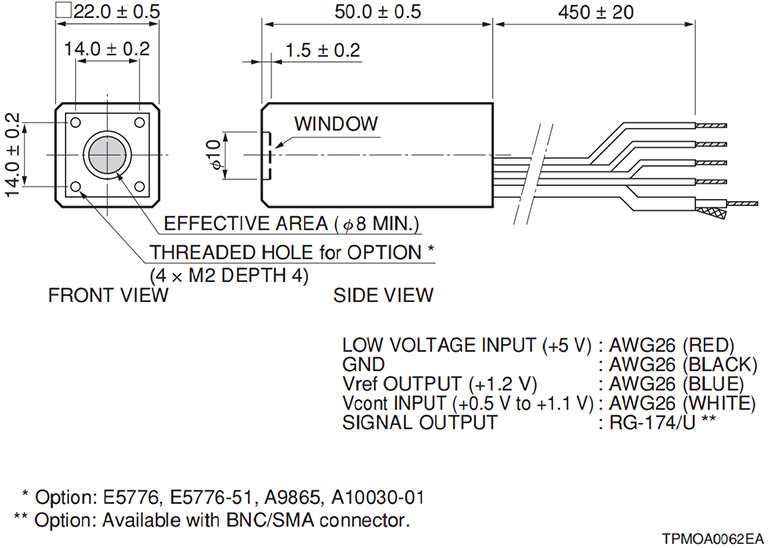

|外形寸法 (W x H x D)||50.0 x 22.0 x 22.0 mm|
|[陰極特性] ルーメン感度 Min.||100 μA/lm|
|[陰極特性] ルーメン感度 Typ.||135 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||15.5|
|[陰極特性] 放射感度 Typ.||130 mA/W|
|[陽極特性] ルーメン感度 Min.||100 A/lm|
|[陽極特性] ルーメン感度 Typ.||270 A/lm|
|[陽極特性] 放射感度 Typ.||2.6 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||1 nA|
|[陽極特性] 暗電流(30分後) Max.||10 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.57 ns|
|リップルノイズ （peak to peak） Max.||0.1 mV|
|セトリングタイム Max.||10 s|
