|受光面サイズ||18 x 18 mm|
|感度波長 (Short)||300 nm|
|感度波長 (Long)||700 nm|
|感度波長 (Peak)||420 nm|

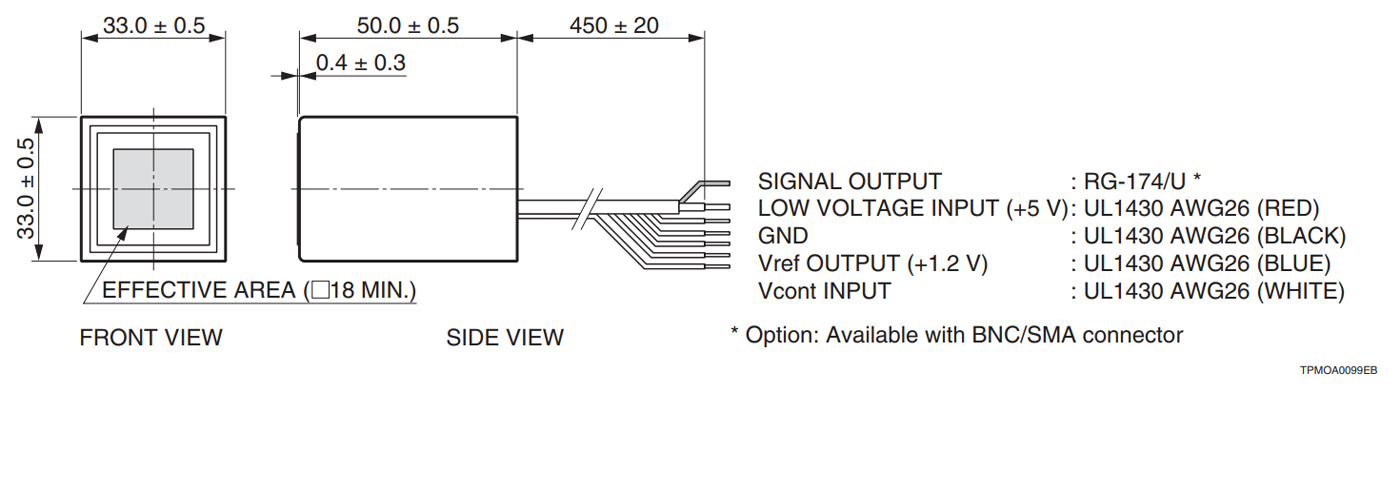

|外形寸法 (W x H x D)||33.0 x 33.0 x 50.0 mm|
|[陰極特性] ルーメン感度 Min.||120 μA/lm|
|[陰極特性] ルーメン感度 Typ.||160 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||14|
|[陰極特性] 放射感度 Typ.||125 mA/W|
|[陽極特性] ルーメン感度 Min.||80 A/lm|
|[陽極特性] ルーメン感度 Typ.||320 A/lm|
|[陽極特性] 放射感度 Typ.||2.5 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||2 nA|
|[陽極特性] 暗電流(30分後) Max.||20 nA|
|[時間特性] 上昇時間 (Tr) Typ.||1.6 ns|
|リップルノイズ （peak to peak） Max.||0.5 mV|
|セトリングタイム Max.||10 s|
