|感度波長 (Short)||300 nm|
|感度波長 (Long)||650 nm|
|感度波長 (Peak)||420 nm|

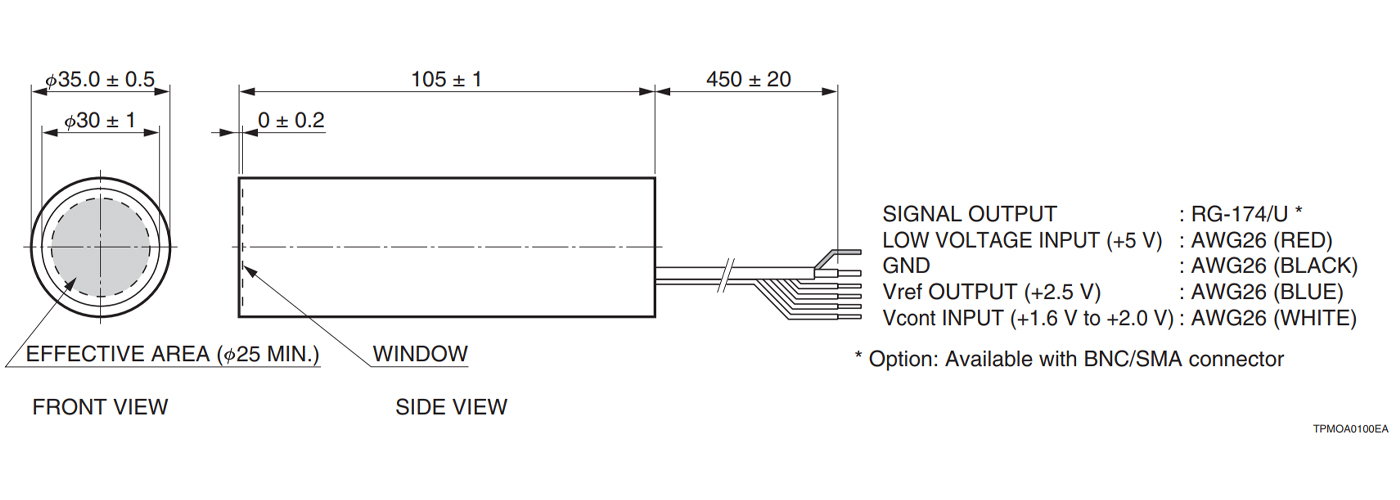

|外形寸法 (W x H x D)||φ35 x 105 mm|
|[陰極特性] ルーメン感度 Min.||70 μA/lm|
|[陰極特性] ルーメン感度 Typ.||95 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||10|
|[陰極特性] 放射感度 Typ.||80 mA/W|
|[陽極特性] ルーメン感度 Min.||0.1 A/lm|
|[陽極特性] ルーメン感度 Typ.||0.8 A/lm|
|[陽極特性] 放射感度 Typ.||6.7 x 102 A/W|
|[陽極特性] 暗電流(30分後) Typ.||0.1 nA|
|[陽極特性] 暗電流(30分後) Max.||1 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.35 ns|
|リップルノイズ （peak to peak） Max.||0.1 mV|
|セトリングタイム Max.||10 s|
