H14600 シリーズ : ピン出力タイプ
H14601 シリーズ : ケーブル出力タイプ
|感度波長 (Short)||300 nm|
|感度波長 (Long)||650 nm|
|感度波長 (Peak)||400 nm|

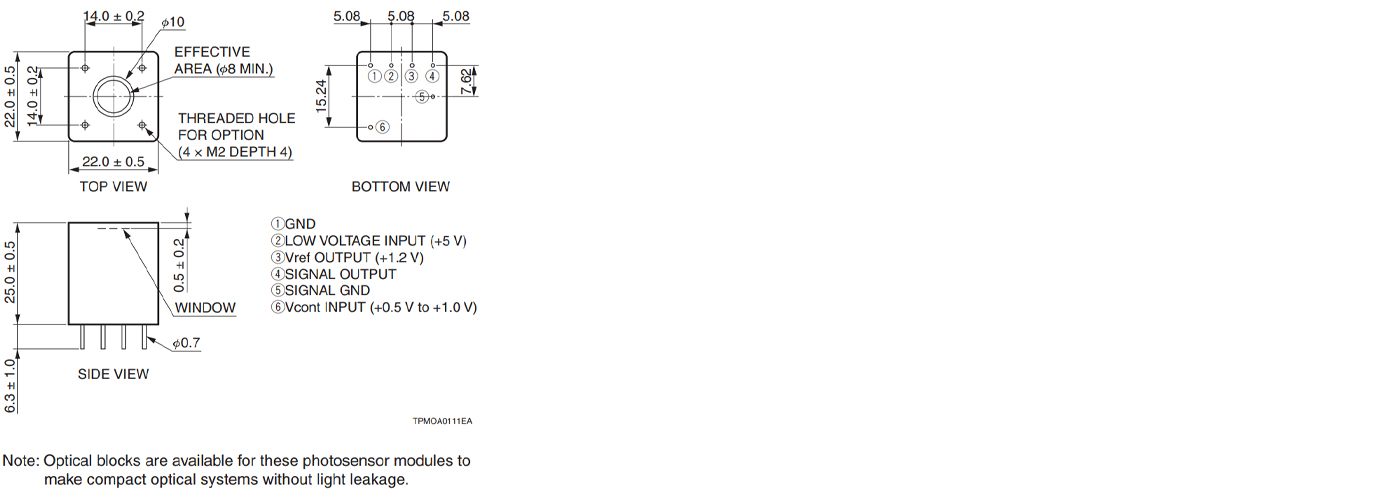

|外形寸法 (W x H x D)||22.0 x 25.0 x 22.0 mm|
|[陰極特性] ルーメン感度 Min.||100 μA/lm|
|[陰極特性] ルーメン感度 Typ.||135 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||14.5|
|[陰極特性] 放射感度 Typ.||130 mA/W|
|[陽極特性] ルーメン感度 Min.||40 A/lm|
|[陽極特性] ルーメン感度 Typ.||135 A/lm|
|[陽極特性] 放射感度 Typ.||1.3 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||0.5 nA|
|[陽極特性] 暗電流(30分後) Max.||5 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.6 ns|
|リップルノイズ （peak to peak） Max.||0.2 mV|
|セトリングタイム Max.||10 s|
