ワイドダイナミックレンジ光電子増倍管モジュール
H13126-01

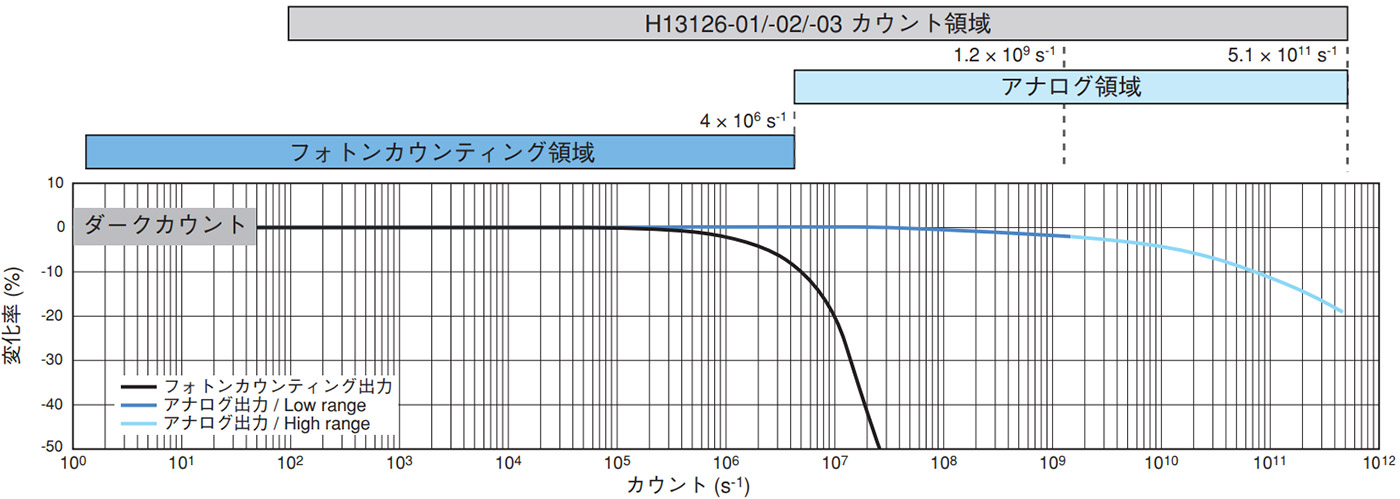

感度波長範囲 300 nm ～ 650 nm、周波数帯域 DC ～ 20 MHz のローレンジとハイレンジのアナログ 2 出力とフォトンカウンティング 1 出力の 3 系統を同時出力し 10 桁のワイドダイナミックレンジ、高リニアリティ、高圧電源を内蔵している光電子増倍管モジュールです。
特長
- 最大カウント周波数： 5 x 10¹¹ s⁻¹ 以上
- 周波数帯域： DC ～ 20 MHz
- 小型
- 低ダークカウント
仕様
| 項目 | 値 | 単位 | ||
|---|---|---|---|---|
| 入力電圧 | ±15 | V | ||
| 最大入力電流 (at ±15 V) | +200 / -50 | mA | ||
| PMT | 有効光電面サイズ | Φ22 | mm | |
| 感度波長範囲 | 300 ～ 650 | nm | ||
| 最大感度波長 | 375 | nm | ||
計数感度 標準値 |
200 nm | - | s⁻¹･pW⁻¹ | |
| 300 nm | 1.3 x 10⁵ | |||
| 400 nm | 3.1 x 10⁵ | |||
| 500 nm | 1.9 x 10⁵ | |||
| 600 nm | 4.8 x 10⁴ | |||
| フォトンカウンティング出力 | カウントリニアリティ | 5 x 10⁶ | s⁻¹ | |
| ダークカウント *¹ | 標準値 | 50 | s⁻¹ | |
| 出力パルス幅 | 8 | ns | ||
| 出力パルス波高 | 2.5 | V | ||
| 推奨負荷抵抗 | 50 | Ω | ||
Low range アナログ (アンプ) 出力 |
カウント - アナログ変換係数 | 1 V / 4 x 10⁸ s⁻¹ | - | |
| 周波数帯域 | DC ～ 20 | MHz | ||
| 最大出力信号 | +3 (負荷抵抗 1 kΩ時) | V | ||
| 出力オフセット | ±1 | mV | ||
| DC リニアリティ *² | ±2.5 | % | ||
| 出力インピーダンス | 50 | Ω | ||
High range アナログ (アンプ) 出力 |
カウント - アナログ変換係数 | 1 V / 1.7 x 10¹¹ s⁻¹ | - | |
| 周波数帯域 | DC ～ 20 | MHz | ||
| 最大出力信号 *³ | +3 (負荷抵抗 1 kΩ時) | V | ||
| 出力オフセット | ±1 | mV | ||
| DC リニアリティ *² | ±20 | % | ||
| 出力インピーダンス | 50 | Ω | ||
| 動作周囲温度 *⁴ | +5 ～ +40 | ℃ | ||
| 保存温度 *⁴ | -20 ～ +50 | ℃ | ||
| 質量 | 400 | g | ||
| ケーブル長 | 1000 | mm | ||
*¹ 暗中にて 3 h 放置後測定
*² フォトンカウンティングとアナログ出力トータル 10 桁の直線性は ±20 % 以内
*³ 40 mV以上の時はパルス出力のみ
*⁴ 結露なきこと

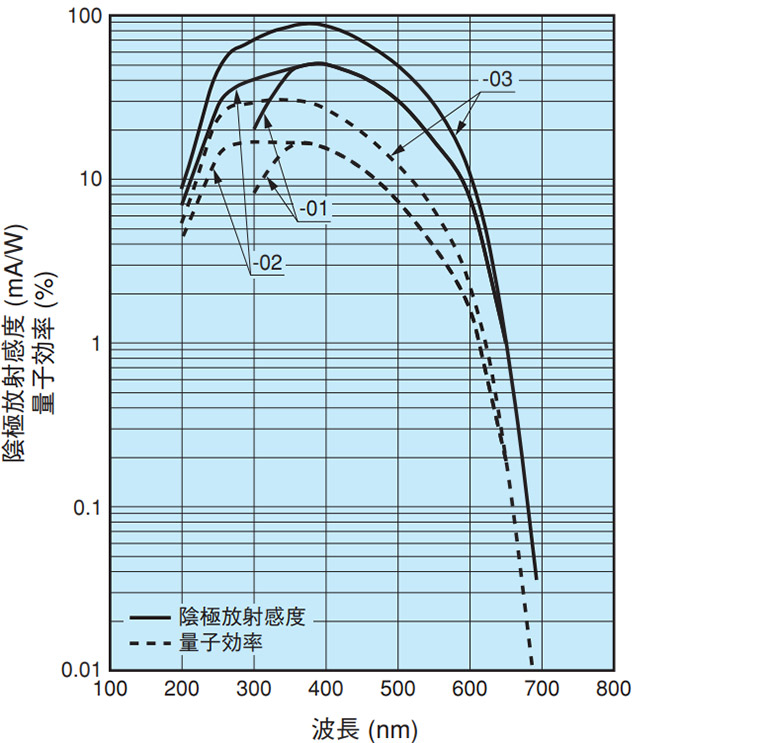

分光感度特性

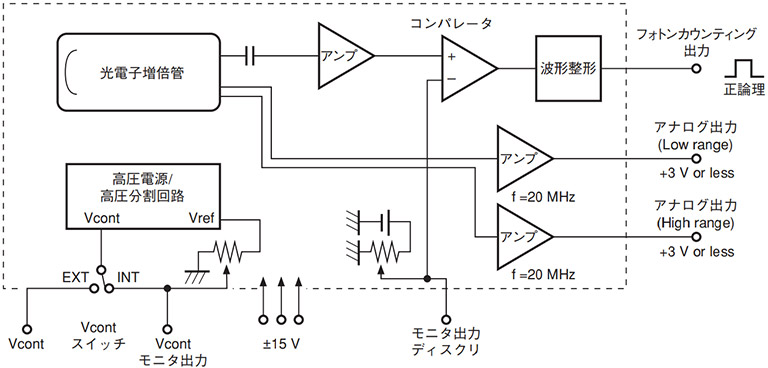

構成図
測定領域

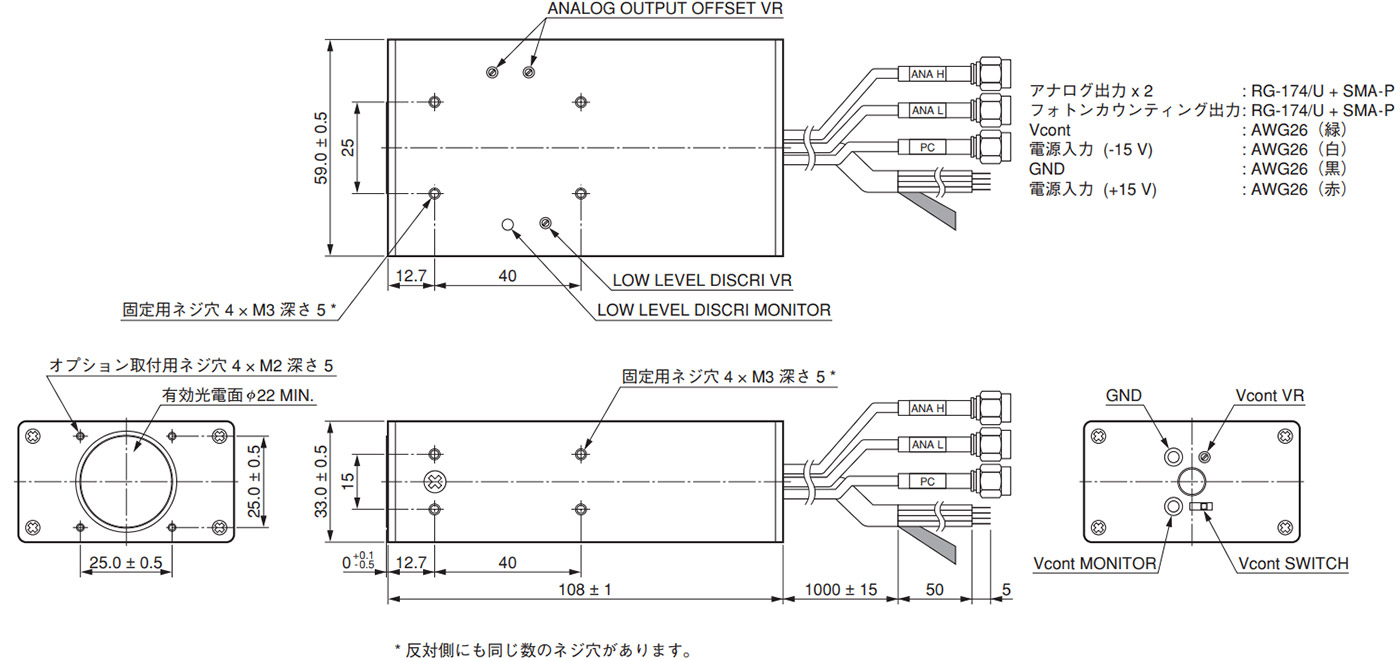

外形寸法図（単位：mm）
