|感度波長 (Short)||230 nm|
|感度波長 (Long)||700 nm|
|感度波長 (Peak)||400 nm|

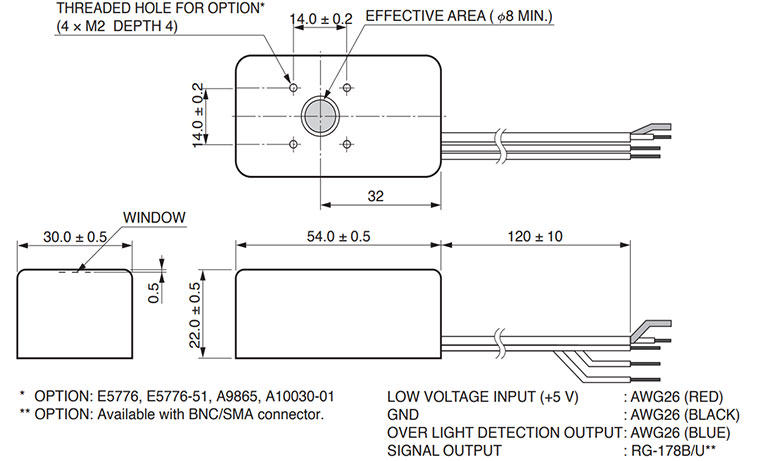

|外形寸法 (W x H x D)||30.0 x 22.0 x 54.0 mm|
|計数感度 at 300 nm Typ.||3.9 x 105 s-1・pW-1|
|計数感度 at 400 nm Typ.||6.1 x 105 s-1・pW-1|
|計数感度 at 500 nm Typ.||4.6 x 105 s-1・pW-1|
|計数感度 at 600 nm Typ.||1.3 x 105 s-1・pW-1|
|計数感度 at 700 nm Typ.||9.1 x 103 s-1・pW-1|
|カウントリニアリティ||5.0 x 106 s-1|
|ダークカウント Typ.||50 s-1|
|ダークカウント Max.||100 s-1|
|出力パルス波高 Min.||2 V|
|出力パルス波高 Typ.||2.2 V|
