|感度波長 (Short)||300 nm|
|感度波長 (Long)||850 nm|
|感度波長 (Peak)||420 nm|

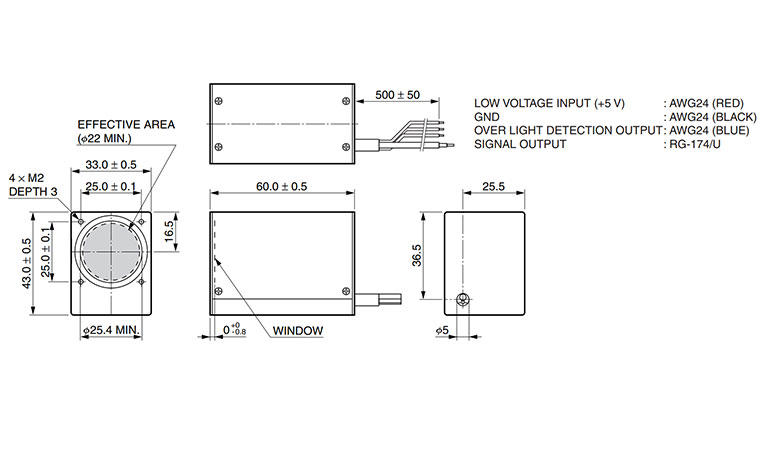

|外形寸法 (W x H x D)||33.0 x 43.0 x 60.0 mm|
|計数感度 at 300 nm Typ.||2.1 x 105 s-1・pW-1|
|計数感度 at 400 nm Typ.||2.5 x 105 s-1・pW-1|
|計数感度 at 500 nm Typ.||2.0 x 105 s-1・pW-1|
|計数感度 at 600 nm Typ.||1.3 x 105 s-1・pW-1|
|計数感度 at 700 nm Typ.||7.8 x 104 s-1・pW-1|
|カウントリニアリティ||6.0 x 106 s-1|
|ダークカウント Typ.||5000 s-1|
|ダークカウント Max.||15000 s-1|
|出力パルス波高 Min.||+2.0 (50Ω Load)
+4.0 (Un-terminated) V
