|感度波長 (Short)||230 nm|
|感度波長 (Long)||870 nm|
|感度波長 (Peak)||400 nm|

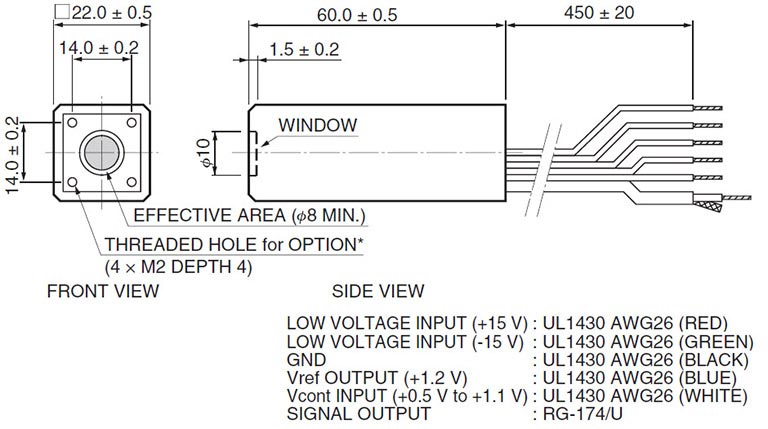

|外形寸法 (W x H x D)||60.0 x 22.0 x 22.0 mm|
|最大入力電流||+11 / -1 mA|
|最大出力信号電圧||+10（負荷抵抗 10 kΩ） V|
|最大コントロール電圧||+1.1（入力インピーダンス30 kΩ） V|
|推奨コントロール電圧調整範囲||+0.5～+1.1（入力インピーダンス30 kΩ） V|
|[陰極特性] ルーメン感度 Min.||100 μA/lm|
|[陰極特性] ルーメン感度 Typ.||200 μA/lm|
|[陰極特性] 赤感度比 Typ.||0.2|
|[陰極特性] 放射感度 Typ.||77 mA/W|
|[陽極特性] ルーメン感度 Min.||1.0 x 108 V/lm|
|[陽極特性] ルーメン感度 Typ.||4.0 x 108 V/lm|
|[陽極特性] 放射感度 Typ.||150 V/nW|
|[陽極特性] 暗中での電圧出力(30分後) Typ.||1 mV|
|[陽極特性] 暗中での電圧出力(30分後) Max.||10 mV|
|出力オフセット電圧 Typ.||±1 mV|
|リップルノイズ （peak to peak） Max.||1 mV|
|セトリングタイム Max.||0.2 s|
