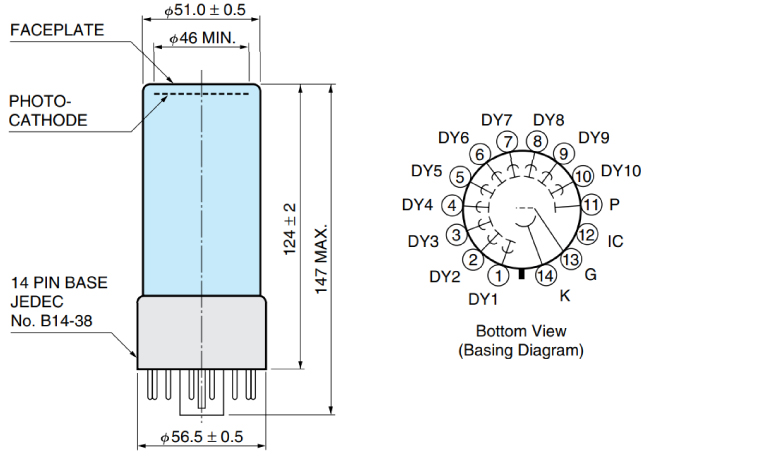

φ51mmヘッドオン型 マルチアルカリ光電面（有効径φ46mm/感度波長範囲300～850nm） 半導体ウエハ欠陥(ゴミ、汚れ、傷等)検査、分光分析装置、X線フィルム読取装置の検出器として使用
|感度波長 (Short)||300 nm|
|感度波長 (Long)||850 nm|
|感度波長 (Peak)||420 nm|
|[最大定格] 陽極－陰極間電圧||1500 V|
|[最大定格] 平均陽極電流||0.3 mA|
|陽極－陰極間 印加電圧||1000 V|
|[陰極特性] ルーメン感度 Min.||100 μA/lm|
|[陰極特性] ルーメン感度 Typ.||150 μA/lm|
|[陰極特性] 赤感度比 （R-68） Typ.||0.2|
|[陰極特性] 放射感度 Typ.||64 mA/W|
|[陽極特性] ルーメン感度 Min.||20 A/lm|
|[陽極特性] ルーメン感度 Typ.||100 A/lm|
|[陽極特性] 放射感度 Typ.||4.3 x 104 A/W|
|[陽極特性] ゲイン Typ.||6.7 x 105|
|[陽極特性] 暗電流(30分後) Typ.||10 nA|
|[陽極特性] 暗電流(30分後) Max.||30 nA|
|[時間特性] 上昇時間 (Tr) Typ.||9 ns|
|[時間特性] 走行時間 (T.T.) Typ.||70 ns|
