一般的に、近赤外域 (905 nm)にピーク発光波長をもつレーザが、LiDARに使われます。遠距離まで精度よく距離測定する場合、近赤外域で感度が高く、アフターパルスが低い光センサが求められます。
このたびリリースしたS15639-1325PSは、近赤外域の波長に対して高い検出効率 (PDE=9%) と、低アフターパルス (1% max.) を実現しています。
・高い検出効率: 9% (λ=905 nm)

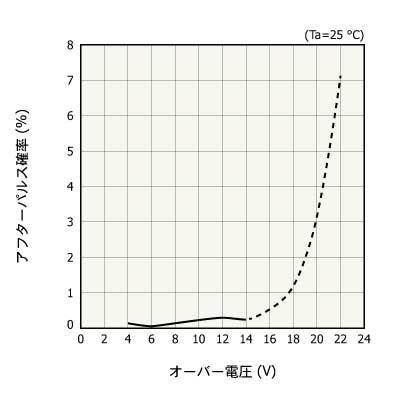

・低アフターパルス: 1% max.
|動作温度||-40 ～ +105||℃|
|保存温度||-40 ～ +125||℃|
|有効受光面サイズ||1.3 × 1.1||mm|

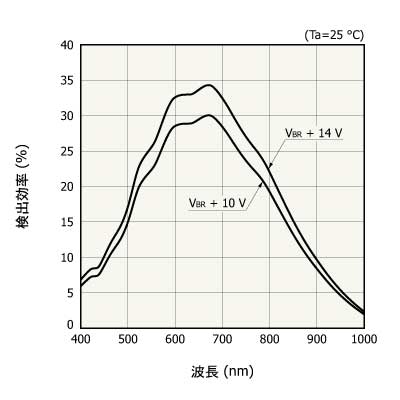

|検出効率 (λ=905 nm)||9 typ.||%|
|増倍率||1.3 × 106 typ.||-|
