EB-ENGINE 低エネルギー電子線照射源

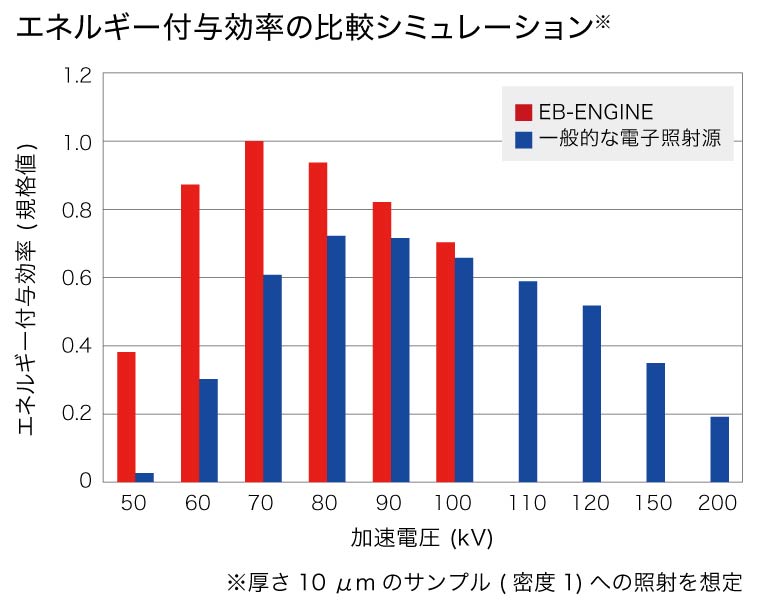

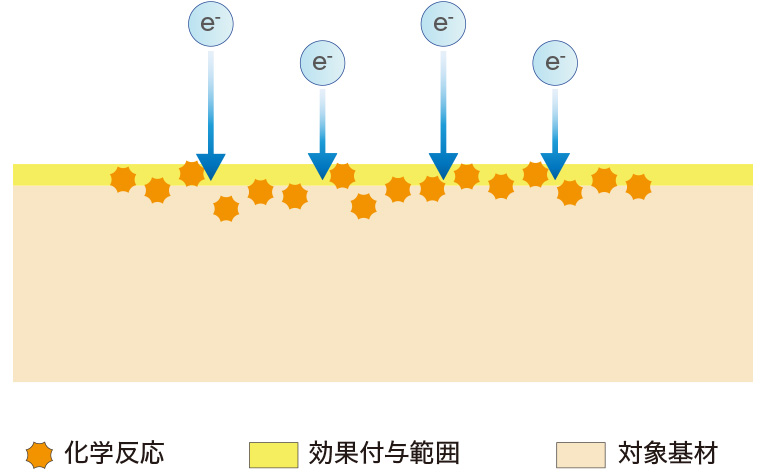

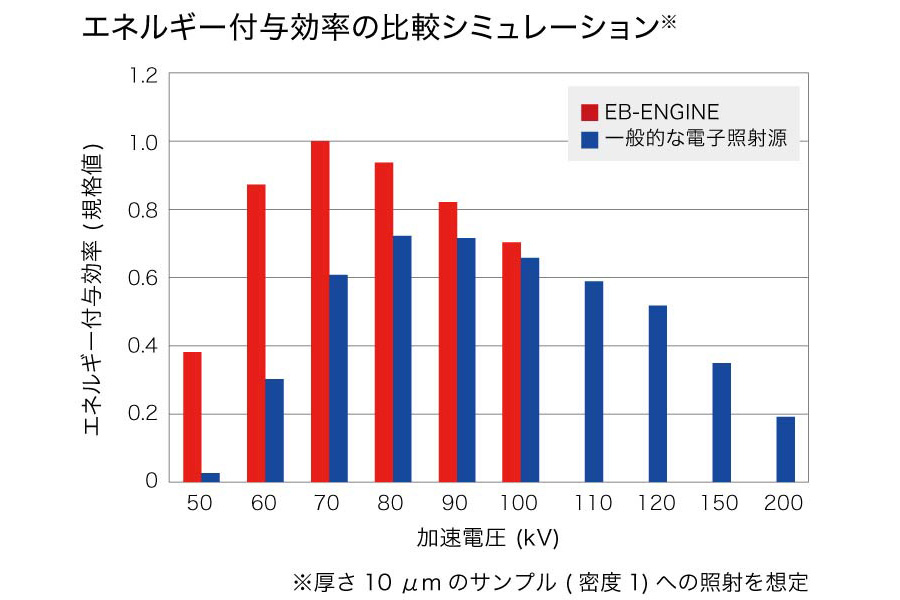

低エネルギー電子線照射源「EB-ENGINE®」L16379 は、加速電圧50 kV の低エネルギー領域に対応し、450 mm の広幅照射が可能な低エネルギー電子線照射源です。電子線エネルギーをサンプルの最表面に効率的に付与することで、深部へのダメージを最小限に抑えつつ、高品質な表面加工・表面処理を実現します。
EB-ENGINEは、浜松ホトニクス株式会社の登録商標です。

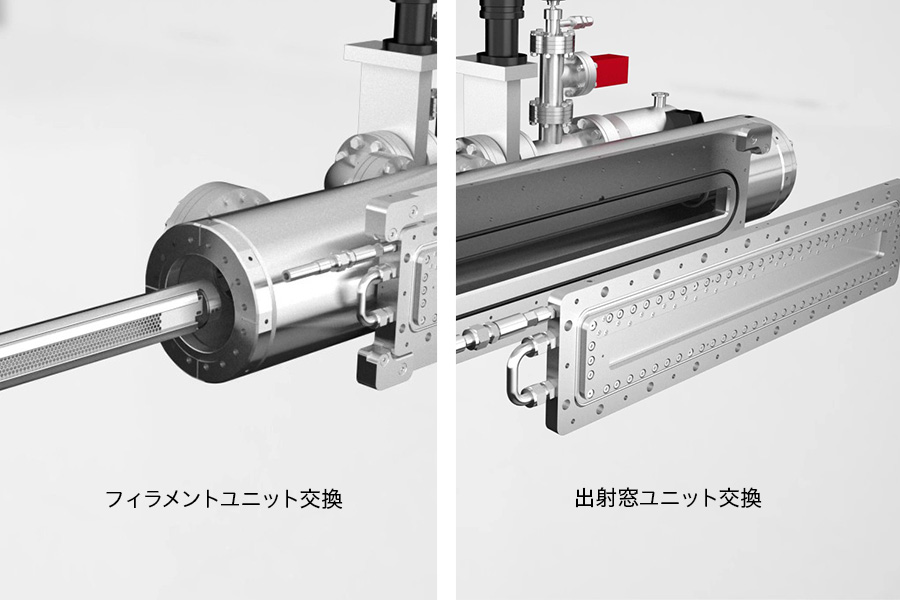

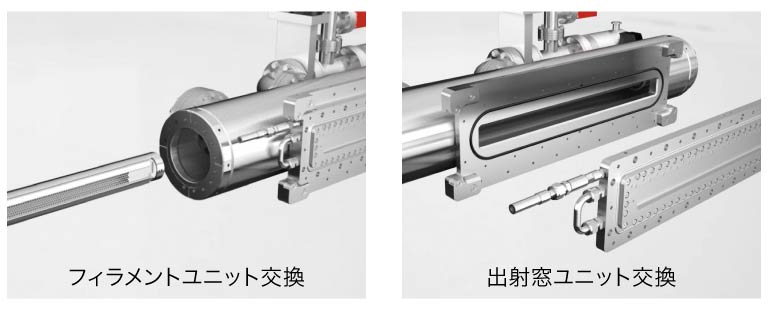

お客様自身で各消耗品ユニットを交換できるため、ダウンタイムの大幅な低減を実現

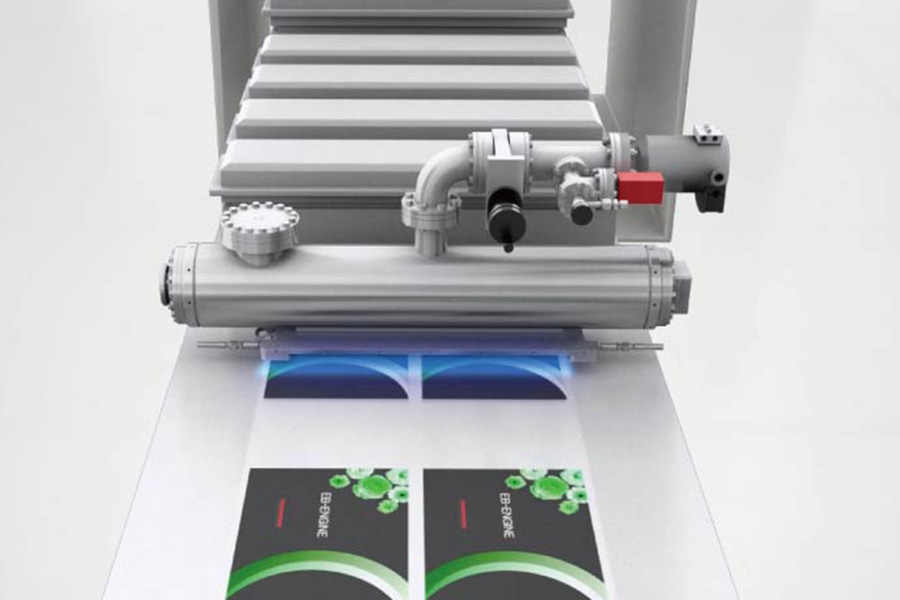

EB-ENGINE を使った表面加工・表面処理は、素材の特性を向上させる「架橋」、インキや塗料などを瞬時に硬化させる「キュアリング」、医療機器や容器の「滅菌」といった加工や処理を短時間で高品質に行うことができます。
電子線を照射していない樹脂は研磨による摩耗の痕がついていますが、照射した樹脂にはほとんど痕がついていません。
電子線の照射前はテープにインキが付着していますが、照射後はインキが硬化し基材に密着したことで、テープに付着しません。
電子線を照射していないシャーレの枯草菌は増殖していますが、照射したシャーレの枯草菌は増殖していません。
提供:一般社団法人 浜松市薬剤師会 浜松環境衛生研究所

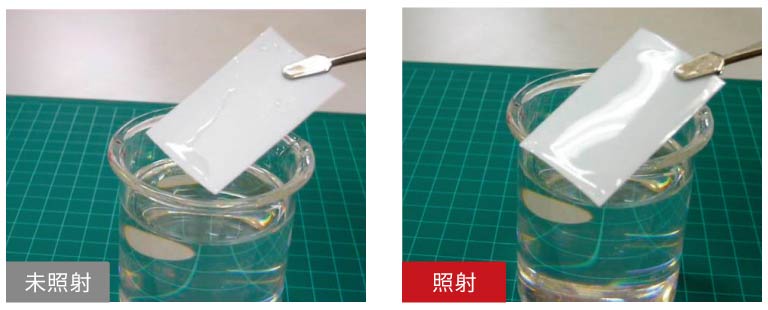

電子線を照射していない樹脂は変化がありませんが、照射した樹脂では光沢が見られ、グラフト重合が進んだことがわかります。
提供 : 大阪大学 産業科学研究所 大島明博 様

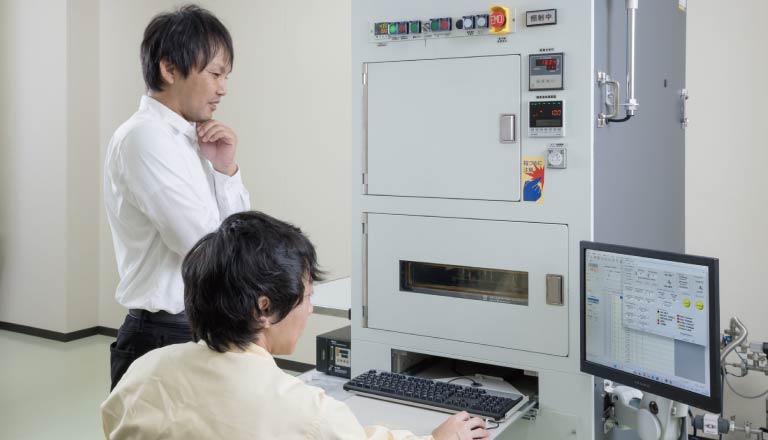

当社エンジニアによる立ち会いデモ実験、サンプル預かりデモ実験を承っております。ご希望の方は専用フォームからお問い合わせください。
| 項目 | 内容 / 値 | 単位 | ||
|---|---|---|---|---|
| 加速電圧 | 50 ~ 100 | kV | ||
| 管電流 | 0.1~50 | mA | ||
| 照射能力 | Typ. | 3000 | kGy ・ m/min | |
| 有効照射幅 | 450 | mm | ||
| 入力電圧 1 | 単相200 V (50 Hz/60 Hz) | ー | ||
| 電力 1 | Max. | 4.4 | kVA | |
| 入力電圧 2 | 三相 (三線式) 200 V (50 Hz/60 Hz) | ー | ||
| 電力 2 | 7.5 | kVA | ||
| 窒素供給による強制空冷方式 | 窒素供給圧力 | 0.1~0.5 | MPa | |
| 窒素供給流量 | 50~70 | L/min | ||
| 必要窒素純度 | Min. | 99.99 | % | |
| 水冷方式 | 必要冷却能力 | Min. | 4.7 | kW |
| 冷却液供給圧力 | 0.1~0.5 | MPa | ||
| 冷却液供給流量 | 2.5~3.0 | L/Min | ||
| 冷却液 | 専用ブライン液 | ー | ||
| 動作 / 保存温度範囲 | +15~+40 / +5~+50 | ℃ | ||
| 動作 / 保存湿度範囲 | 20 % RH ~ 85 % RH (結露なきこと) | ー | ||

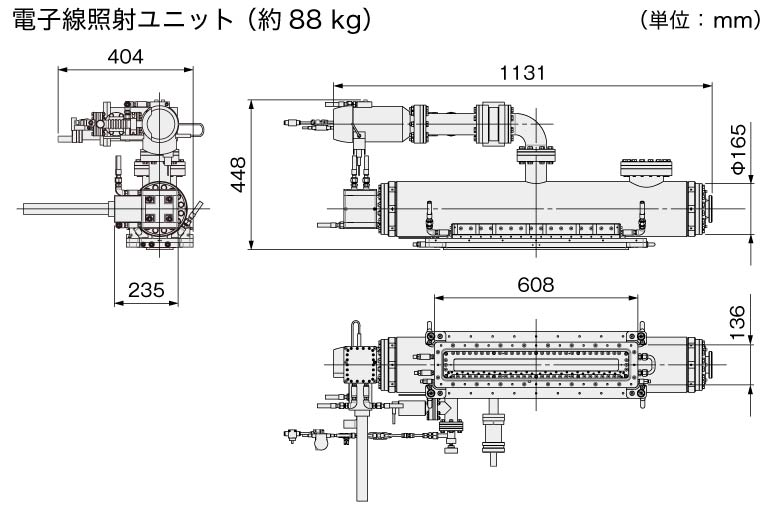

| 外形寸法 (W × H × D) / 質量 | 電子線照射ユニット | 外形寸法図参照 / 88 kg | ー | |
| 高圧電源ユニット | 1270 mm×1200 mm×850 mm / 460 kg | |||
| 制御ユニット | 710 mm×940 mm×620 mm / 115 kg | |||
| 絶縁トランス | 560 mm×760 mm×560 mm / 160 kg | |||
| ロータリーポンプ | 160 mm×400 mm×550 mm / 30 kg | |||

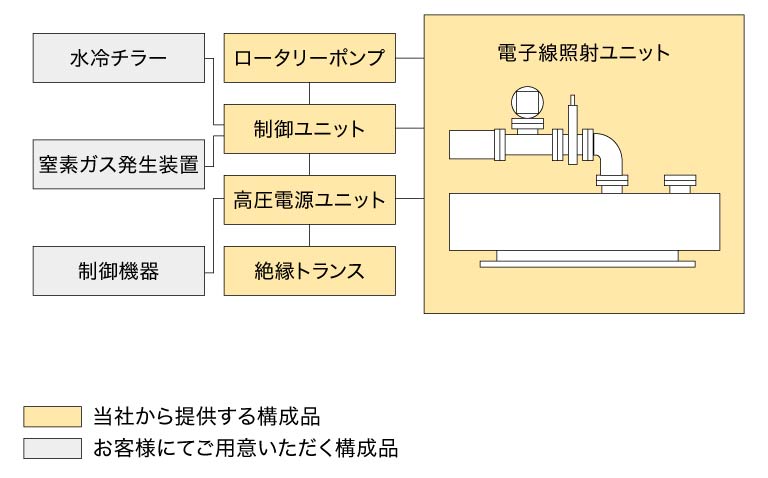

※ 低エネルギー電子線照射源 L16379は、電子線照射ユニット・高圧電源ユニット・制御ユニット・絶縁トランス・ロータリーポンプで構成されています。
