フローセル
J12800-000-A3A
各種の送液用パーツを組み合わせたアッセンブリモデルです。A3Aはフローチャンネルサイズが0.15 mm×0.15 mmのスタンダードタイプです。フローサイトメータをはじめとする各種装置へスムーズに搭載できます。
仕様
| 項目 | J12800-000-XXX | 単位 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| -A3A | -A4A | -A5A | -B3A | -B4A | -B5A | ||||
| フローセル | フローチャンネルサイズ | 0.150 × 0.150 | 0.200 × 0.200 | 0.250 × 0.250 | 0.150 × 0.150 | 0.200 × 0.200 | 0.250 × 0.250 | mm | |
| 有効エリア | 5.0 × 2.0 | Φ2.0 | mm | ||||||
| 素材 | 合成石英 | - | |||||||
| 耐圧性(Max.) | 450 | kPa | |||||||
| アッセンブリ | 推奨シース液フローレート | 7.0 | 13.5 | 19.0 | 7.0 | 13.5 | 19.0 | ml/min | |
| シース液フローレート(Max.) | 9.5 | 15 | 24 | 9.5 | 15 | 24 | ml/min | ||
| 動作シース圧 | 10 ～ 180 | 10 ～ 120 | 10 ～ 100 | 10 ～ 180 | 10 ～ 120 | 10 ～ 100 | kPa | ||
| 耐圧性(Max.) | 450 | kPa | |||||||
| コネクタ | サンプルポート | IDEX P-646 | - | ||||||
| シース液ポート | IDEX P-647 | - | |||||||
| 廃液ポート | IDEX P-646 | - | |||||||
| 逆流ポート | IDEX P-646 | - | |||||||
| サンプル針内径 | 0.15 | mm | |||||||
| 動作周囲温度 | +15 ～ +35 | ℃ | |||||||
| 動作周囲相対湿度 | <85 | ％RH | |||||||
| 保存温度 | 0 ～ +45 | ℃ | |||||||
| 質量 | 60.6 | 60.3 | g | ||||||

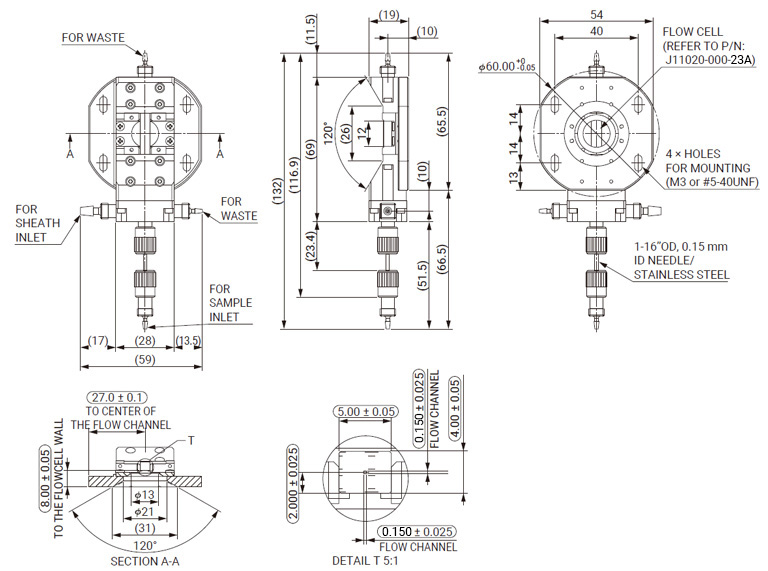

外形寸法図（単位：mm）
